Devicewell 8K/48G SDI Ultra HD Video Series

Posted in Video Matrix

Product description

    DeviceWell 8K SDI signal splitter, based on 8K broadcast grade 8K SDI signal design. The device supports up to four-link 8K SDI signal and is backward compatible with 12G SDI, 6G SDI, 3G SDI, HD SDI and SD SDI. The device has built-in SDI signal equalization, decoder, serial clock recovery and line driver, which can realize 1 4-link 12G-SDI signal input, which can be distributed to 3 4-link 12G-SDI signal output. At the same time, it also supports 4 groups of 1 single-link 12G-SDI signal input, which can be allocated to 4 groups of 3 single-link 12G-SDI signal outputs, and the resolution is downward compatible. The transmission distance of 8K SDI exceeds 30M, the transmission distance of 12G SDI exceeds 75M, the transmission distance of 6G SDI exceeds 100M, and the transmission distance of 3G SDI exceeds 120M. The device adapts to 12G, 6G, 3G, 1.5G and 270M bit rates without additional settings. It can be applied to professional SDI video signals such as UHDTV/FHDTV/HDTV/SDTV, and is especially suitable for broadcast-grade ultra-high-definition digital signals. The equipment is a rack-type structure, which is convenient for users to put into the cabinet for fixed management.

Product Features

◆ 8K/12G/6G/3G/1.5G SDI signal input

◆ 8K/12G/6G/3G/1.5G SDI signal output

◆ Built-in professional equalizer

◆ Built-in clock restorer

◆ Built-in line driver

◆ Adaptive input and output resolution

◆ Dual power supply system

◆ Rack-type structure



Order type

Product model

Function

case type

Power supply

Other

PD2011T

12G SDI Signal distributor (1x3)

2019 version

12V/5V dual power supply

Downward compatible 6G/3G/ 1.5g /270M

PD2011V

12G SDI Signal distributor (1x5)

2019 version

12V/5V dual power supply



PD2017

12G SDI conversion optical signal

2019 version

DC 5V power supply



PD2071

Optical signal to 12G SDI

2019 version

DC 5V power supply



PG9201

12G SDI signal generator

Half 1U

AC-220V power supply

SDI top 12 G

PG9202

12G SDI signal generator

2019 version

AC-DC 12V power supply

SDI top 12 G

PG9203

12G SDI signal generator

1U

AC-220V power supply

SDI top 12 G

FD1021TX

12G SDI conversion optical signal

2019 version

DC 5V power supply



FD1021RX

Optical signal to 12G SDI

2019 version

DC 5V power supply



PD2091D

12G SDI demultiplexer

2019 version

DC 12V power supply

SDI top 12 G

PD2091M

12G SDI multiplexer

2019 version

DC 12V power supply

SDI top 12 G

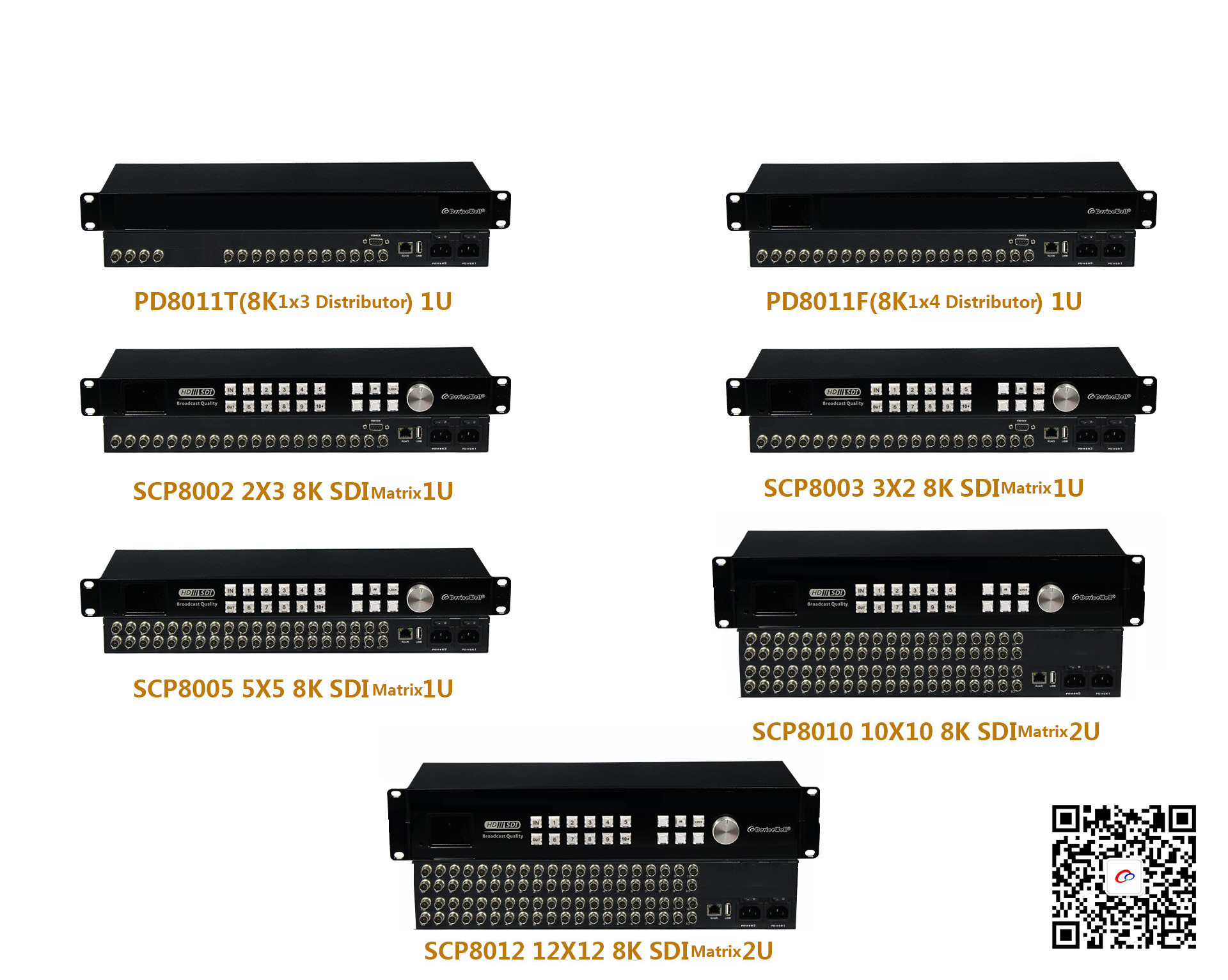

PD8011T

8K  SDI Signal distributor(1x3)

1U

100-240V/AC power supply



PD8011F

8K  SDI Signal distributor(1x5)

1U

100-240V/AC power supply



SCP8002

2X3 8K SDI matrix

1U

100-240V/AC power supply



SCP8003

3X2 8K SDI matrix

1U

100-240V/AC power supply



SCP8005

5X5 8K SDI matrix

1U

100-240V/AC power supply



SCP8010

10X10 8K SDI matrix

2U

100-240V/AC power supply



SCP8012

12X12 8K SDI matrix

2U

100-240V/AC power supply























































































Application  Diagram

SIZE
