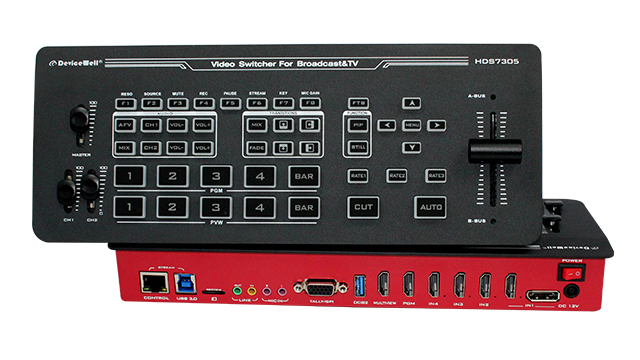

HDS7305(2023ver)The newly HDS7305 2023 switcher adds USB3.0/DCB2/GPI control

HDMI SDI DVI 高清切换台

The HDS7305, a dedicated video switcher for Broadcast & TV, and studio, adopts a portable integrated design, a metal shell, small size and light weight, which can be applied to the video special effect switching requirements of small scenes. The device integrates multiview processor, special effect generator, audio processor, control keyboard and other common switcher components.




HDS7305 complies with SMPTE standard, supports 4-CH HDMI+1-CH DP signal input, a total of 5-CH video signal. Simultaneous output of multiview and PGM signals. HDS7305 supports HDMI embedded audio + external analog audio. After mixed processing, it can be embedded into the output HDMI signal or output from the analog port. The resolution of all input signals is automatically adapted, and the resolution of output signals can be selected according to requirements, which is quite flexible. For video switching requirements such as broadcast TV, program production, live interview and speech production, outdoor sports events, etc., the functions of HDS7305 can fully meet the needs.

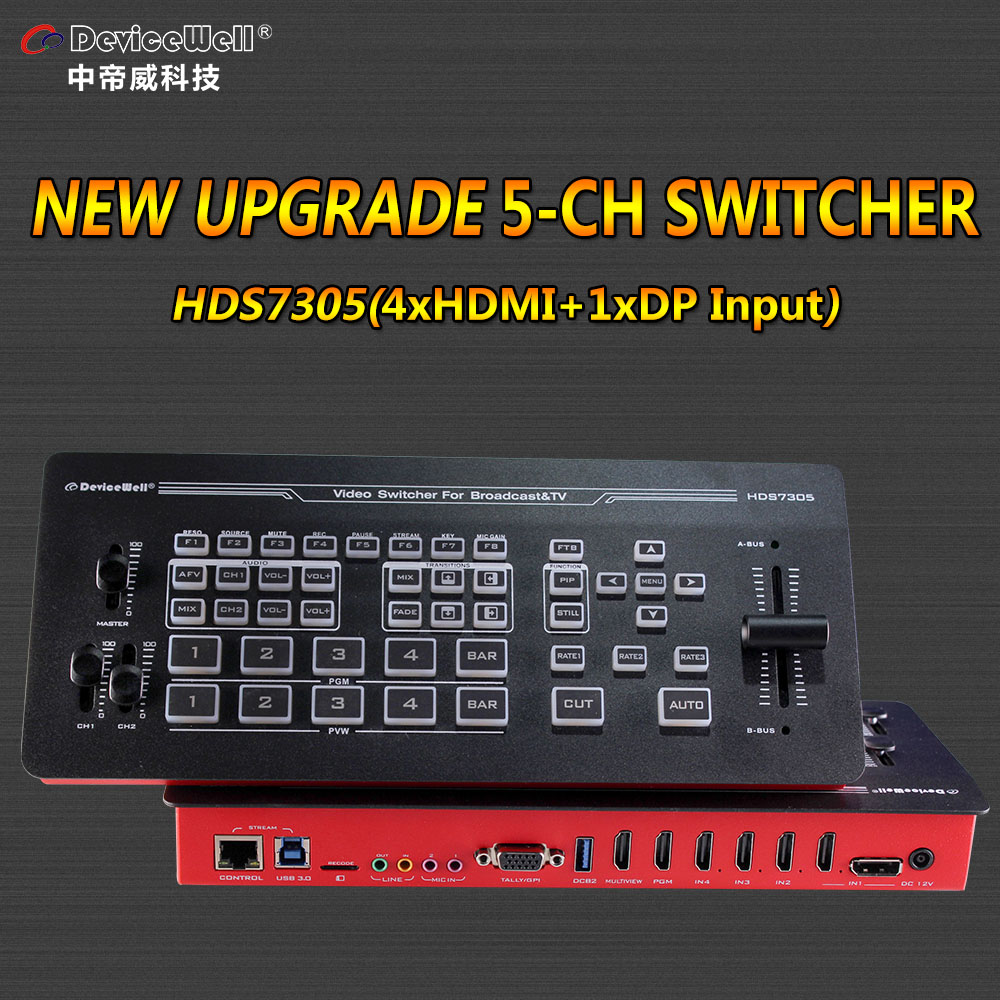

DeviceWell 4HDMI+1DP +Record/Stream USB3.0 Switchers HDS7305

HDMI SDI DVI 高清切换台

DeviceWell  4HDMI+1DP Switchers -HDS7305, supports 4 HDMI + 1 DP signal input, a total of 5 video signals. The external preview signal can be output synchronously. Switcher supports HDMI embedded audio + external analog audio. After mixing, it can be embedded in the output HDMI signal or output from the analog port. The resolution of all input signals is automatically adapted, and the output signal resolution can be selected as required, which is quite flexible. For broadcast and television, program production, on-site interview and speech production, outdoor sports events, school courseware production and other video switching needs, the functions of Switcher can fully meet.


◆ Portable integrated design

◆ Aluminum alloy body, high

strength and light weight

◆ Integrated control keyboard

audio fader and video fader

◆ Support up to 4 HDMI+1 DP inputs

◆ 2 MIC inputs

◆ 3.5mm analog audio input and output

◆ 1 channel 3.5 headphone monitor

◆ Support network RTMP streaming

◆ 1 group of KEY, support Luma key, chroma key

 key image and superimposed character function

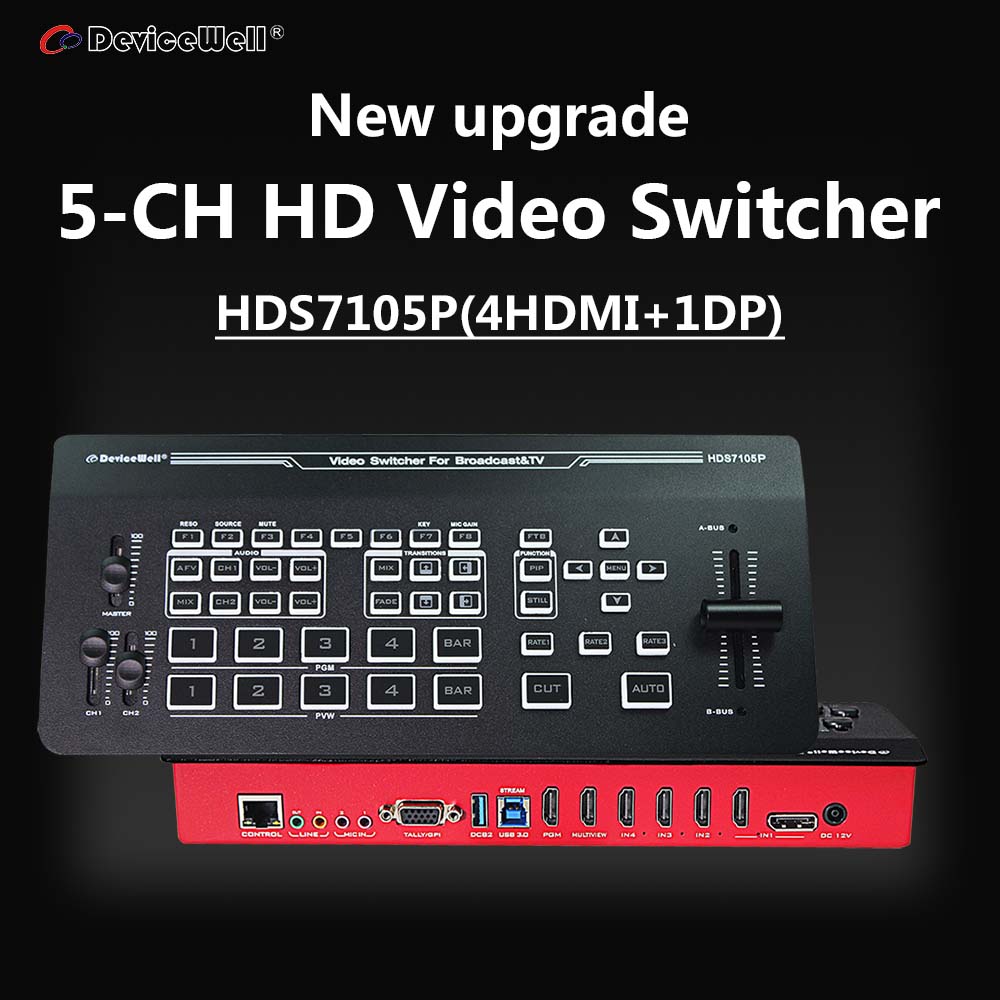

Support 4K Signal Input 4xHDMI+1xDP Video Switcher-HDS7105P

HDMI SDI DVI 高清切换台

Support 4K Signal Input 4xHDMI+1xDP Video Switcher-HDS7105P. Supports 4 HDMI + 1 DP signal inputs, a total of 5 video signals. The external preview signal can be output simultaneously. The switcher supports HDMI embedded audio + external analog audio. After mixed processing, it can be embedded in the output HDMI signal or output from the analog port.


·Support RJ45 remote control

·Support DCB control

·Radio and television standard Tally interface

·Support GPI control

·Support foot pedal, control handle and other inputs

·Support 4K signal input

·Support 4xHDMI+1xDP input

·PGM output: 1xHDMI

·MULTIVIEW output: 1x HDMI

·Supports USB3.0streaming, lossless, non compressed transmission

·1xLINE IN/OUT

·2xMIC IN

·supports audio following and mixing functions

·Support for HDMI audio deblocking

·Support for special effects switching such as MIX/FADE

·Support for CUT hard switching and AUTO special effects switching

·One-key screen freeze(STILL) function

·Supports one click FTB emergency black field function,

·Support PIP screen window function
