Professional 12G SDI converter（SDITO HDMI）-PD2312
Professional 12G SDI converter（SDITO HDMI）-PD2312

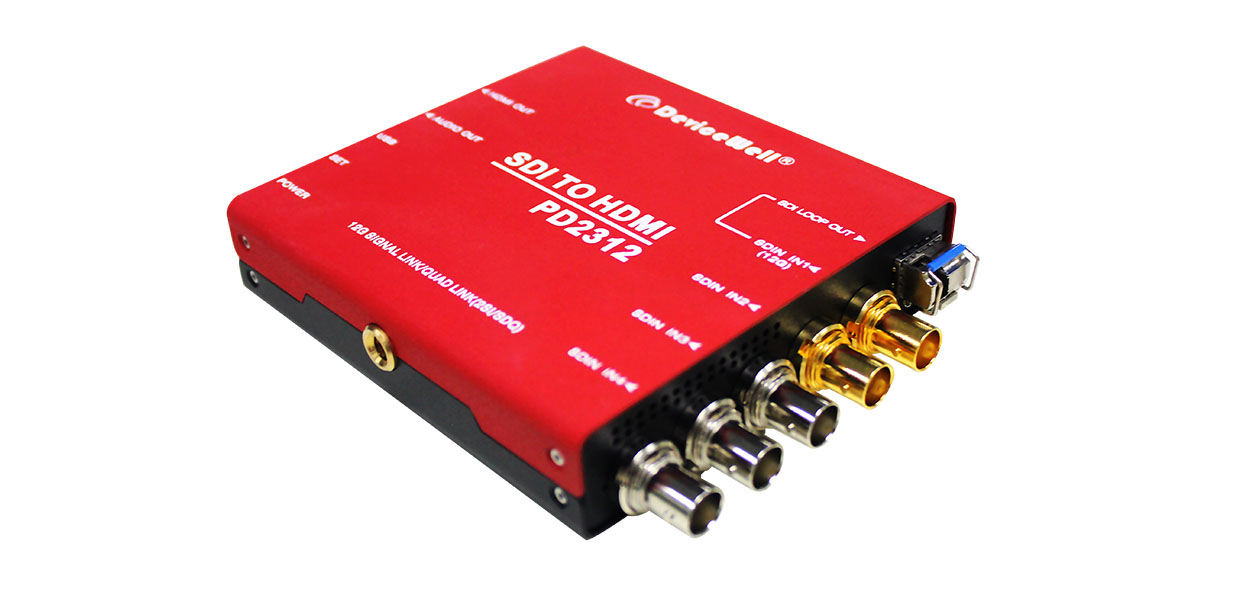

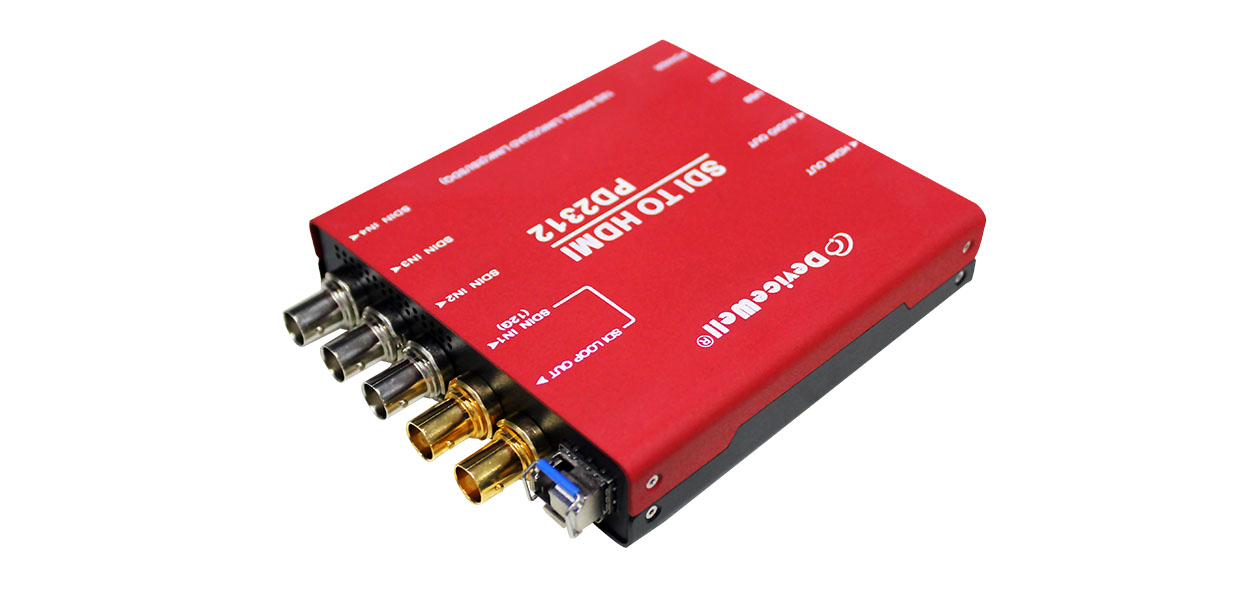

A perfessional SDI to HDMI converter, Design based on devicewell technology. The device integrates FRCS (frame rate conversion system), SDI receiver and HDMI encoder，it can convert 12g / 6G / 3G / HD SDI signal into HDMI high-definition video signal. At the same time, pd2312 can also de embed the audio in SDI signal，output to HDMI and analog stereo port. Pd2312 integrated link conversion function，support single link and 4 link when UHD，3G / HD SDI signal is compatible with single link.

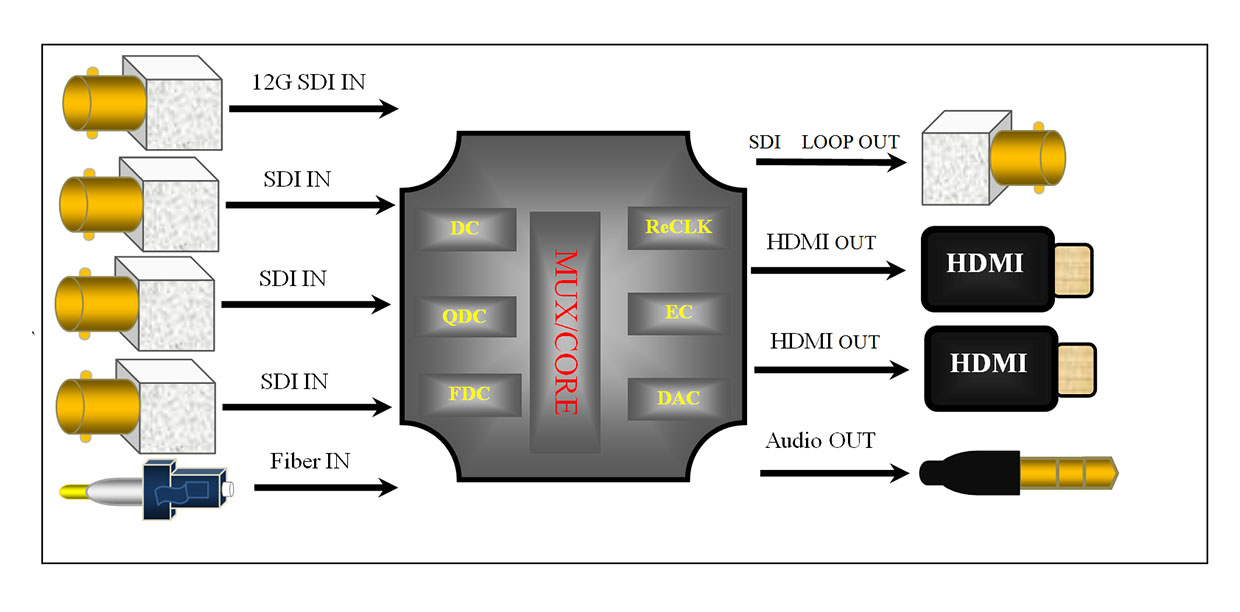

Functional Diagram
Product Features
◆ Support single link 12g/6g SDI signal input
◆ Support single link optical signal input
◆ Single link down compatible 3g/hd
◆ Support UHD four link mode
◆ Four link mode supports Quad mode and 2Si mode
◆ Support 1080psf / 720p, 30 / 25 / 24Hz and other special formats
◆ Support up / down conversion function
◆ Support SDI embedded audio de embedding
◆ Support SDI audio de embedding to analog stereo audio output
◆ USB upgrade supported
◇ Special functions can be customized

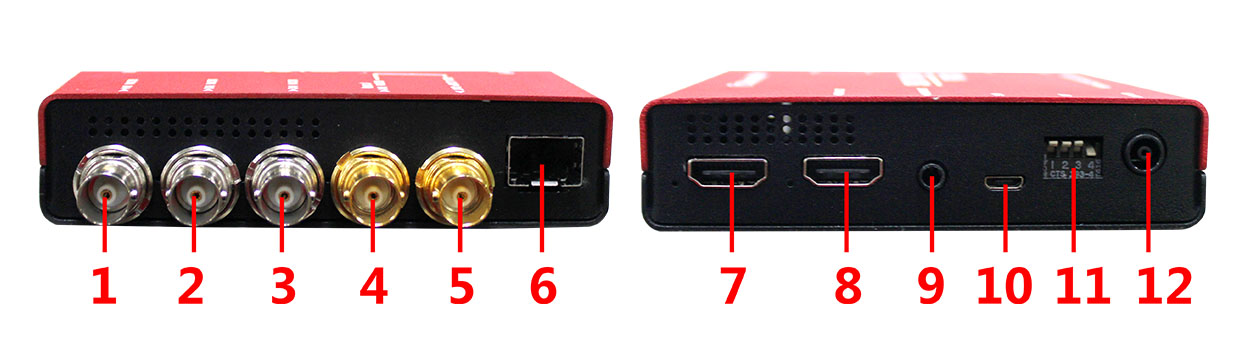

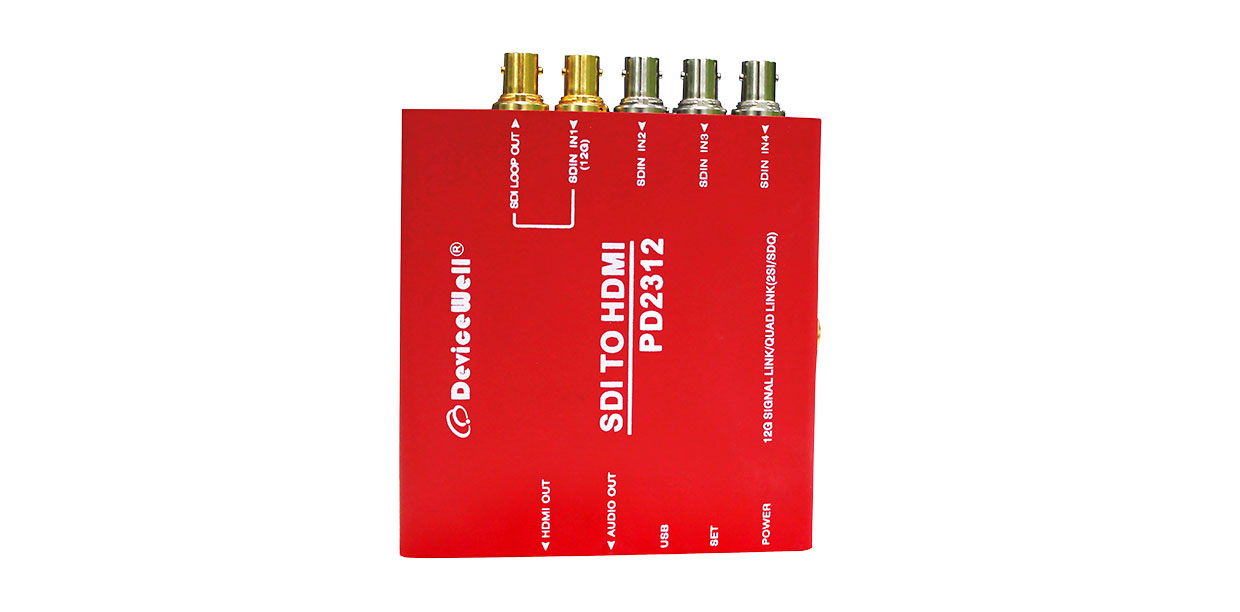

Interface Description
1/2/3. SDI 4 link input 4.12G SDI input
5. 12G SDI output 6. Optical signal input (reserved) 7. HDMI input (reserved) 8. HDMI output
9. Stereo audio output 10.Micro USB
11. Function setting (see the table below) 12.DC 5V-12V
Set the parameters
|
Dialing code |
1 |
2 |
3 |
4 |
|
OFF |
reserve |
reserve |
QUAD |
Four links |
|
ON |
reserve |
reserve |
2SI |
Single link |
Dial down is ON;
Product Parameters
|
Product name |
Frequency conversion SDI converter |
|
|
Product model |
PD2312 |
|
|
SDI video input / output |
signal |
SDI high definition serial digital video signal |
|
Connector |
BNC meets iec169-8 |
|
|
Bit rate |
270Mbps~12Gbps |
|
|
Signal amplitude |
800mV±10%(75Ω) |
|
|
impedance |
75Ω |
|
|
Analog audio output |
output signal |
Analog stereo audio |
|
impedance |
16Ω |
|
|
Connector |
3.5mmheadset |
|
|
HDMI video output |
output signal |
HDMI video signal |
|
Connector |
HDMI |
|
|
Signal amplitude |
800mV±10%(100Ω) |
|
|
impedance |
100Ω |
|
|
General parameters |
Power Supply |
DC 5-12V |
|
power |
<6W |
|
|
size |
126 x 109 x 25mm |
|
|
control panel |
Dial switch |
|
|
weight |
0.5Kg |
|
|
working temperature |
0℃~50℃ non-condensing |
|
|
Storage temperature |
-20℃~75℃ |
|
|
Working humidity |
20%~70%RH |
|
|
Storage humidity |
0%~90%RH， No condensation |
|
