Switcher

Devicewell 2RU 4K Video Switcher-UHS2512R

HDMI SDI DVI 高清切换台

DeviceWell's new Switcher UHS2512R. It is a dedicated video switcher for broadcast & TV, supporting up to 12-CH 4K60 signals. The device integrates SDI decoder, HDMI decoder, DP decoder, the highest resolution supports 4K60HZ, backward compatible with 3G SDI and other 1080P/720P high-definition video signals, built-in format converter, adaptive front-end different video signal input, built-in special effect generator, audio processor, video streaming processing and other common components of switcher. The video signal interface supports 10-CH 12G SDI+2-CH 4K60 HDMI+2-CH 4K60 DP, a total of 14 video inputs, 3-CH SDI output + 5-CH HDMI output+1-CH UVC output, a total of 9 video signal outputs. The audio signal interface supports 2 channels of XLR input, 2 channel of XLR input. Support DCB control system and tally output. Optional H.26x encoding module can be recorded to internal EMMC, external SSD or USB drive. Featuring a high-strength aluminum alloy shell and a built-in 5-inch display screen. It is suitable for the needs of switching between broadcasting and television studios and outdoor video special effects. For professional users, the keyboard can be extended and controlled through the DCB/RJ45 interface.




◆2HDMI+2DP+10SDI input

◆MULTIVIEW output: 1 -CH HDMI

◆PGM output: 3-CH4K60  HDMI+2-CH12G SDI

◆1-CH 1080P HDMI OUT

◆1-CH12G SDI AUX custom PGM/PVW output ◆2-CH XLR IN ,2-CH XLR OUT

◆The storage device interface supports USB3.0 and SATA hard disk recording

◆The USB interface can be connected to the mouse and keyboard for operating the internal recording system

Control panel for DeviceWell switcher

HDMI SDI DVI 高清切换台

DeviceWell's new UHS7812 adopts a portable integrated design with an all-aluminum alloy casing. It is small in size and light in weight, and can be used to control channel changes when going out. It is a professional-grade hardware control panel specially designed for all DeviceWell switchers. It combines a modern appearance with the latest broadcast and television technology, which can greatly speed up the workflow. Equipped with built-in LED LCD and high-quality curved buttons, which can reduce the chance of misoperation. The buttons are backlit to help you quickly identify important key controls. The UHS7812 has a compact and sturdy design that can fit into a standard equipment rack, making it ideal for OB truck racks, mobile racks and flight cases.




◆Portable integrated design

◆Support LCD menu setting

◆ Integrated control keyboard, T-bar, audio fader

◆ All-aluminum alloy body, streamlined design, high strength.

light weight

◆ Special functions can be customized

◆ 1-CH RS232 serial port control

◆ 2-CH RS485 remote control

◆ 1 RJ45 network port control (UDP communication protocol)

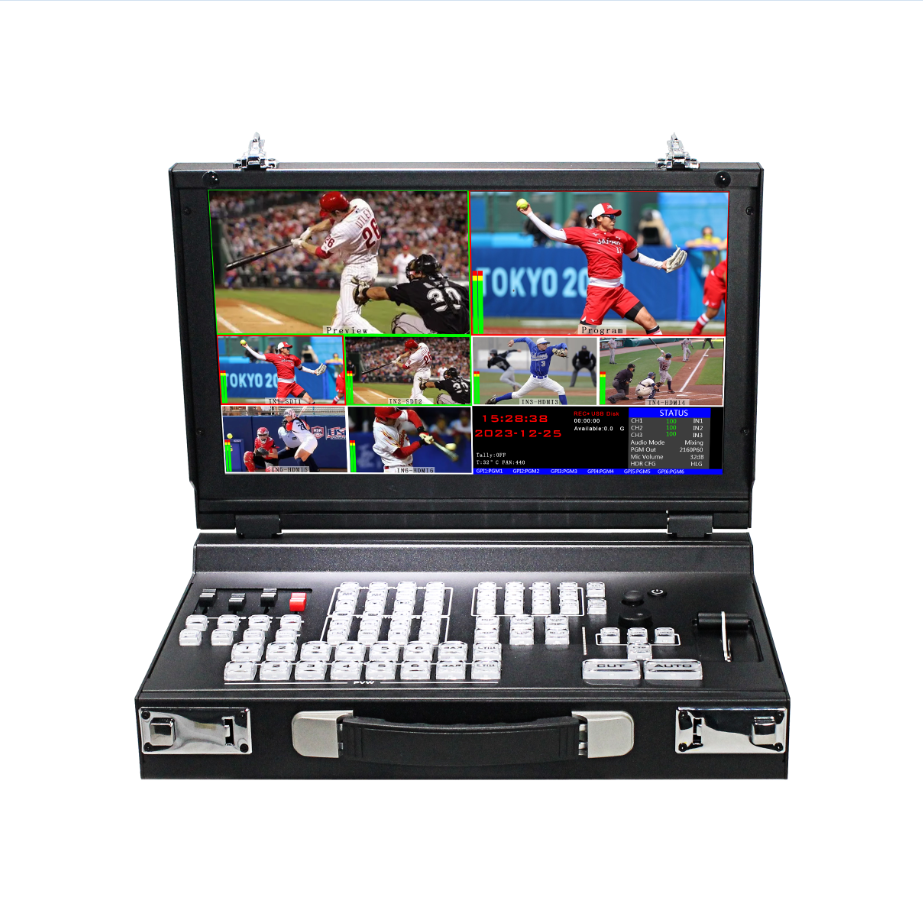

DeviceWell 2SDI+4HDMI+4DP 4K UHD Switchers- UHS9610R

HDMI SDI DVI 高清切换台

DeviceWell 2SDI+4HDMI-compatible+4DP 4K HDMI Switchers Released- UHS9610R,A dedicated director switcher for Broadcast&TV supports up to 10 channels of 4K60 signals. The device integrates SDI decoder, HDMI decoder, DP decoder, the highest resolution supports 4K60HZ, backward compatible with 3G SDI and other 1080P/720P high-definition video signals, built-in format converter, adaptive front-end different video signal input. Built-in special effects generator, audio processor and video streaming media processing and other common switcher components.

The video signal interface supports 2-CH SDI + 4-CH HDMI + 4-CH DP, a total of 10-CH video input, 2–CH SDI output + 5-CH HDMI-compatible output +USB3.0 UVC OUT + 1010P HD PGM OUT, a total of 9-CH video signal output.

Audio signal interface supports 2Balanced audio input,2Balanced audio output

Support DCB control system and tally output.

Optional H.26x encoding module, video stream can be output through UVC and RTMP network stream, and can also be recorded to internal EMMC, external SSD or TF card.


◆15.6-inch LCD screen

◆ Industrial-grade mechanical keys

◆ Hall sensor T-Bar

◆ Support RJ45 remote control

◆ DCB2 control + video expansion

◆ Broadcast&TV standard tally interface

◆ Support GPI control

◆ Support joystick, camera control

◆ Foot pedal, control handle , etc. input

◆ 3840x2160p60/50/30/25/24, H.264 encoding

◆ Support CBR fixed bit rate mode

◆ Support High profile encoding

◆ Recording file format MP4, support EDIUS non-editing software

◆ Storage device interface supports USB3.0 and SATA hard disk recording



DeviceWell Introducing ultra portable live production with advanced broadcast features UHS9912R

HDMI SDI DVI 高清切换台

DeviceWell 12SDI Switchers Released- UHS9912R,A dedicated director switcher for Broadcast&TV supports up to 10 channels of 4K60 signals. The device integrates SDI decoder, HDMI decoder, DP decoder, the highest resolution supports 4K60HZ, backward compatible with 3G SDI and other 1080P/720P high-definition video signals, built-in format converter, adaptive front-end different video signal input. Built-in special effects generator, audio processor and video streaming media processing and other common switcher components.

The video signal interface supports 12-CH SDI  video input, 3–CH SDI output + 5-CH HDMI-compatible output +USB3.0 UVC OUT + 1080P HD PGM OUT, a total of 9-CH video signal output.

Audio signal interface supports 2XLR audio input,2XLR audio output

Support DCB control system and tally output.

Optional H.26x encoding module, video stream can be output through UVC and RTMP network stream, and can also be recorded to internal EMMC, external SSD  card.


◆17-inch LCD screen

◆ Industrial-grade mechanical keys

◆ Hall sensor T-Bar

◆ Support RJ45 remote control

◆ DCB2 control + video expansion

◆ Broadcast&TV standard tally interface

◆ Support GPI control

◆ Support joystick, camera control

◆ Foot pedal, control handle , etc. input

◆ 3840x2160p60/50/30/25/24, H.264 encoding

◆ Support CBR fixed bit rate mode

◆ Support High profile encoding

◆ Recording file format MP4, support EDIUS non-editing software

◆ Storage device interface supports USB3.0 and SATA hard disk recording



DeviceWell 4SDI+2HDMI+2DP 4K UHD Switchers- UHS9508R

HDMI SDI DVI 高清切换台

DeviceWell 4SDI+2HDMI-compatible+2DP 4K HDMI Switchers Released- UHS9508R,A dedicated director switcher for Broadcast&TV supports up to 8 channels of 4K60 signals. The device integrates SDI decoder, HDMI decoder, DP decoder, the highest resolution supports 4K60HZ, backward compatible with 3G SDI and other 1080P/720P high-definition video signals, built-in format converter, adaptive front-end different video signal input. Built-in special effects generator, audio processor and video streaming media processing and other common switcher components.

The video signal interface supports 4-CH SDI + 2-CH HDMI + 2-CH DP, a total of 8-CH video input, 2–CH SDI output + 5-CH HDMI-compatible output +USB3.0 UVC OUT + 1010P HD PGM OUT, a total of 9-CH video signal output.

Audio signal interface supports 2Balanced audio input,2Balanced audio output

Support DCB control system and tally output.

Optional H.26x encoding module, video stream can be output through UVC and RTMP network stream, and can also be recorded to internal EMMC, external SSD or TF card.


◆15.6-inch LCD screen

◆ Industrial-grade mechanical keys

◆ Hall sensor T-Bar

◆ Support RJ45 remote control

◆ DCB2 control + video expansion

◆ Broadcast&TV standard tally interface

◆ Support GPI control

◆ Support joystick, camera control

◆ Foot pedal, control handle , etc. input

◆ 3840x2160p60/50/30/25/24, H.264 encoding

◆ Support CBR fixed bit rate mode

◆ Support High profile encoding

◆ Recording file format MP4, support EDIUS non-editing software

◆ Storage device interface supports USB3.0 and SATA hard disk recording



4K UHD Video Switcher 4xXVI+4xDP+2xSDI 10-CH UHS6610R

HDMI SDI DVI 高清切换台

It is a dedicated video switcher for broadcast & TV, supporting up to 10 channels of 4K60 signals. The device integrates SDI decoder, XVI decoder, DP decoder, the highest resolution supports 4K60HZ

The video signal interface supports 2-CH SDI+4-CH XVI+4-CH DP, a total of 10 video inputs, 2-CH SDI output + 3-CH XVI output, a total of 5 video signal outputs.

The audio signal interface supports 2 channels of microphone input, 1 channel of LINE input, a total of 3 channels of audio input, and 1 channel of Line output.

Support DCB control system and tally output.

Optional H.26x encoding module can be recorded to internal EMMC, external SSD or TF card.

It adopts high-strength aluminum alloy shell, which is easy to carry. It can be applied to broadcast and TV station studios and the needs of switching video effects on location. For professional users, the control keyboard can be expanded through the DCB interface.




  • Broadcast & TV standard Tally interface

  • 4XVI+4DP+2SDI input
  • MULTIVIEW output: 2 channels XVI
  • PGM output: 2ch XVI+2ch SDI
  • Support RJ45 remote control

  • Support DCB control

  • Support High profile encoding
  • Recording file format MP4, support EDIUS non-linear editing software
  • The storage device interface supports USB3.0 and SATA hard disk recording
  • The USB interface can be connected to the mouse and keyboard for operating the internal recording system
  • The XVI interface outputs the operation interface of the internal recording system

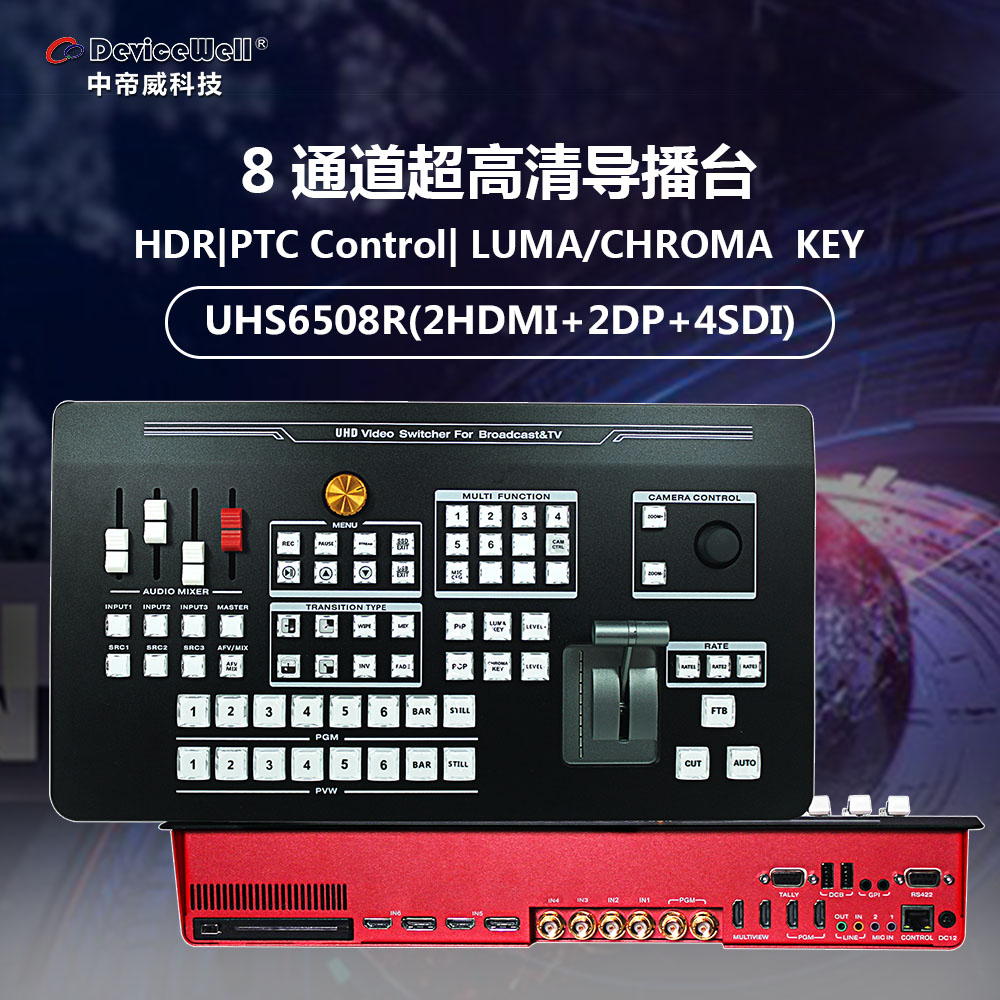

4K UHD Video Switcher 2xHDMI+2xDP+4xSDI 8-CH UHS6508R

HDMI SDI DVI 高清切换台

It is a dedicated video switcher for broadcast & TV, supporting up to 10 channels of 4K60 signals. The device integrates SDI decoder, XVI decoder, DP decoder, the highest resolution supports 4K60HZ

The video signal interface supports 4-CH SDI+2-CH HDMI+2-CH DP, a total of 8 video inputs, 2-CH SDI output + 3-CH XVI /HDMIoutput, a total of 5 video signal outputs.

The audio signal interface supports 2 channels of microphone input, 1 channel of LINE input, a total of 3 channels of audio input, and 1 channel of Line output.

Support DCB control system and tally output.

Optional H.26x encoding module can be recorded to internal EMMC, external SSD or TF card.

It adopts high-strength aluminum alloy shell, which is easy to carry. It can be applied to broadcast and TV station studios and the needs of switching video effects on location. For professional users, the control keyboard can be expanded through the DCB interface.




  • Broadcast & TV standard Tally interface

  • 2HDMI+2DP+4SDI input
  • MULTIVIEW output: 2 channels XVI
  • PGM output: 2ch XVI+2ch SDI
  • Support RJ45 remote control

  • Support DCB control

  • Support High profile encoding
  • Recording file format MP4, support EDIUS non-linear editing software
  • The storage device interface supports USB3.0 and SATA hard disk recording
  • The USB interface can be connected to the mouse and keyboard for operating the internal recording system
  • The XVI interface outputs the operation interface of the internal recording system

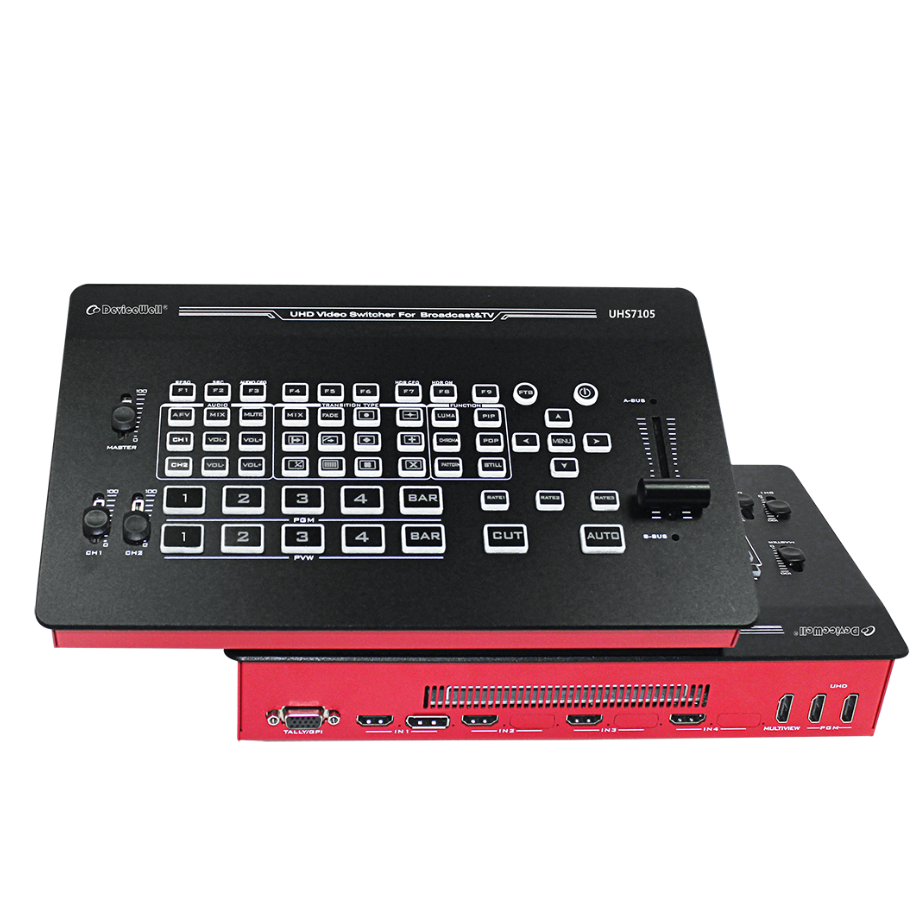

5-CH 4K60 Switcher UHS7105

HDMI SDI DVI 高清切换台

It is a dedicated video switcher for broadcast & TV, supporting up to 5-CH 4K60 signals. The device integrates XVI decoder, DP decoder, the highest resolution supports 4K60HZ, backward compatible with 1080P/720P high-definition video signal such as 3G SDI, built-in format converter, adaptive front-end different video signal input, built-in special effect generator, audio processor, video streaming processing and other common components of switcher.

The video signal interface supports 4-CH XVI+1-CH DP, total 5-CH video input and 3-CH XVI output.

The audio signal interface supports 2-CH MIC input, 1-CH LINE input, and 1-CH Line output.

Support DCB control system and tally output.

It adopts high-strength aluminum alloy shell, which is easy to carry. It can be applied to broadcast and TV station studios and the needs of switching video effects on location. For professional users, the control keyboard can be expanded through the DCB interface.


  • Hundreds of special effect wipes such as circle, rhombus,fan, plum blossom, shutter, etc.
  • A separate PATTERN KEY, which can set various special-shaped patterns.The position, size and number of images can be adjusted
  • Broadcast & TV standard Tally interface
  • Support RJ45 remote control
  • Support DCB control
  • 2xMIC inputs
  • 1xLINE IN input
  • 1xLINE OUT output
  • 4xXVI+1xDP input
  • MULTIVIEW output:1xXVI
  • PGM output:2xXVI
