FHD Broadcast Grade 3G SDI Signal Design

SDI/HDMI Bidirectional converter + LCD + speaker

MD1103

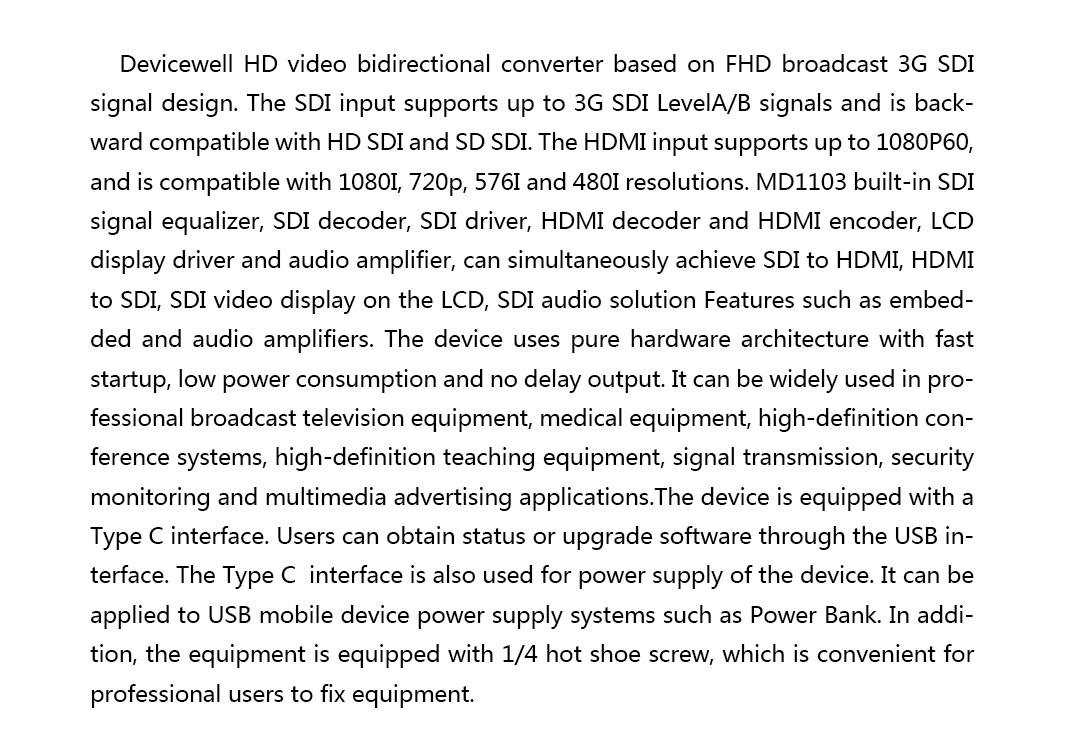

Devicewell HD video bidirectional converter based on FHD broadcast 3G SDI signal

design. The SDI input supports up to 3G SDI LevelA/B signals and is backward

compatible with HD SDI and SD SDI. The HDMI input supports up to 1080P60, and is

compatible with 1080I, 720p, 576I and 480I resolutions. MD1103 built-in SDI signal

equalizer, SDI decoder, SDI driver, HDMI decoder and HDMI encoder, LCD display driver

and audio amplifier, can simultaneously achieve SDI to HDMI, HDMI to SDI, SDI video

display on the LCD, SDI audio solution Features such as embedded and audio

amplifiers. The device uses pure hardware architecture with fast startup, low power

consumption and no delay output. It can be widely used in professional broadcast

television equipment, medical equipment, high-definition conference systems, high-

definition teaching equipment, signal transmission, security monitoring and multimedia

advertising applications.The device is equipped with a Micro USB interface. Users can

obtain status or upgrade software through the USB interface. The Micro usb interface

is also used for power supply of the device. It can be applied to USB mobile device

power supply systems such as Power Bank. In addition, the equipment is equipped with

1/4 hot shoe screw, which is convenient for professional users to fix equipment.

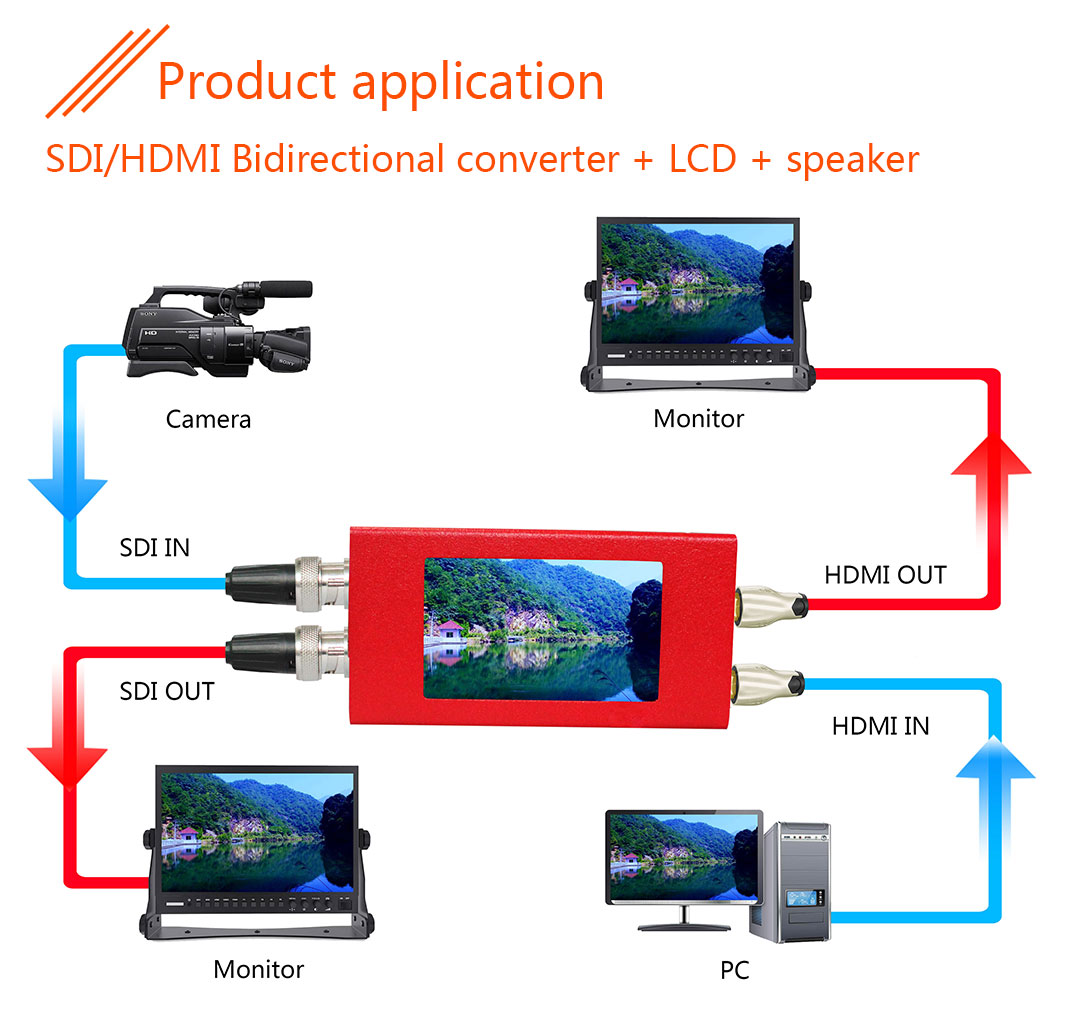

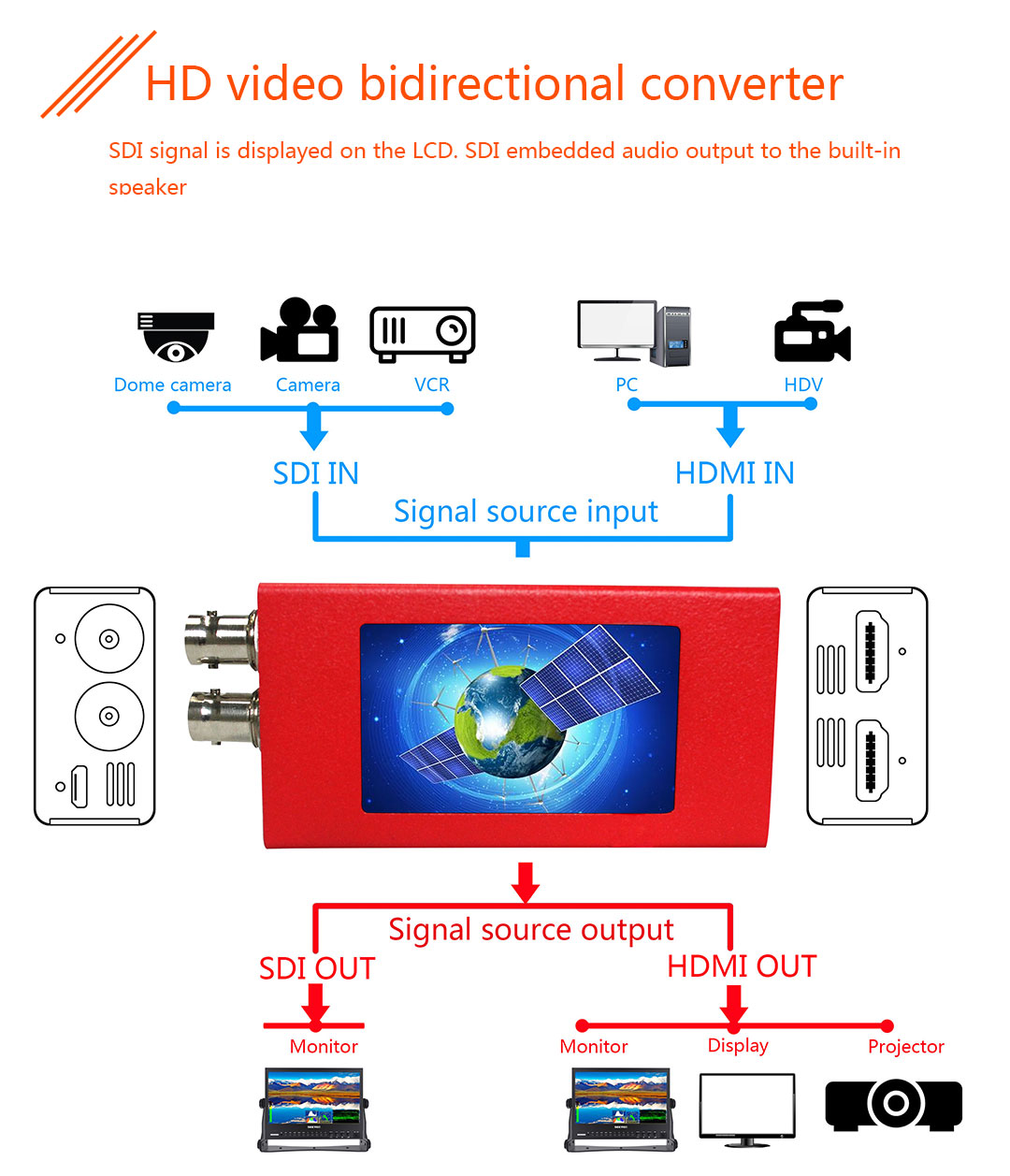

          HD video bidirectional converter

                 SDI signal is displayed on the LCD. SDI embedded audio output to the built-

                 in speaker

            Product Features·MD1103

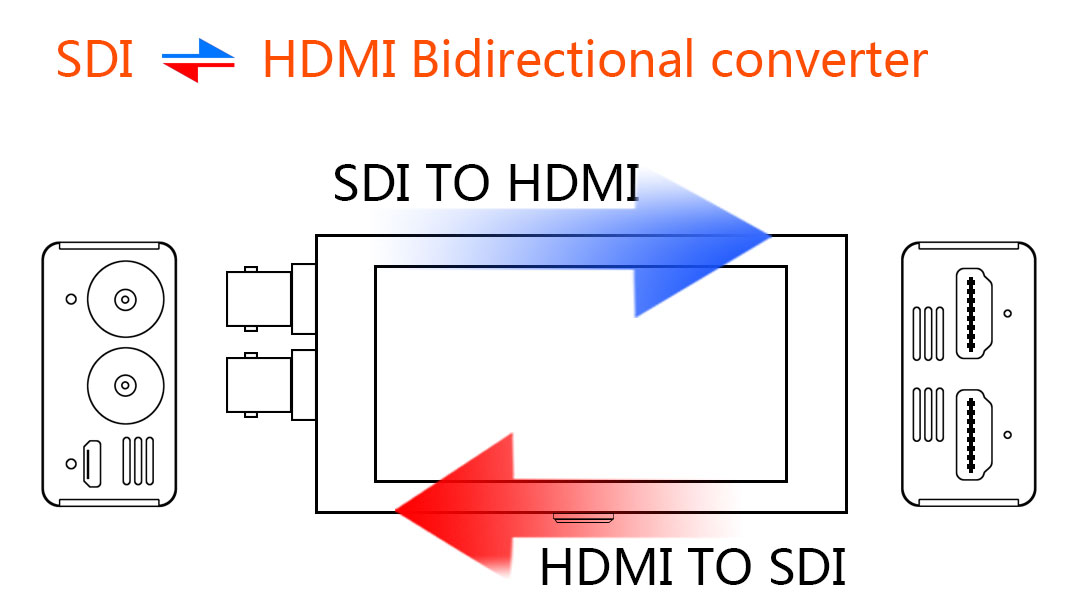

                     Support SDI to HDMI and HDMI to SDI

MD1103

1080P60 HD output

The SDI input supports up to 3G SDI LevelA/B signals and is backward compatible with

HD SDI and SD SDI. The HDMI input supports up to 1080P60 and is backward

compatible with 1080I, 720p, 576I and 480I resolutions.

MD1103

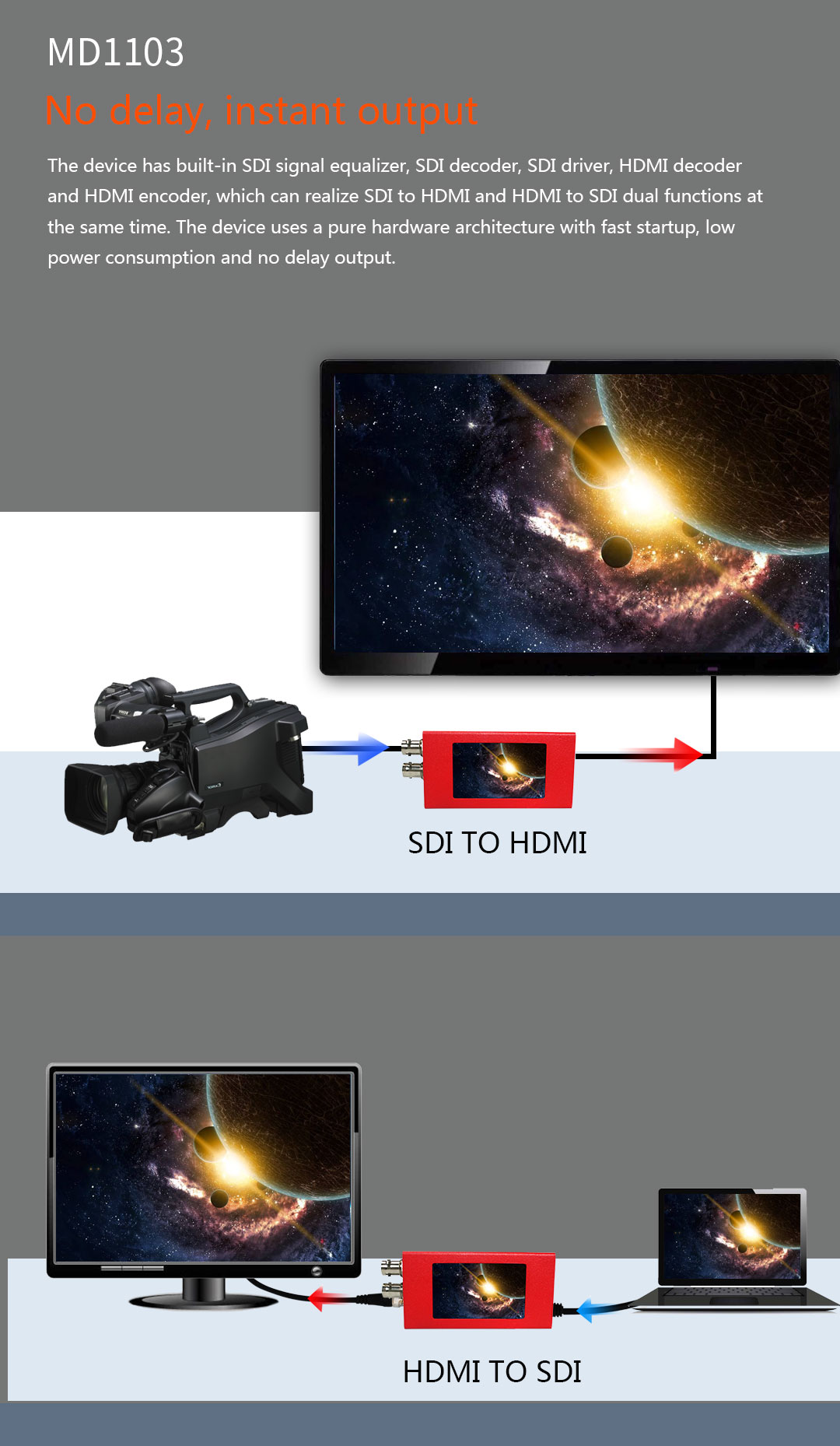

No delay, instant output

The device has built-in SDI signal equalizer, SDI decoder, SDI driver, HDMI decoder and

HDMI encoder, which can realize SDI to HDMI and HDMI to SDI dual functions at the

same time. The device uses a pure hardware architecture with fast startup, low power

consumption and no delay output.

MD1103

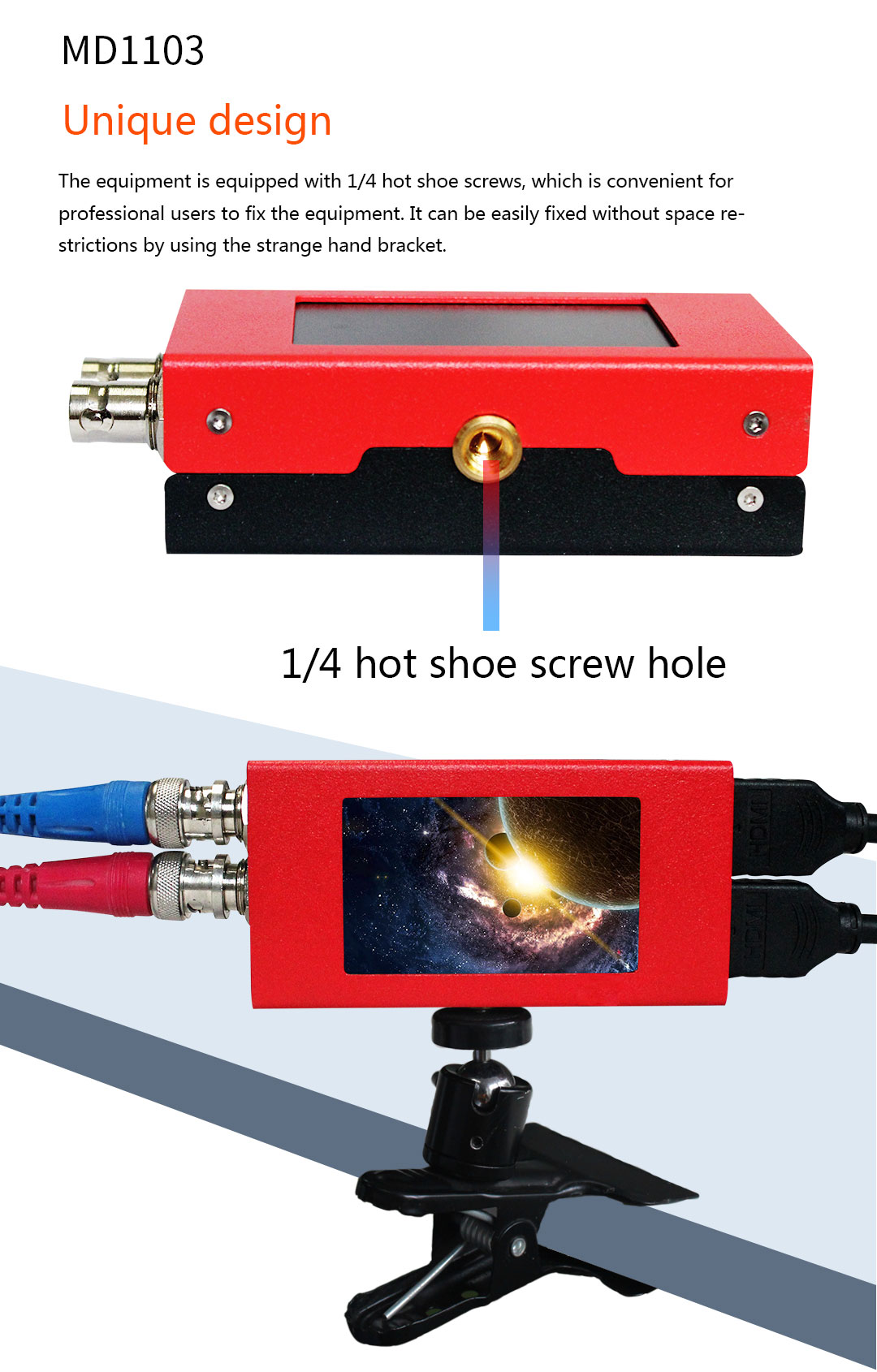

Unique design

The equipment is equipped with 1/4 hot shoe screws, which is convenient for

professional users to fix the equipment. It can be easily fixed without space

restrictions by using the strange hand bracket.

MD1103

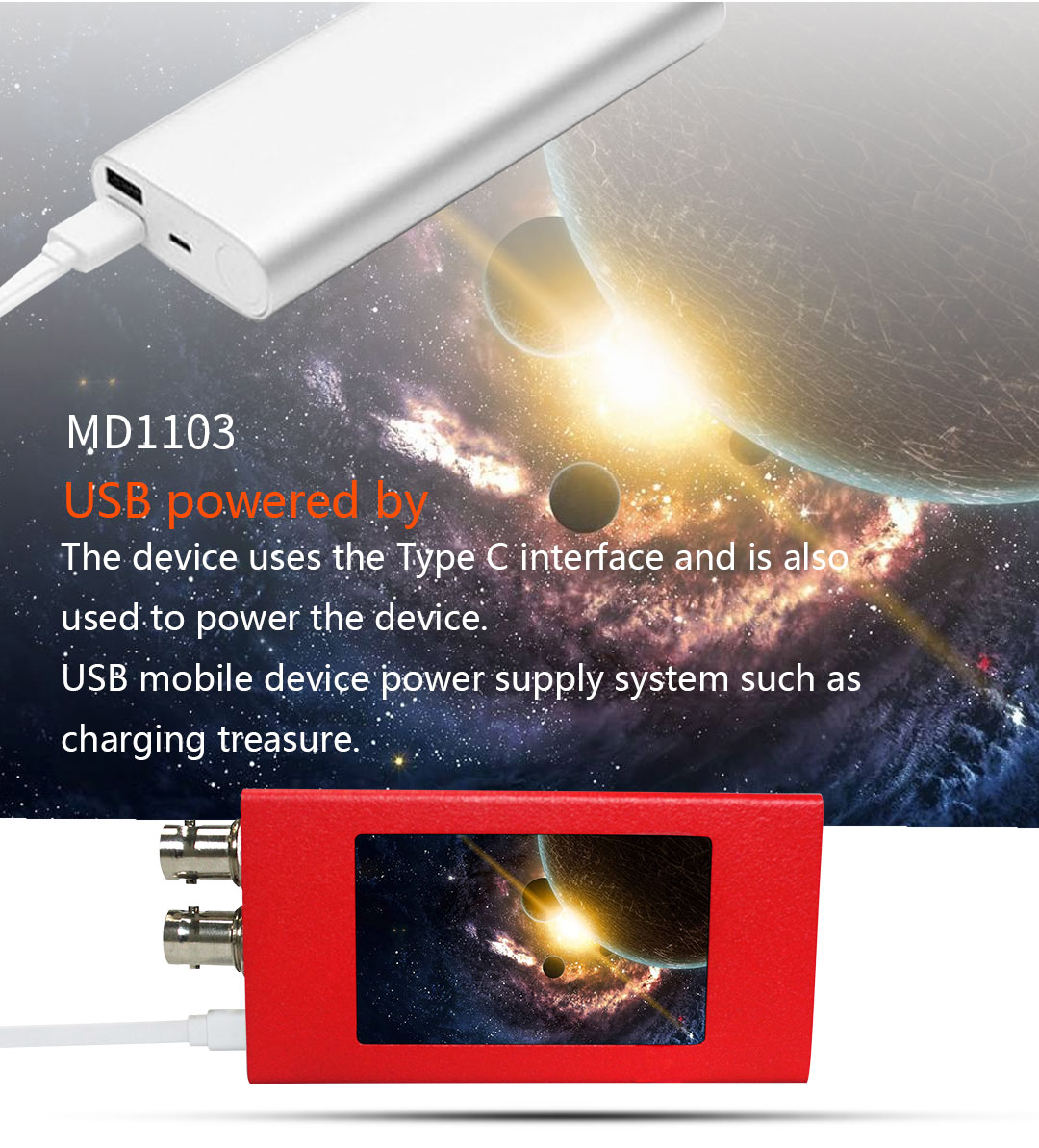

USB powered by

The device uses the Micro USB interface and is also used to power the device.USB

mobile device power supply system such as charging treasure.

        Application·MD1103

            Can be widely used in professional broadcast television equipment, medical

            equipment, HD conference systems,High-definition teaching equipment,signal

            switching, security monitoring and multimedia advertising application.

         Product parameters·MD1103

               SDI/HDMI input adaptive SDI/HDMI output is consistent with the input

MD1103

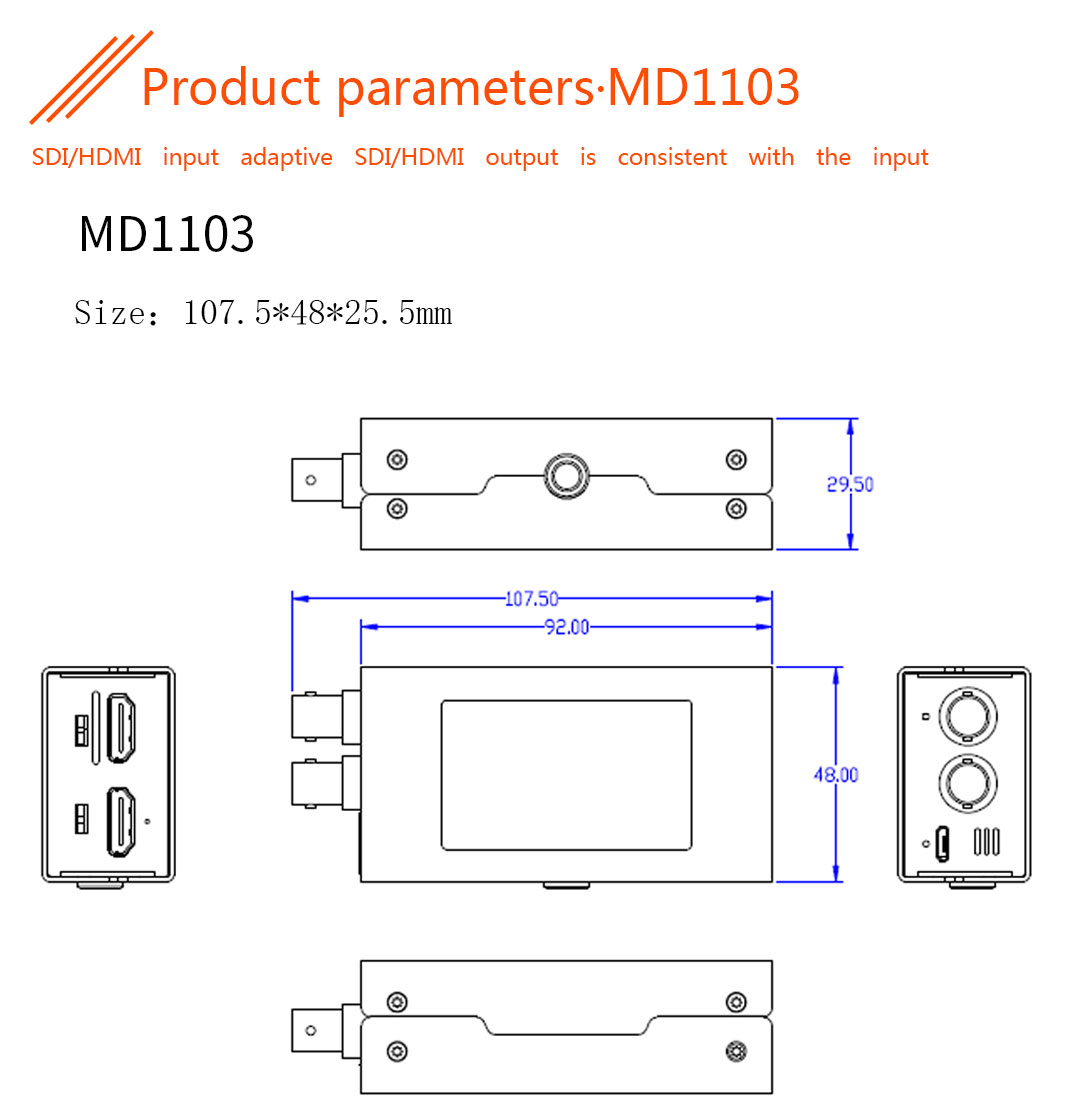

Size：107.5*48*25.5mm

MD1103

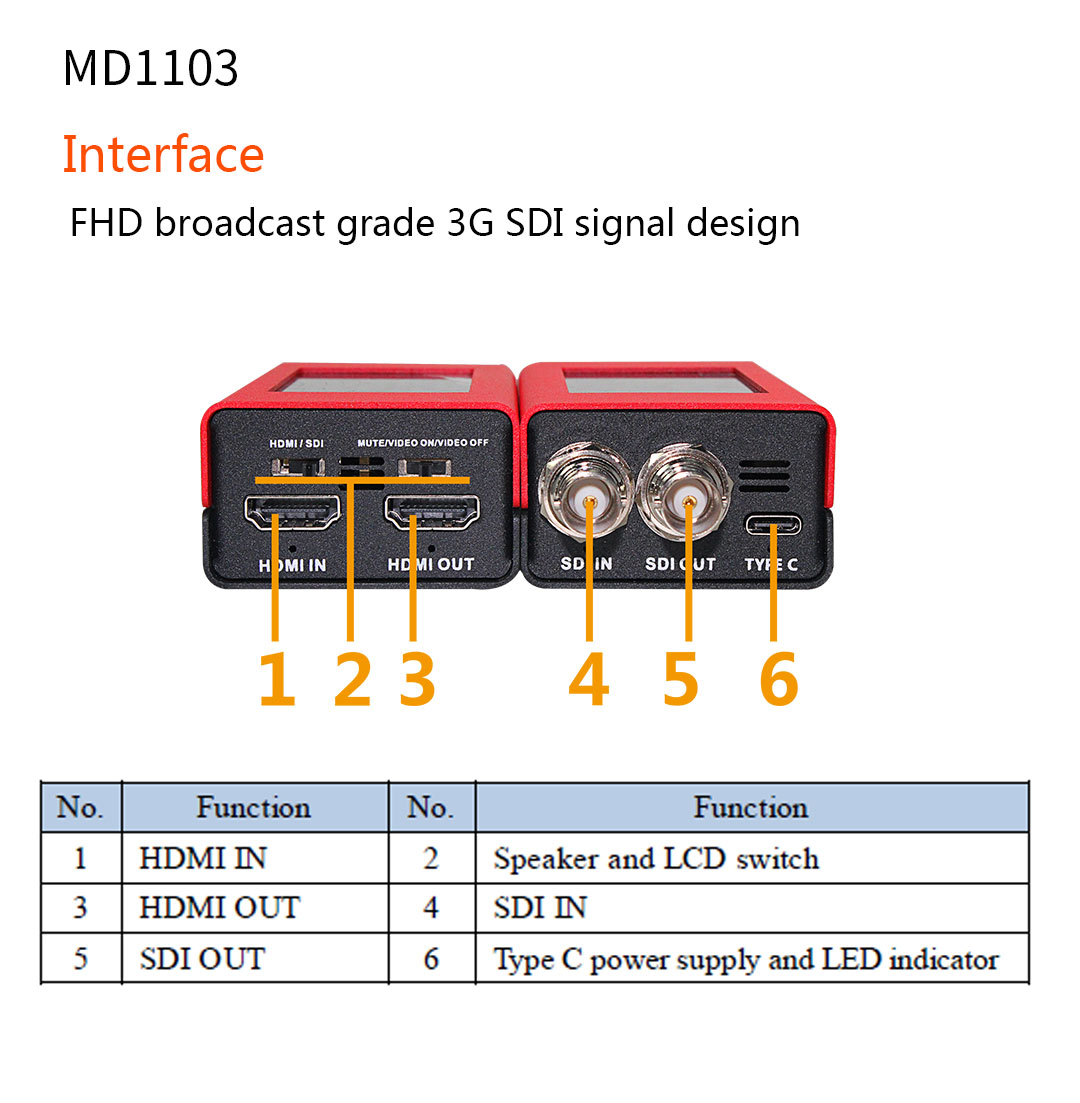

Interface

FHD broadcast grade 3G SDI signal design

MD1103

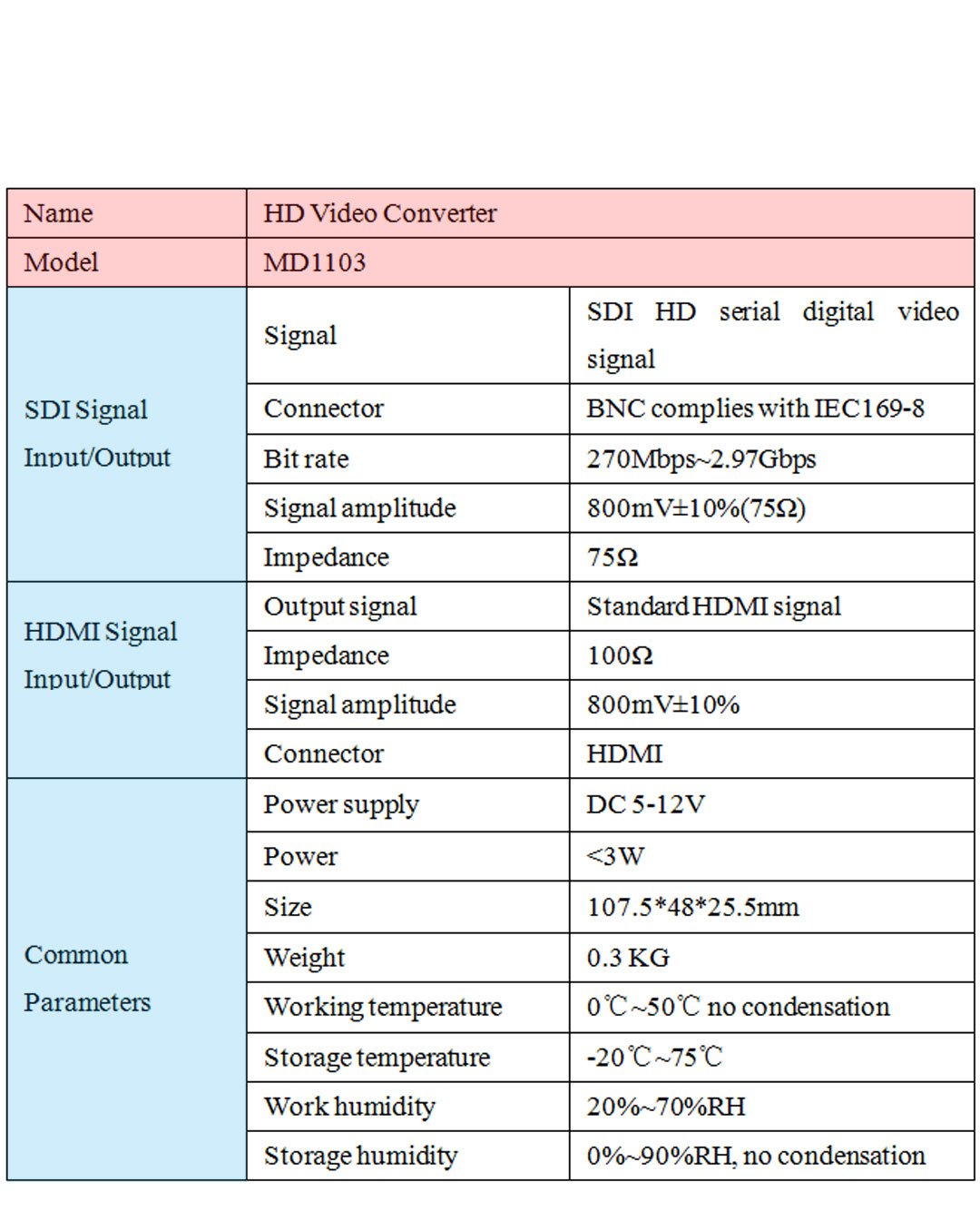

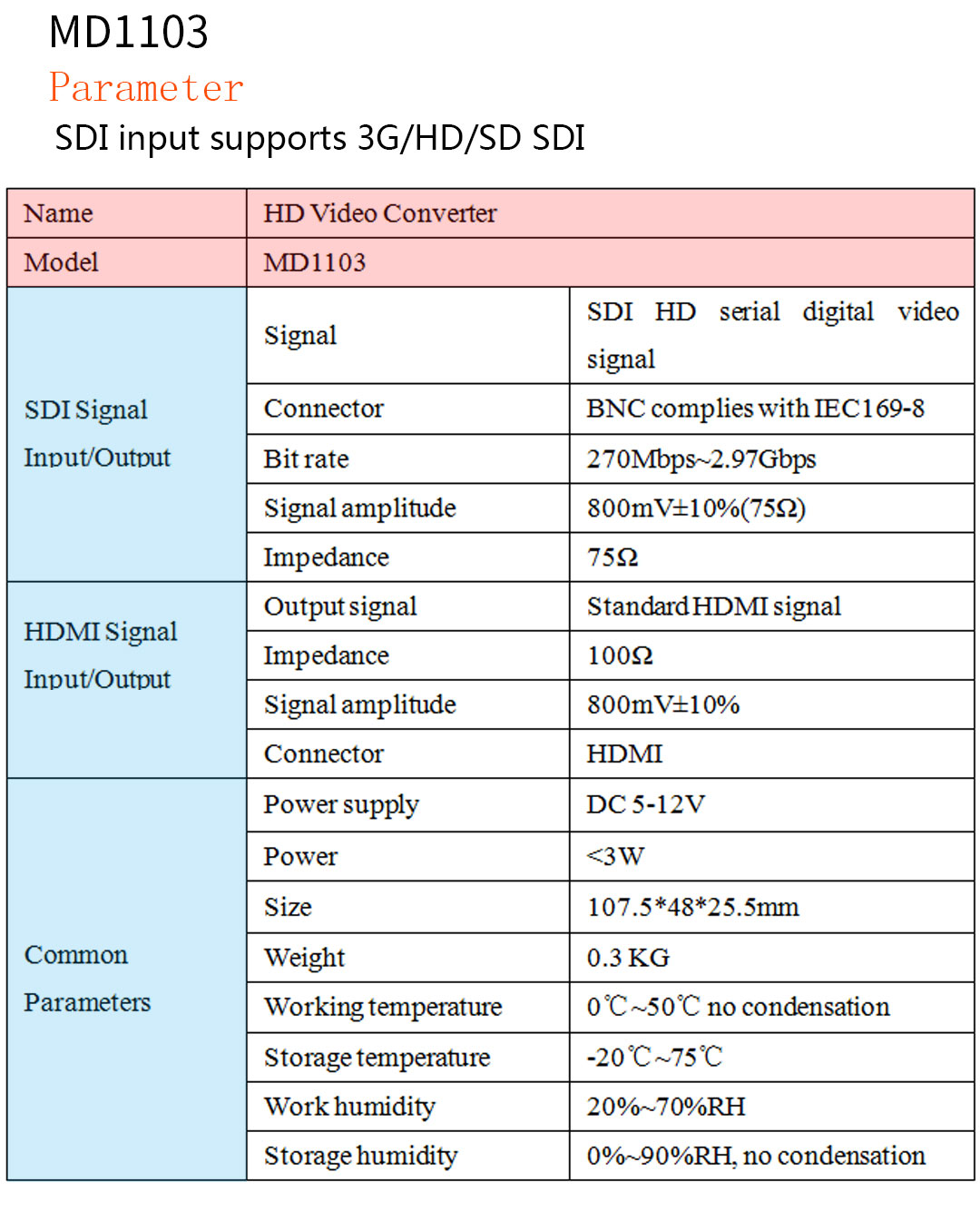

Parameter

SDI input supports 3G/HD/SD SDI
