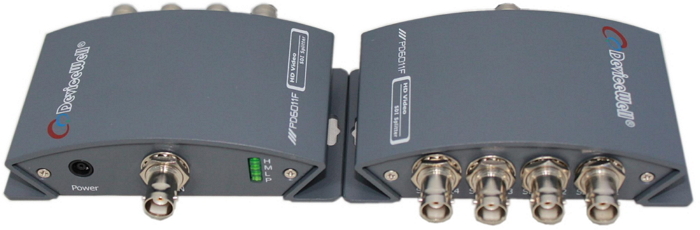

PD6011F (Professional SDI one to four)

Dedicated 3G/HD/SD SDI signal splitter, based on the third generation technology design of DeviceWell. Device integrated JCS (Jitter Removal System) and SDI Receiver and SDI Encoder to convert 1 SDI signal For the 4-channel SDI output PD6011F unique clock regeneration and clock debounce function, can reduce or eliminate the jitter component of the SDI signal. Ensure the output signal quality is stable, in line with the broadcast TV standard. Can be widely used in SDI video distribution, video extension and go Jitter application, etc.




Product Features

◆ Based on the third generation technology design of DeviceWell

◆ Support 3G/HD/SD SDI signal input

◆ Support 3G/HD/SD SDI signal output

◆ Support common formats 1080P/1080I/720P/480I/576I

◆ Support special formats such as 1080PSF/720P 30/25/24HZ

◆ SDI input signal adaptation

◆ Clock debounce

◆ SDI eye repair

◇ Special features can be customized

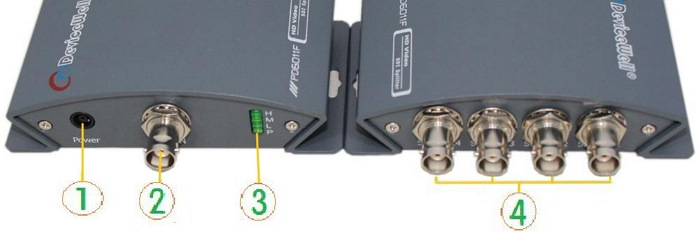

※Product Interface Diagram

1.DC 5V-12V


2. SDI input


3. LED indication (P: power supply L: standard definition M: high definition H: 3G)


4. SDI distribution output

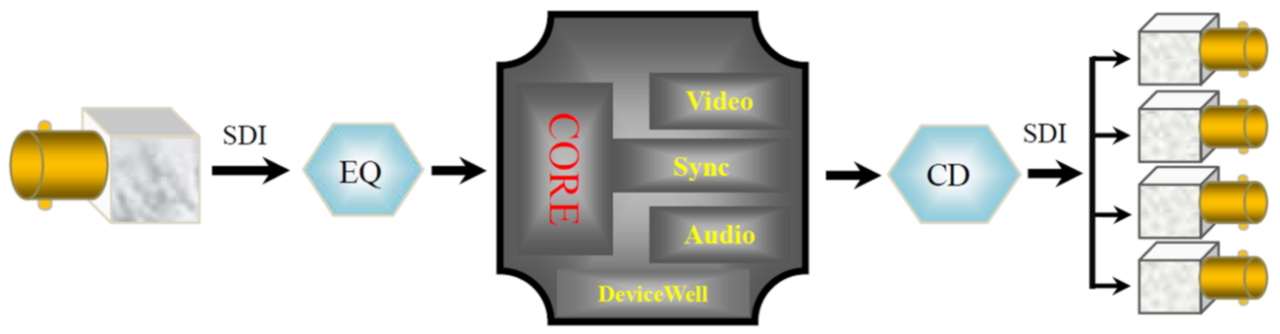

※Product Function Chart

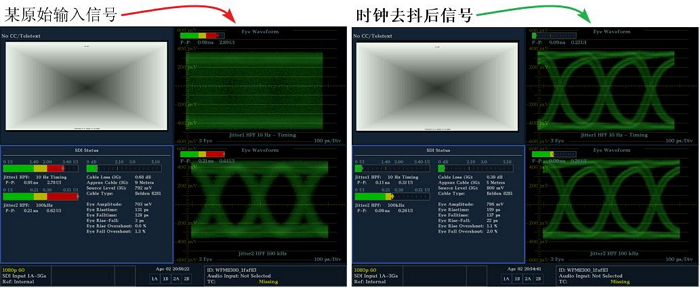

※Eye Repair Effect
