PD2091D 4K SDI demux

DeviceWell 4K SDI demux--PD2091D, 4K signal demux device is based on broadcast-
grade single-link 12G SDI and 4-link SDI signals. The device supports up to single-link
12G SDI signal demultiplexing into a 4-link 3G SDI signal, and the compatible single-
link 6G SDI signal is demultiplexed into a 4-link 1.5GSDI signal. The device has built-in
SDI signal equalization, demultiplexer, serial clock recovery and line driver, and
supports 1 channel 12G SDI signal or 1 channel optical signal input, 4 X 3G SDI signal
output. The 12G SDI input exceeds the transmission distance of 75M. The optical signal
adopts the standard SFP optical module. The standard transmission distance is 20KM.
The corresponding modules of different distances can be arbitrarily changed according
to different application scenarios. The device's SDI input signal frequency is
automatically adapted to multiplex a single-link 12G SDI signal into a 4-link 4K signal.
It can be applied to professional SDI video signals such as UHDTV/FHDTV/HDTV/SDTV,
especially for the field of link multiplexing of broadcast-grade ultra-high definition
digital signals.

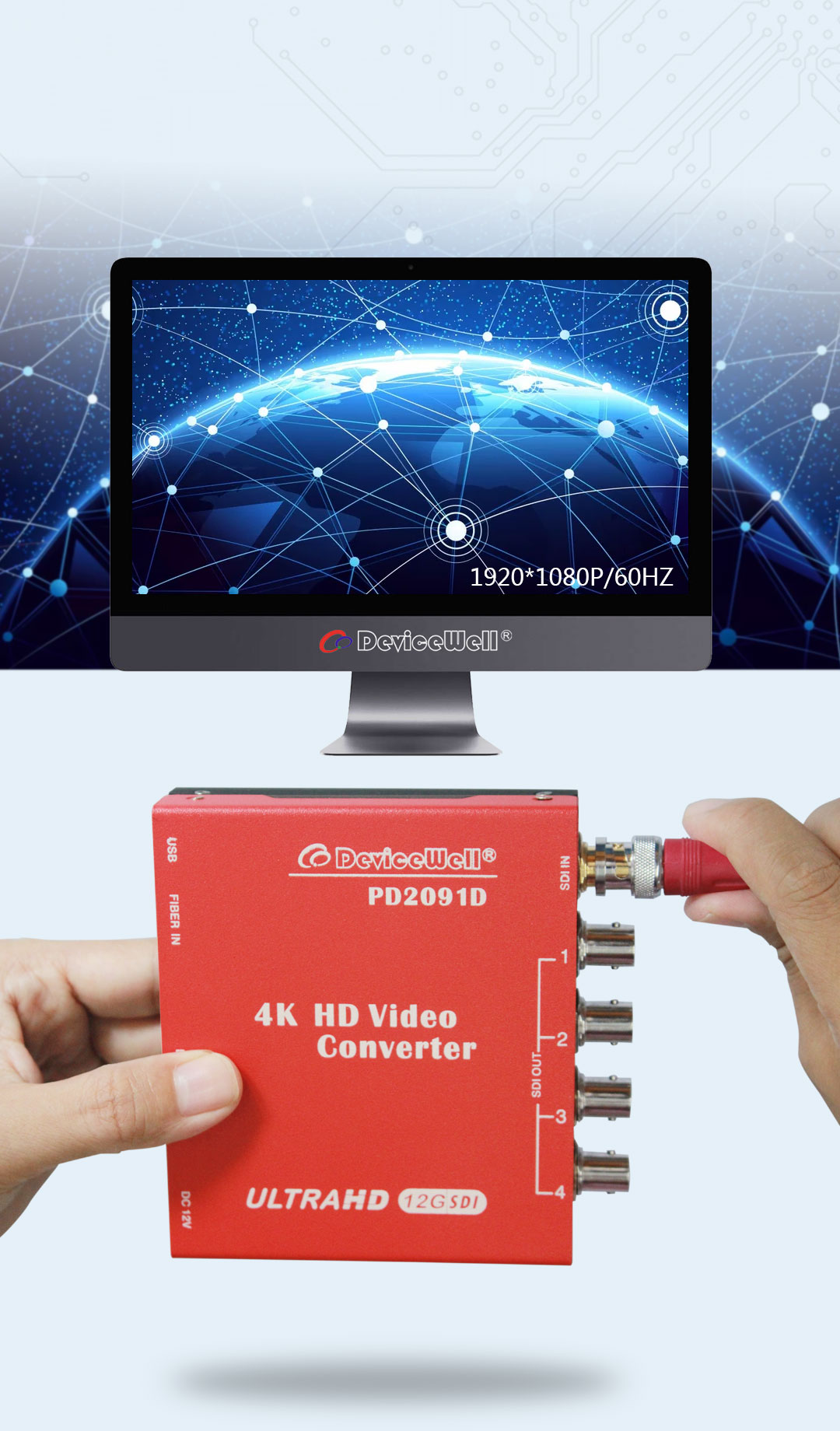

HD output
PD2091D 4K SDI Demux supports single-link 12G SDI signal demuxing into Quad Link 3G
SDI signal, HD output: 1920*1080P/60HZ.

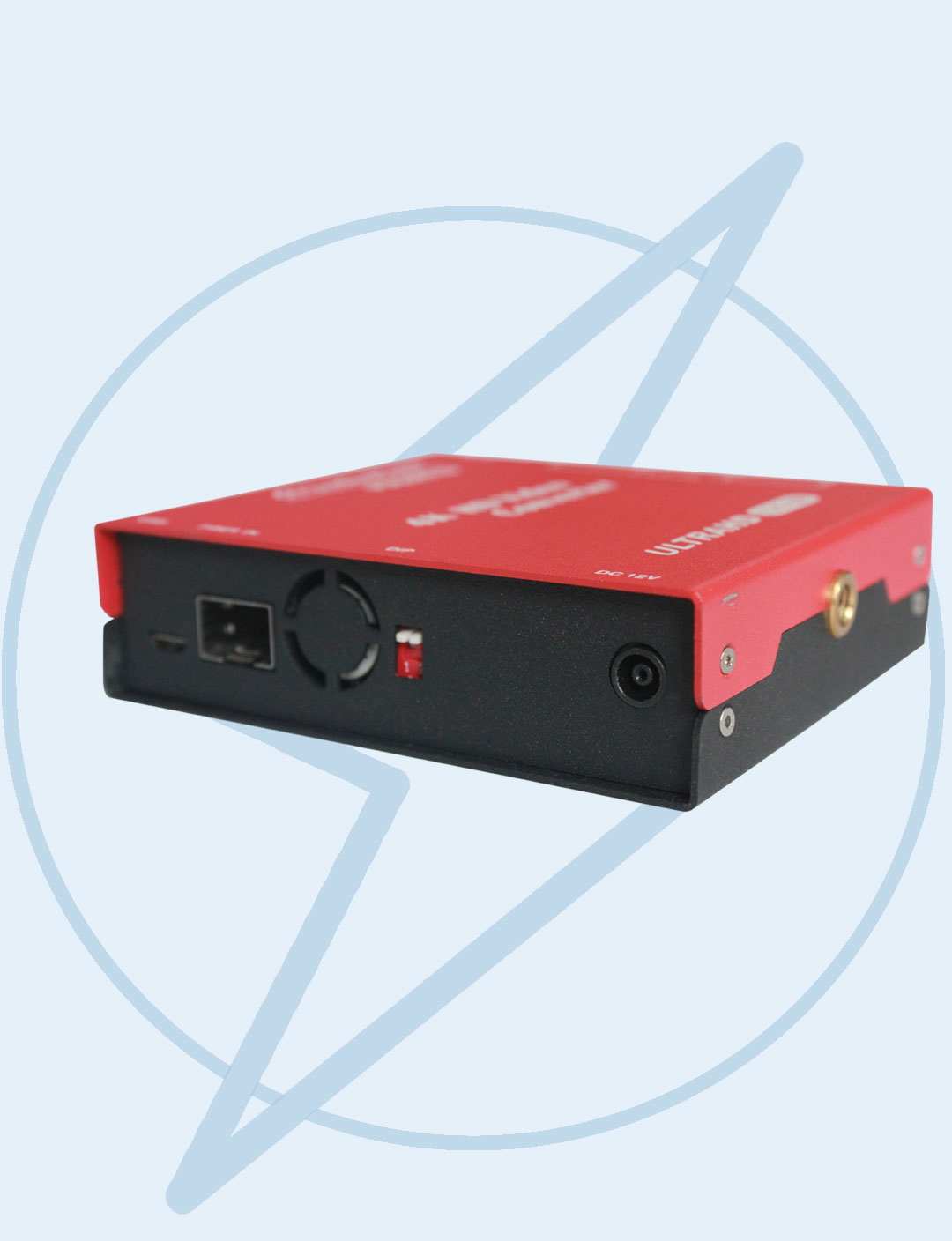

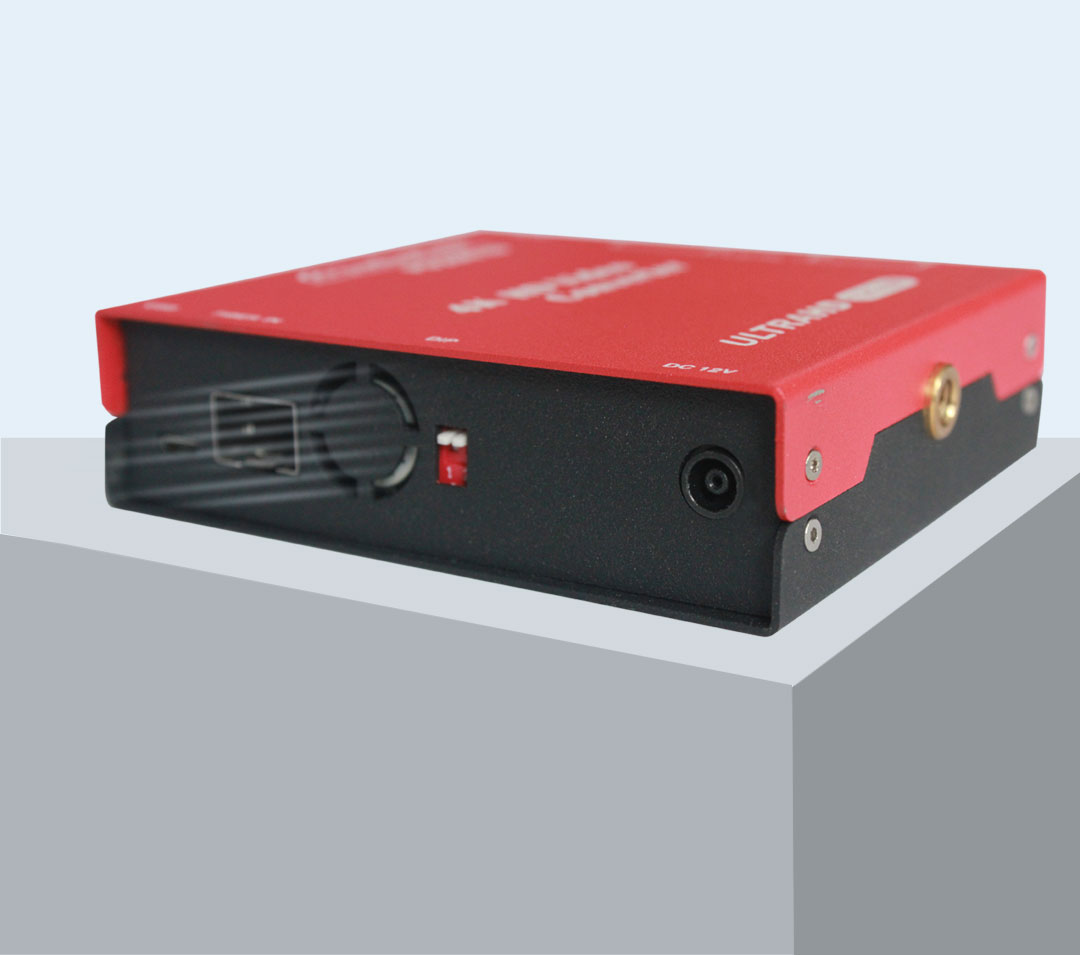

Stable power supply,no black screen
PD2091D 4K SDI demux, support DC12V power input, normal safe power supply, plug and play.

Not hot to use for a long time
PD2091D 4K SDI demux, in order to make the device run longer, we set up a small fan
inside the small body to easily dissipate heat.

Unique design
PD2091D 4K SDI demux, designed a unique “strange-hand” hole position for the
basic camera monitoring (UK 1/4 screw), on-site monitoring to build at any time,
making the transmission closer.

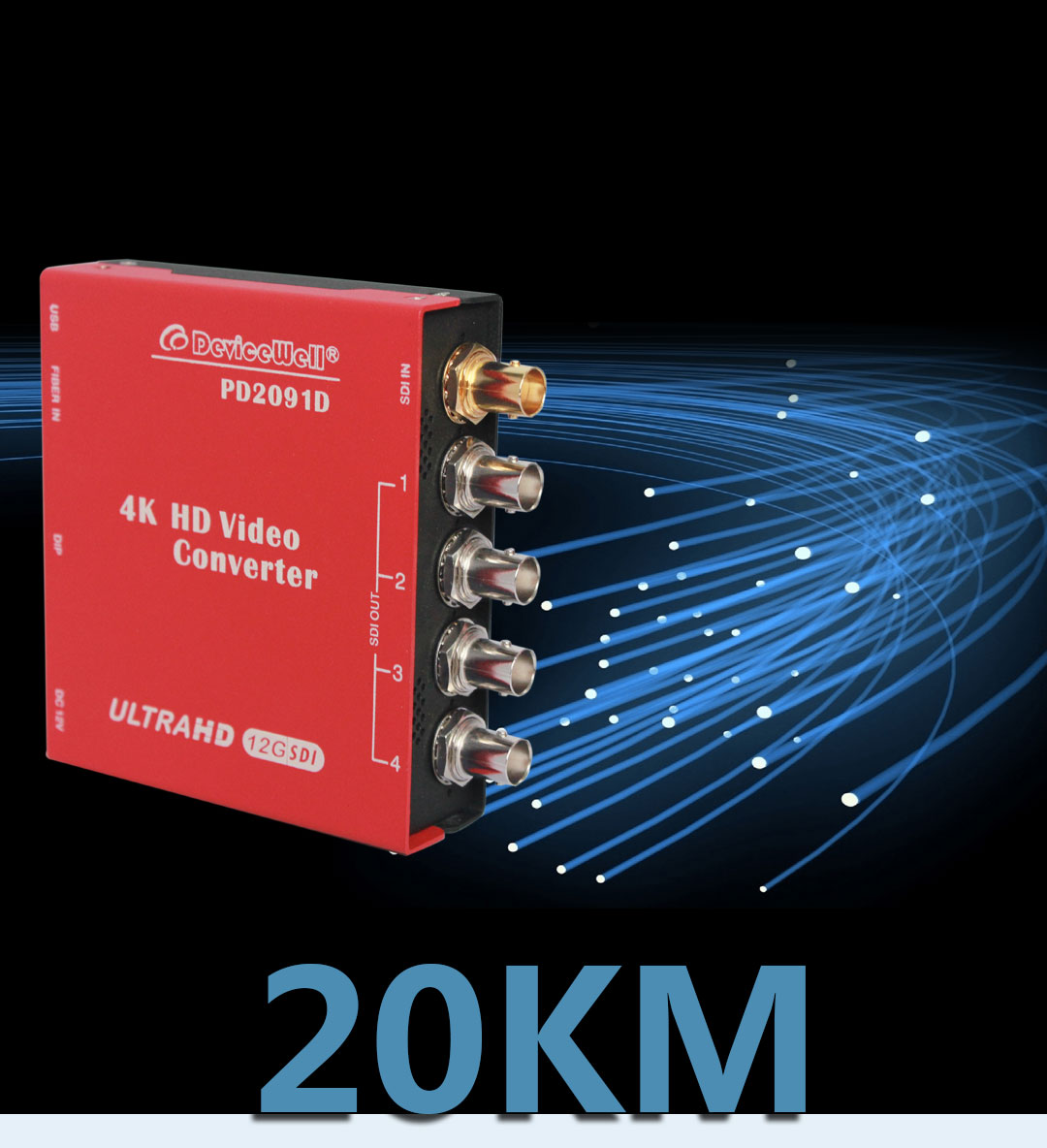

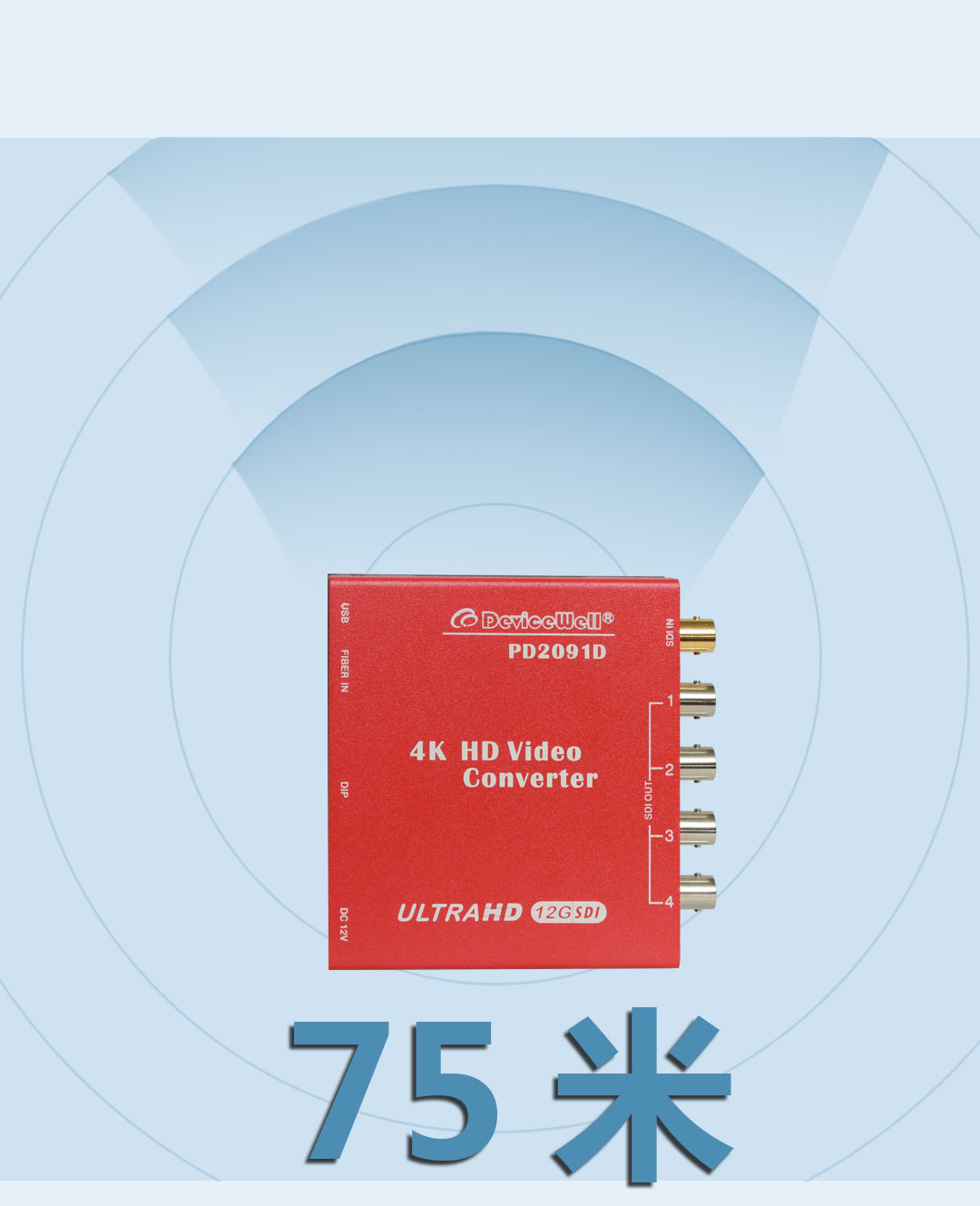

Long distance transmission
PD2091D 4K SDI demux has an output drive distance of more than 75 meters for 12G SDI.

PD2091D 4K SDI demux, 12G optical signal uses standard SFP optical module, standard
transmission distance is 20KM.

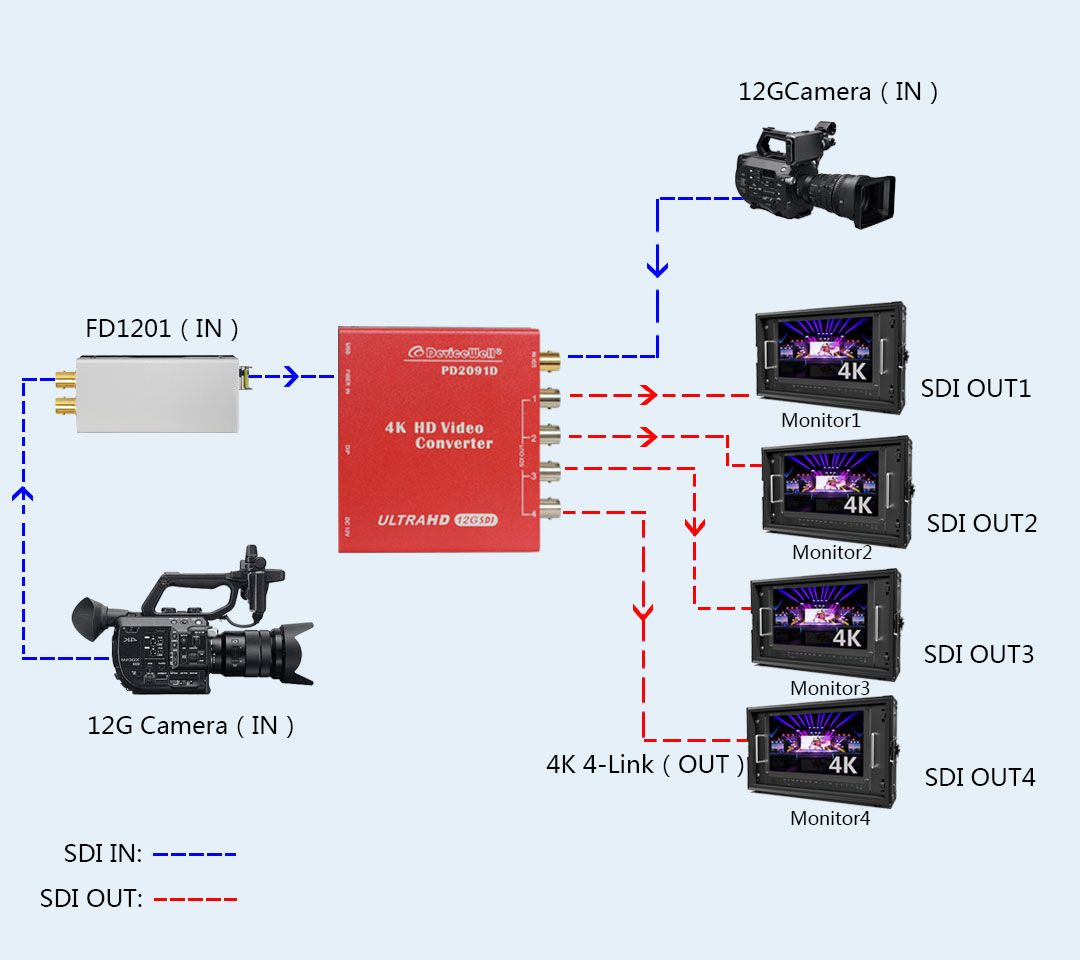

Application

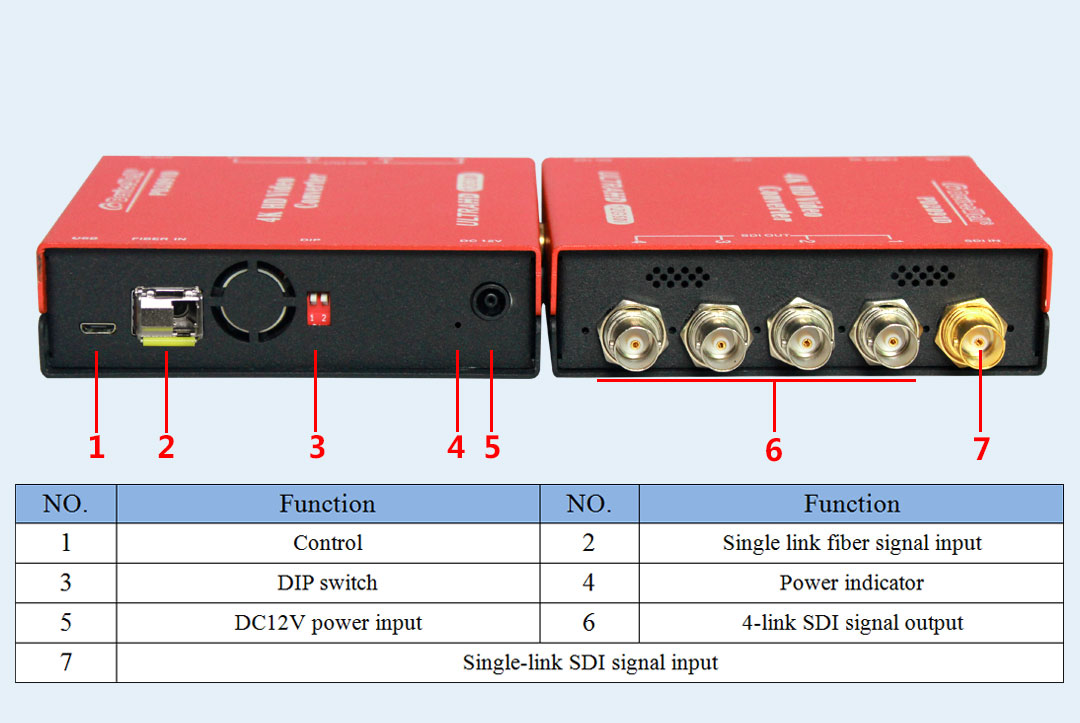

Interfaces

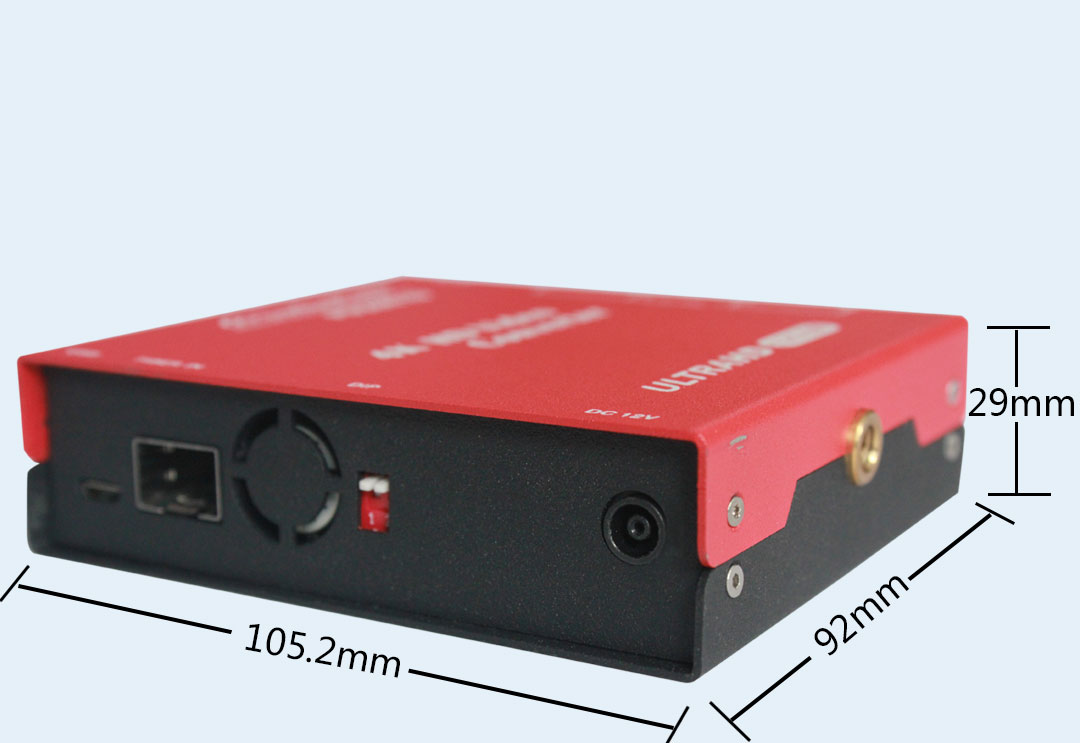

Size
PD2091D 4K SDI Demux, size: 105.2*92*29MM.
