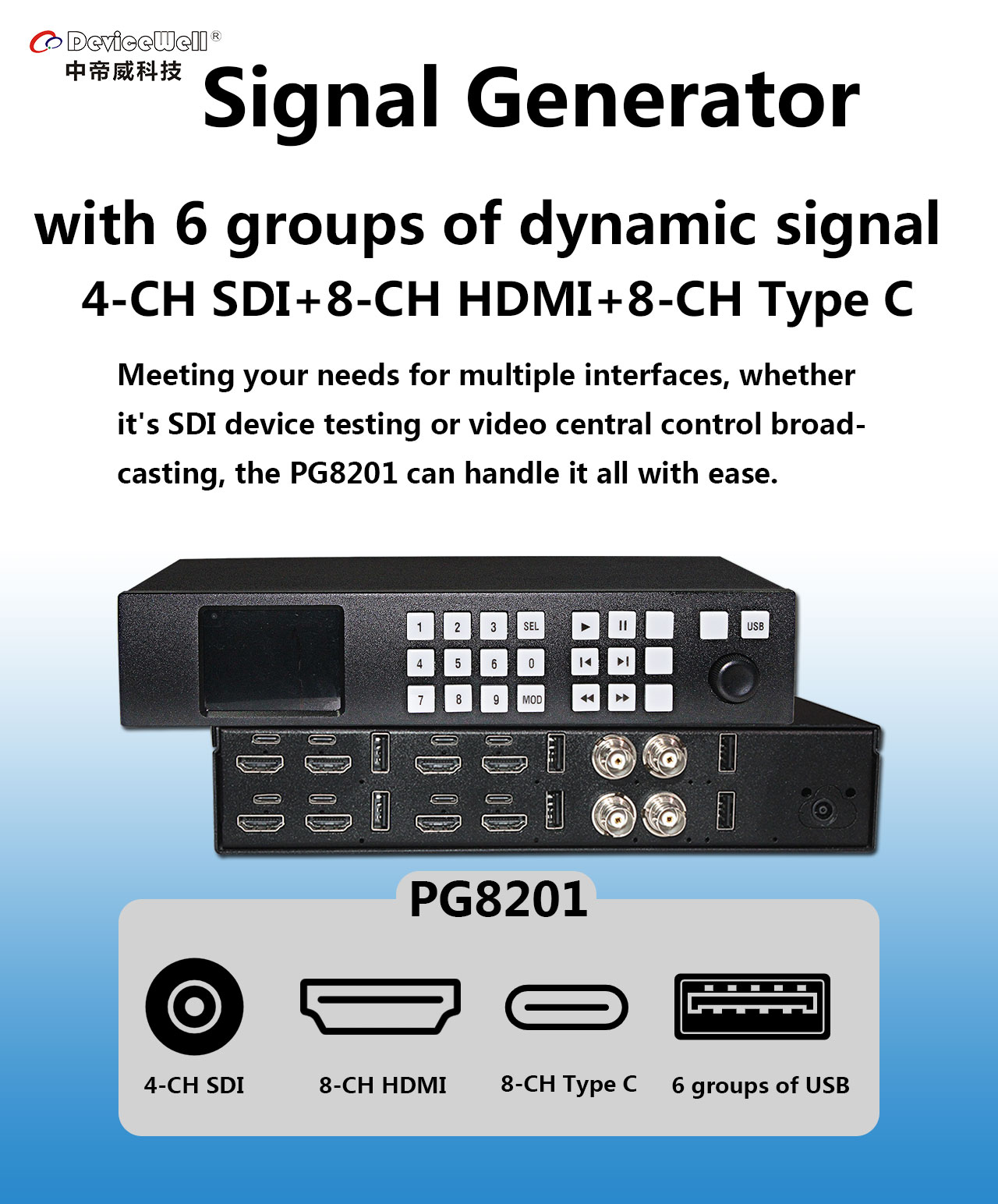

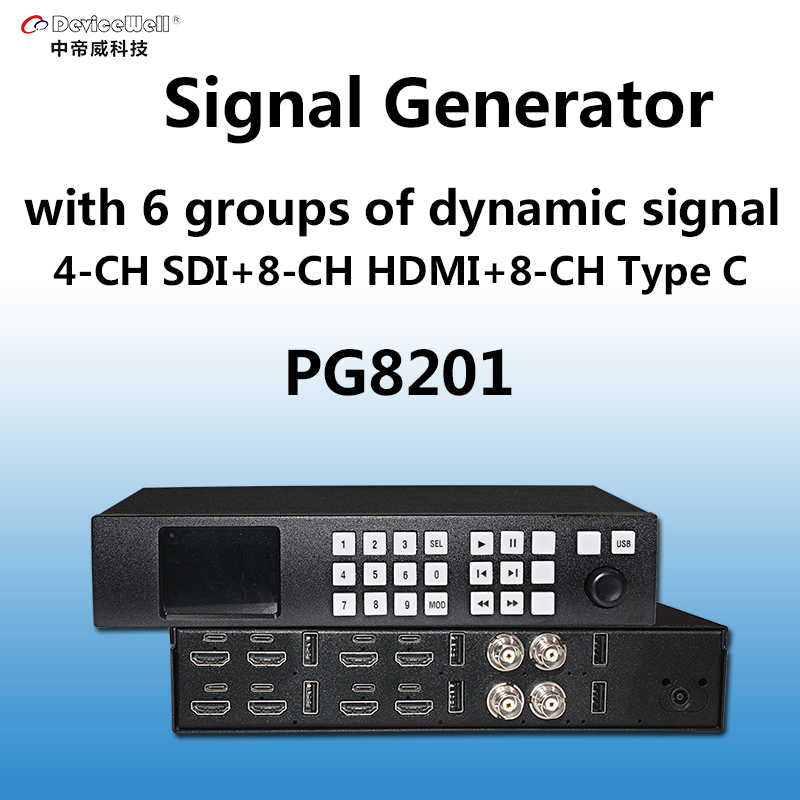

PG8201 Signal Generator( 4xSDI+8xHDMI+8xType C dynamic signal)
|
|
DeviceWell multi-channel SDI dynamic video signal generator, standard half 1U chassis, supports computer room installation, equipment supports 6 groups of 4 serial SDI digital signals+8 HDMI+8 Type C signal outputs, modular design, interchangeable with other interfaces. The module has built-in USB video playback, supports multiple video formats. The system supports up to 1080P60 resolution and is backward compatible. Can be widely used for SDI video dynamic testing. It can be used for SDI equipment testing and video central control broadcasting industries. Product Features: ◇ 4 channels and 2 groups of different SDI signal outputs ◇ 8 channels and 4 different HDMI signal outputs ◇ 8 channels and 4 groups of different Type C signal outputs ◇ Supports 270M/1.485G/2.97G SD/HD/3G SDI signals ◇ 1080P/1080I/720P/480I/6251 and other video formats ◇Each group has independent USB playback, with different resolutions and program sources available for selection ◇Each group independently controls playback, pause, up/down selection of programs, resolution changes, etc ◇ Support keypad control ◇ Half 1U chassis, standard DC 12V power system |

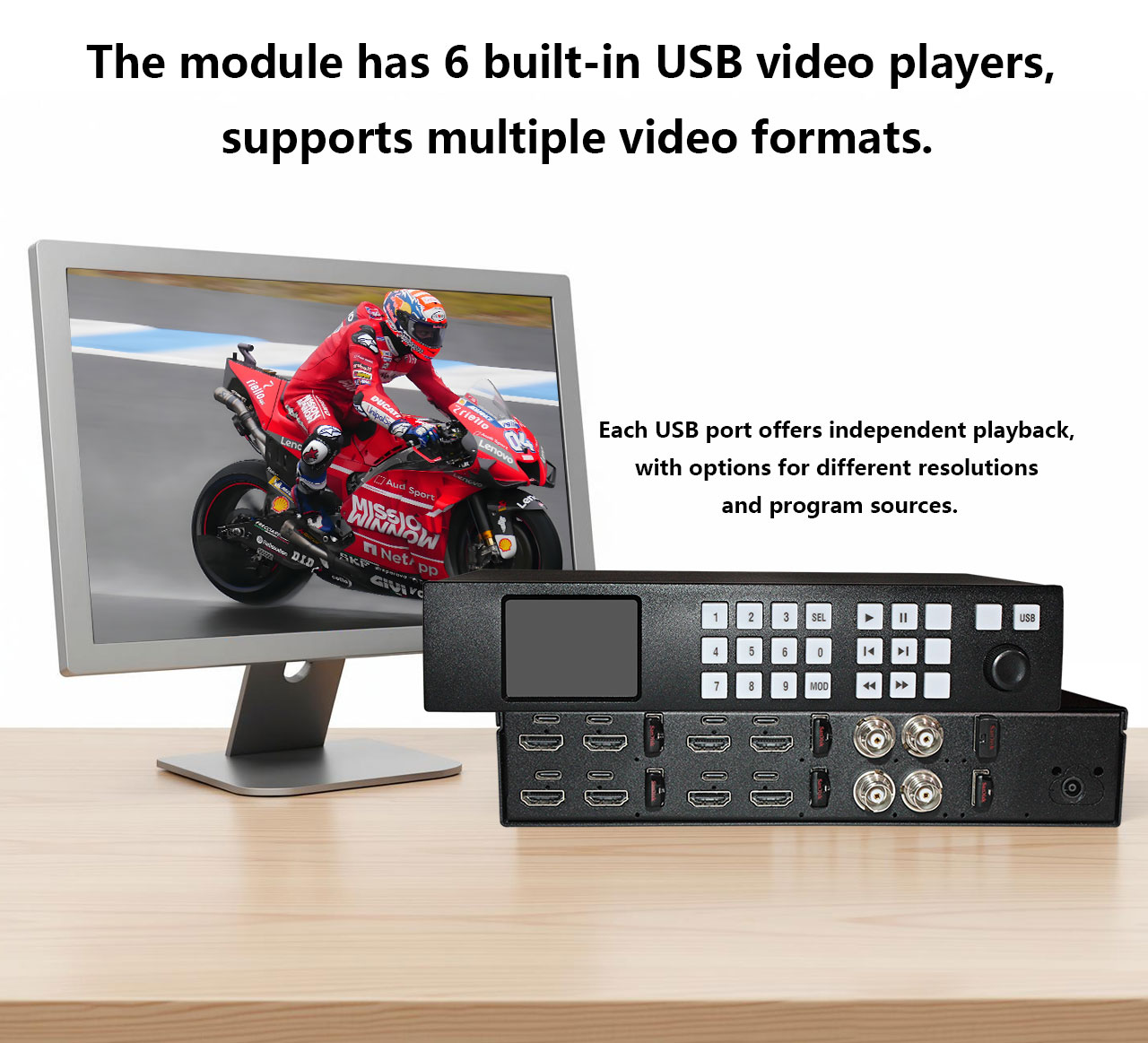

The module has 6 built-in USB video players, supports multiple video formats.
Each USB port offers independent playback, with options for different resolutions and program sources.

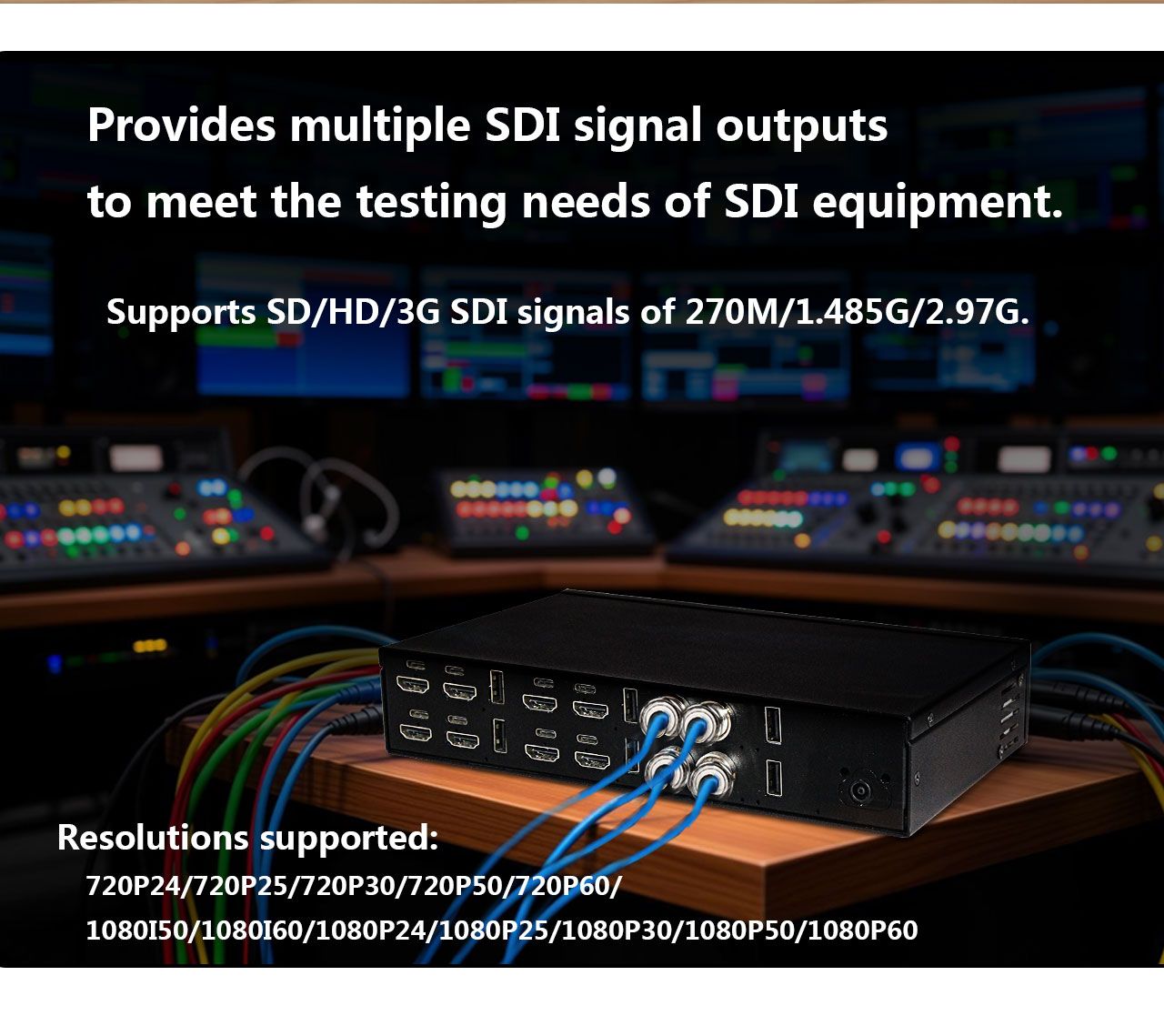

Provides multiple SDI signal outputs to meet the testing needs of SDI equipment.
Supports 270M/1.485G/2.97G SD/HD/3G SDI
Resolutions supported:720P24/720P25/720P30/720P50/720P60/ 1080I50/1080I60/1080P24/1080P25/1080P30/1080P50/1080P60

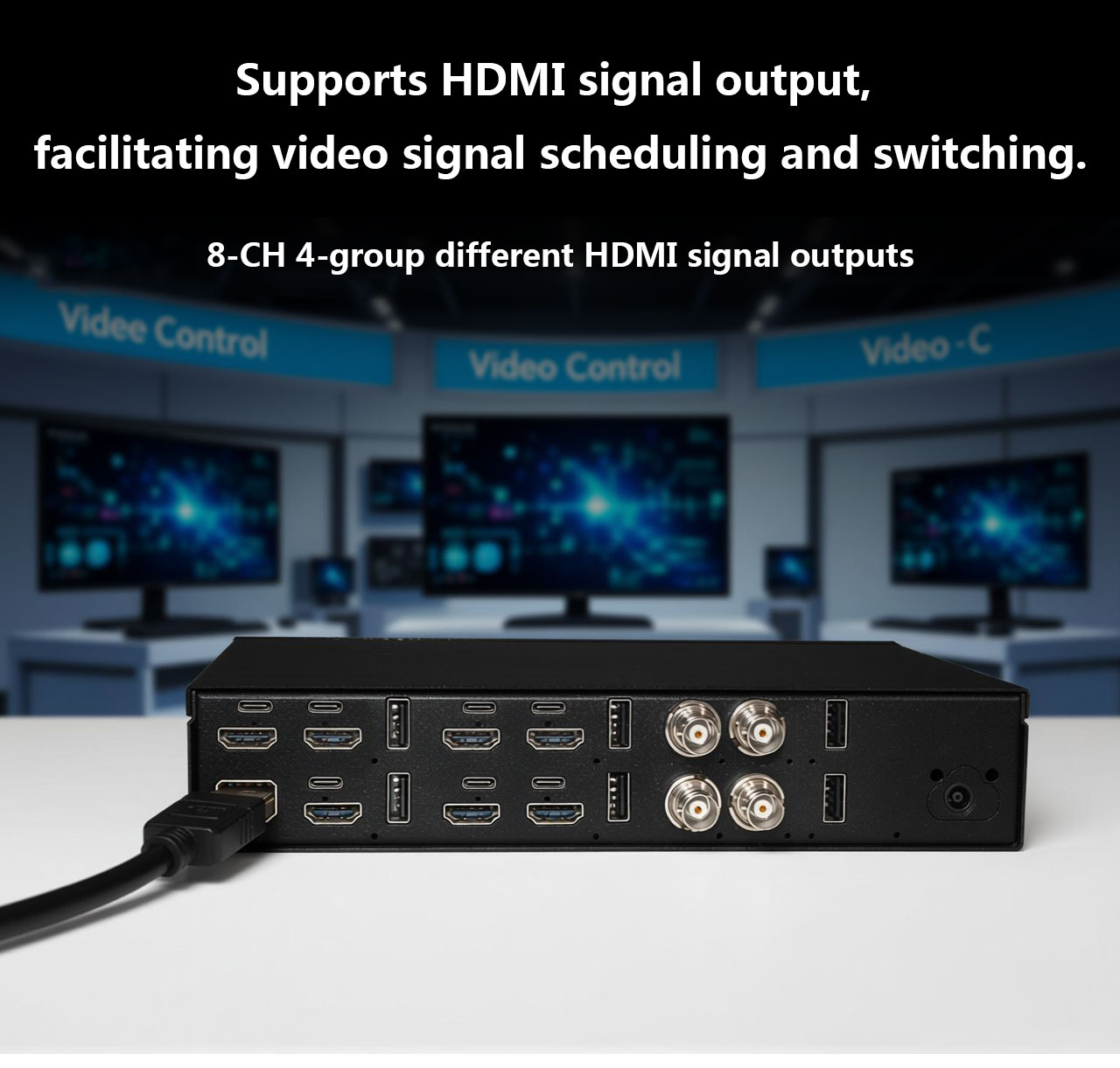

Supports HDMI signal output, facilitating video signal scheduling and switching.
8-CH 4-group different HDMI signal outputs

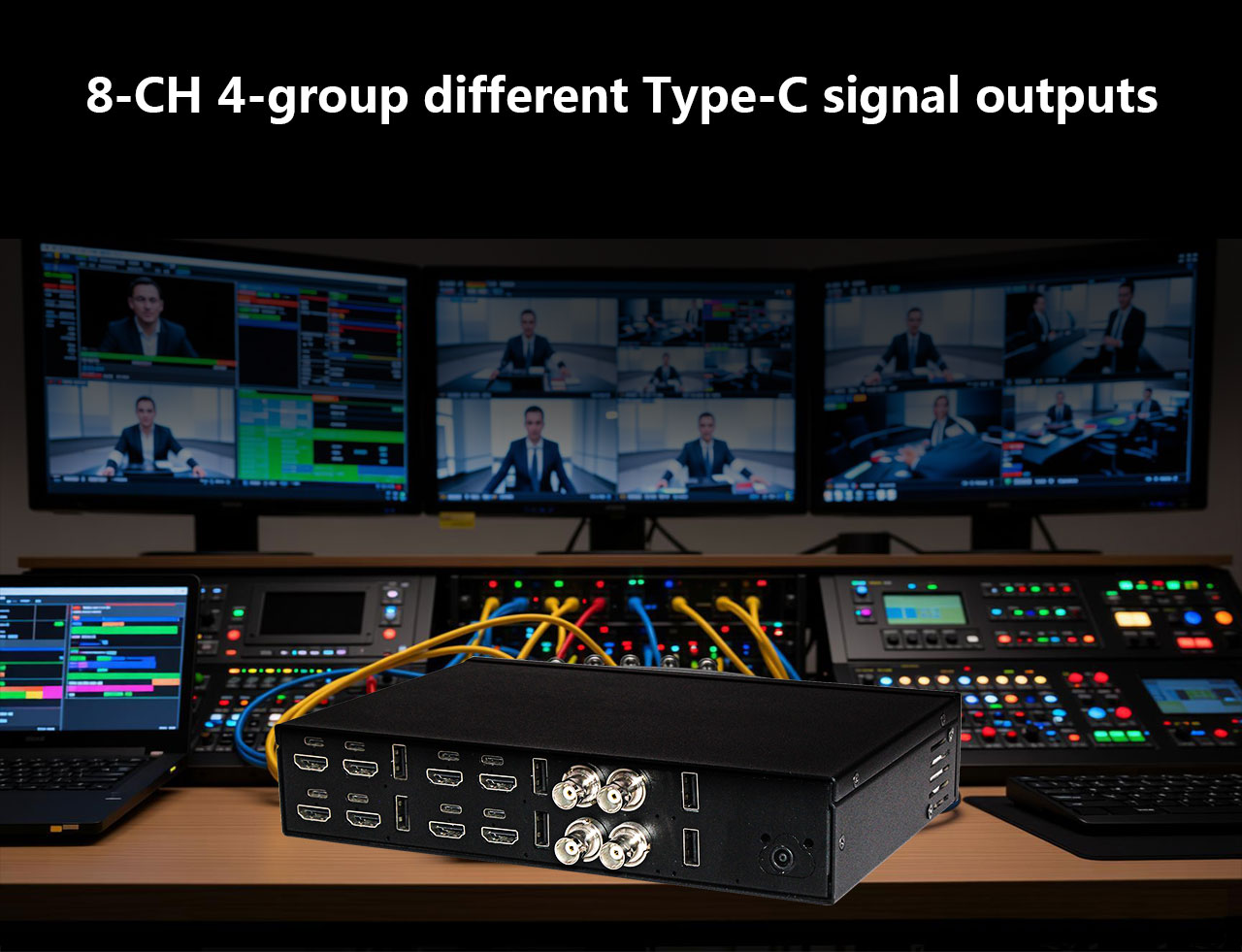

8-CH 4-group different Type-C signal outputs

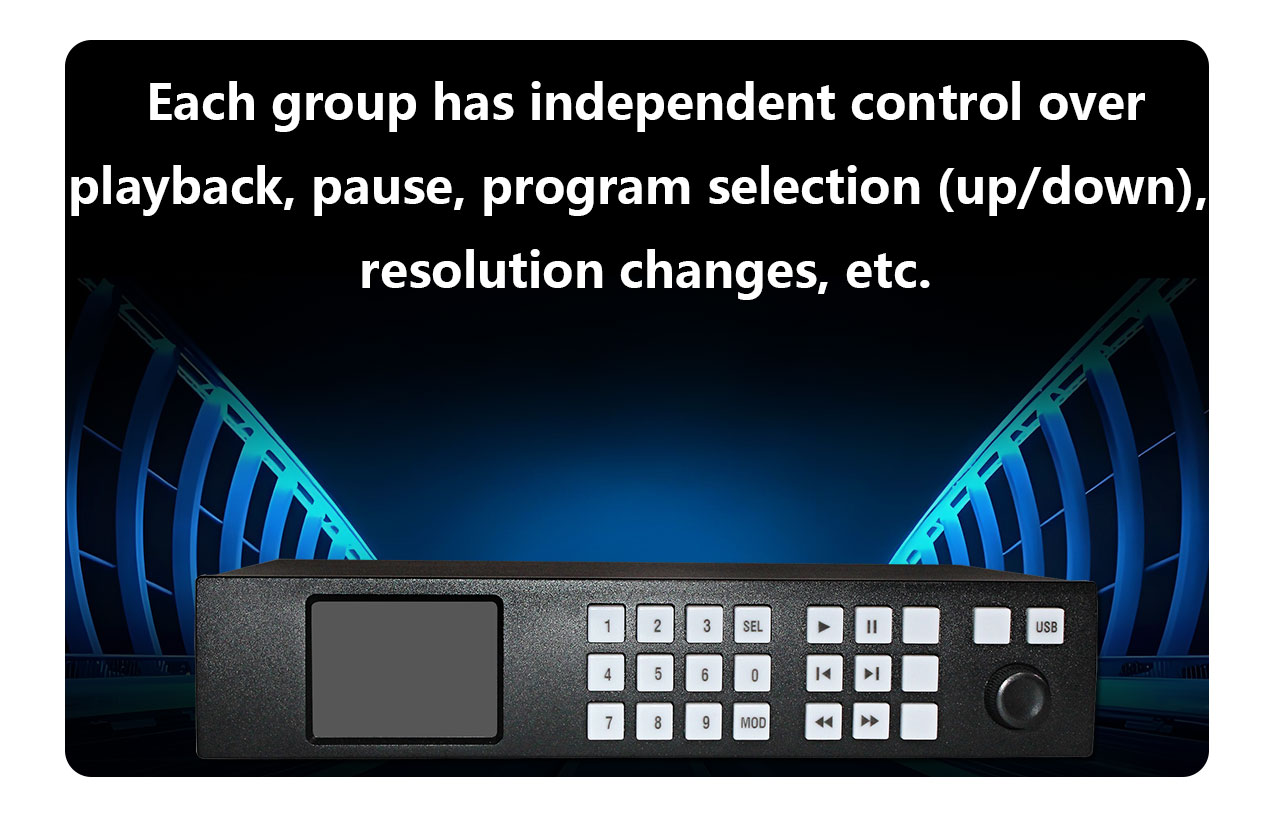

Each group has independent control over playback, pause, program selection (up/down), resolution changes, etc.

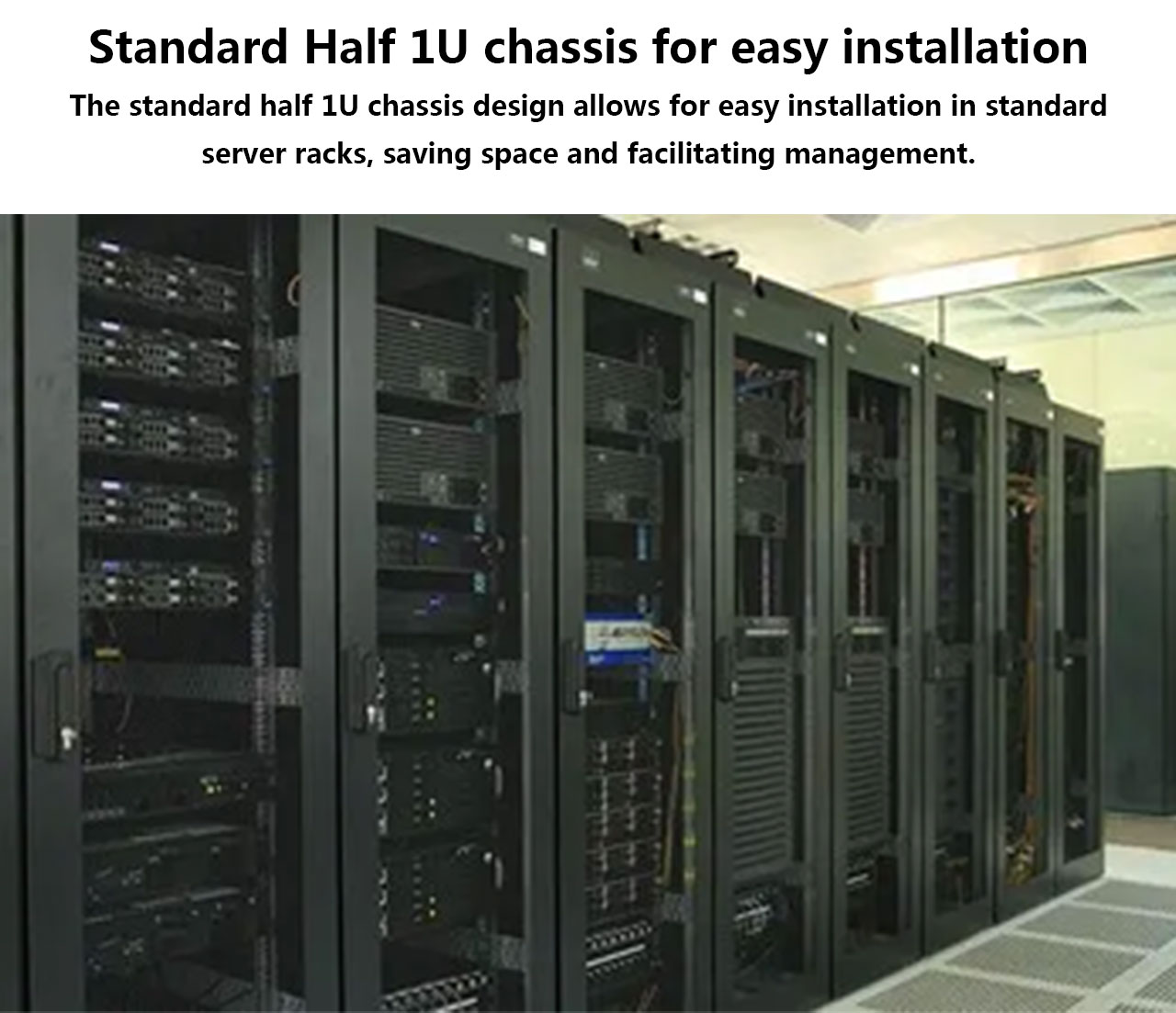

Standard Half 1U chassis for easy installation
The standard half 1U chassis design allows for easy installation in standard server racks, saving space and facilitating management.

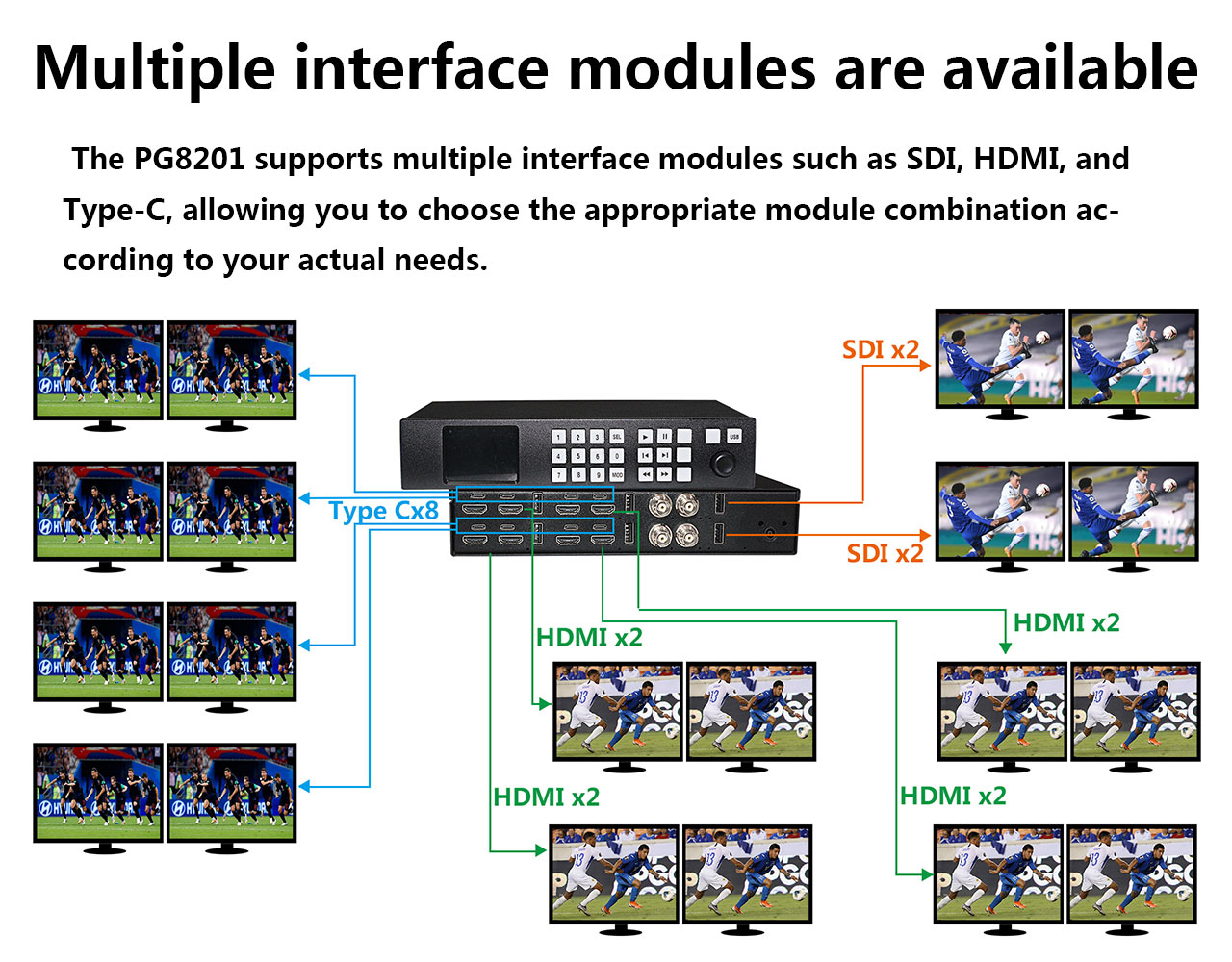

Multiple interface modules are available
The PG8201 supports multiple interface modules such as SDI, HDMI, and Type-C, allowing you to choose the appropriate module combination according to your actual needs.

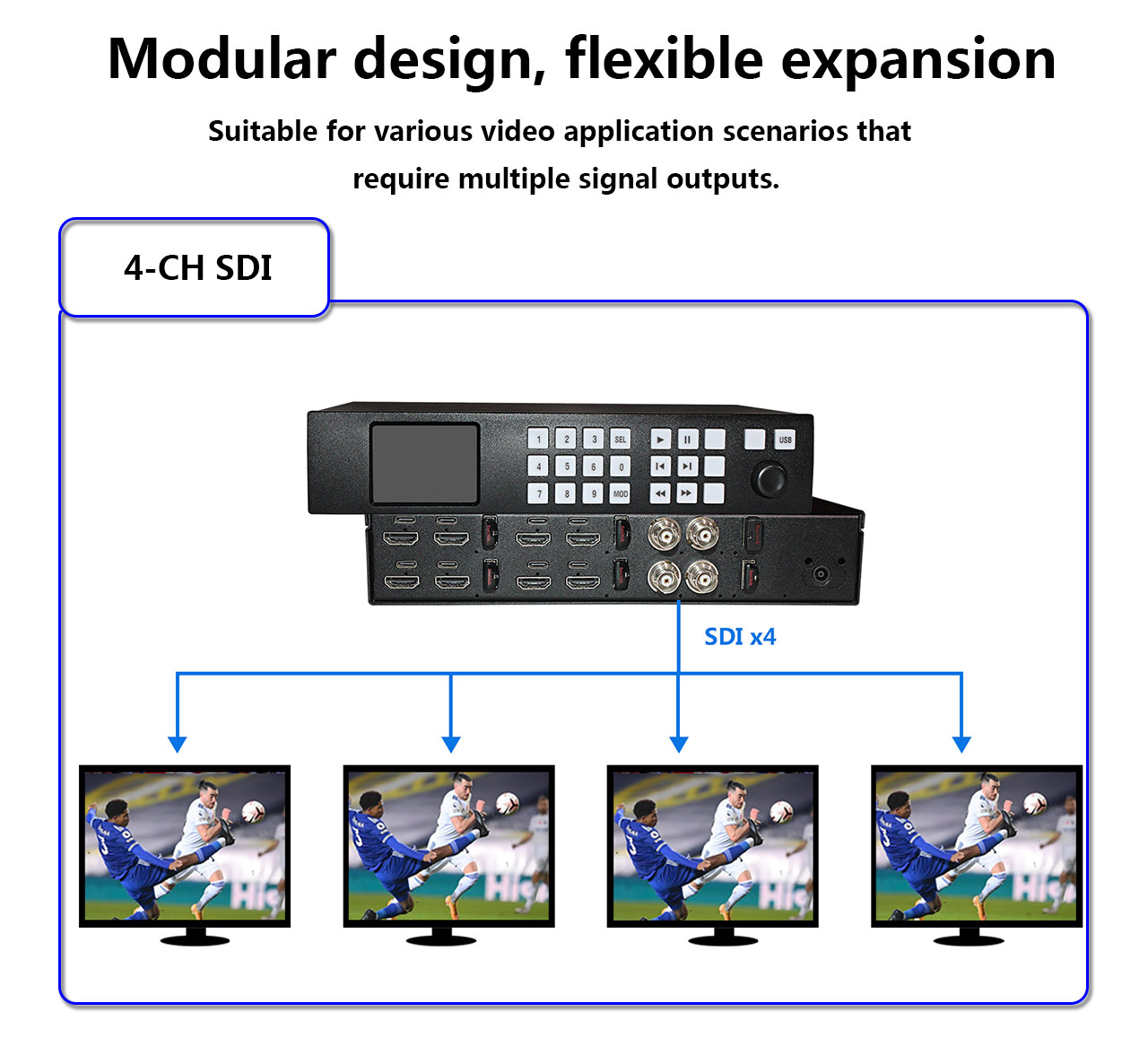

Modular design, flexible expansion
Suitable for various video application scenarios that require multiple signal outputs.

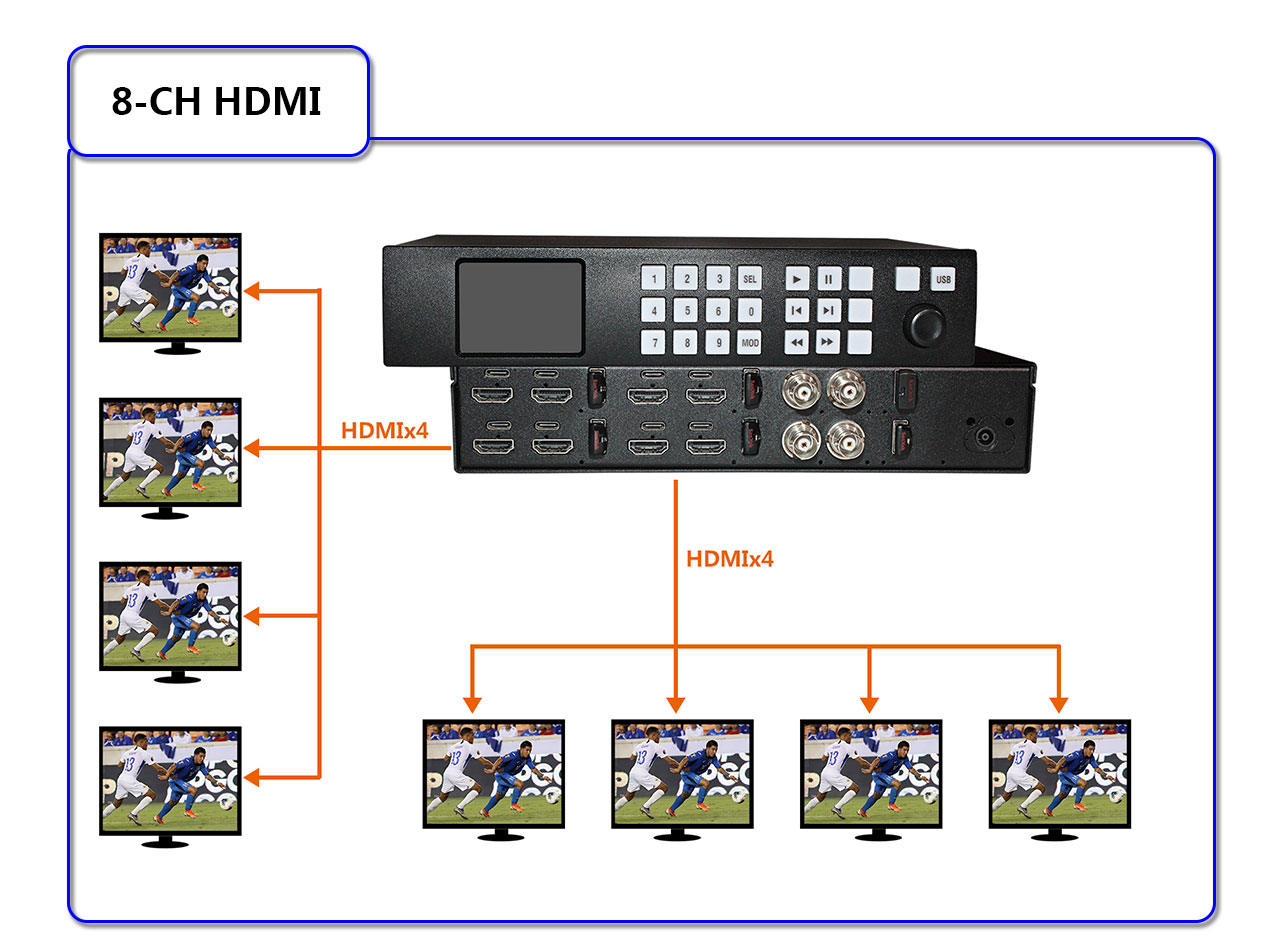

8-CH HDMI

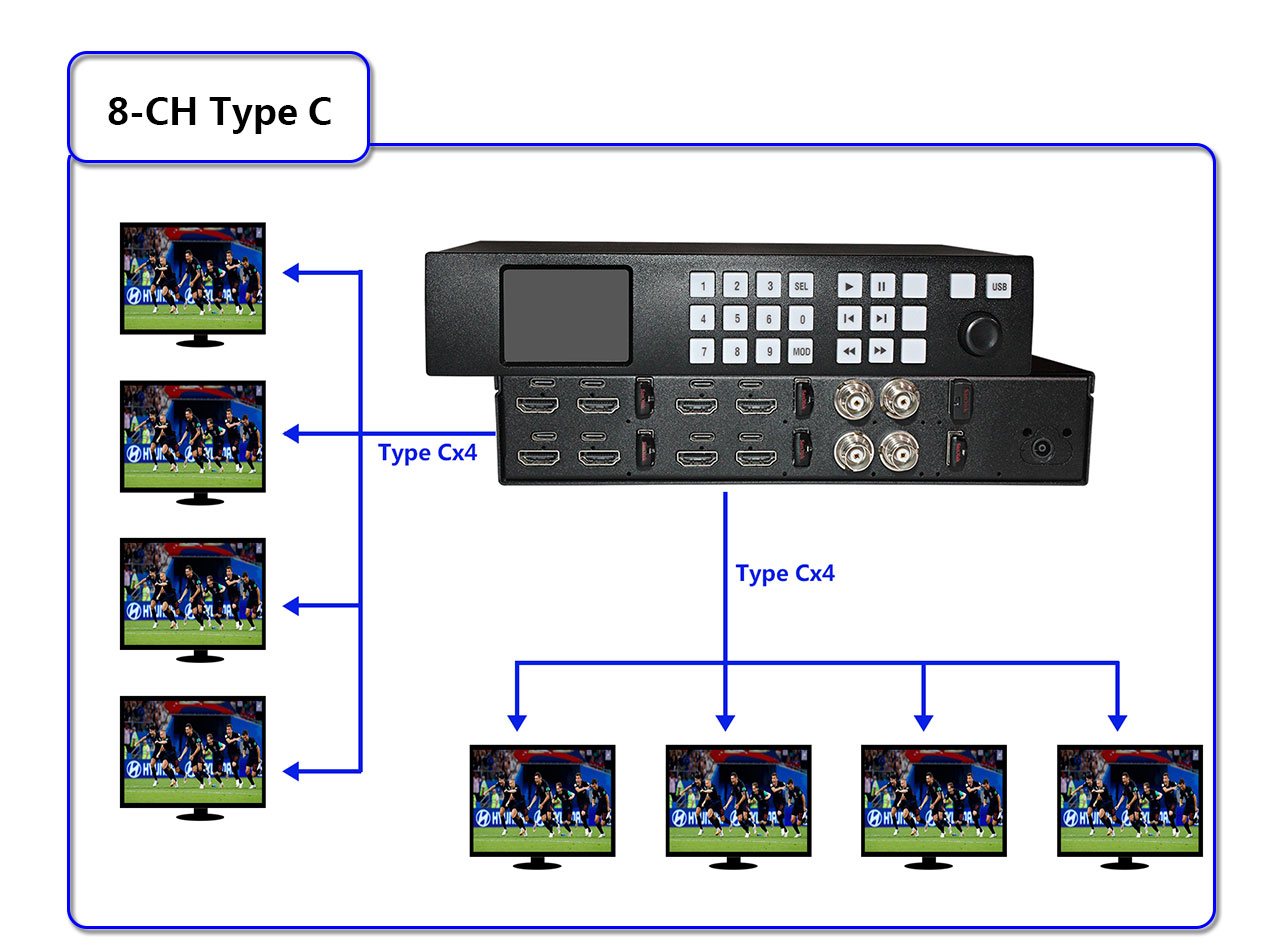

8-CH Type C

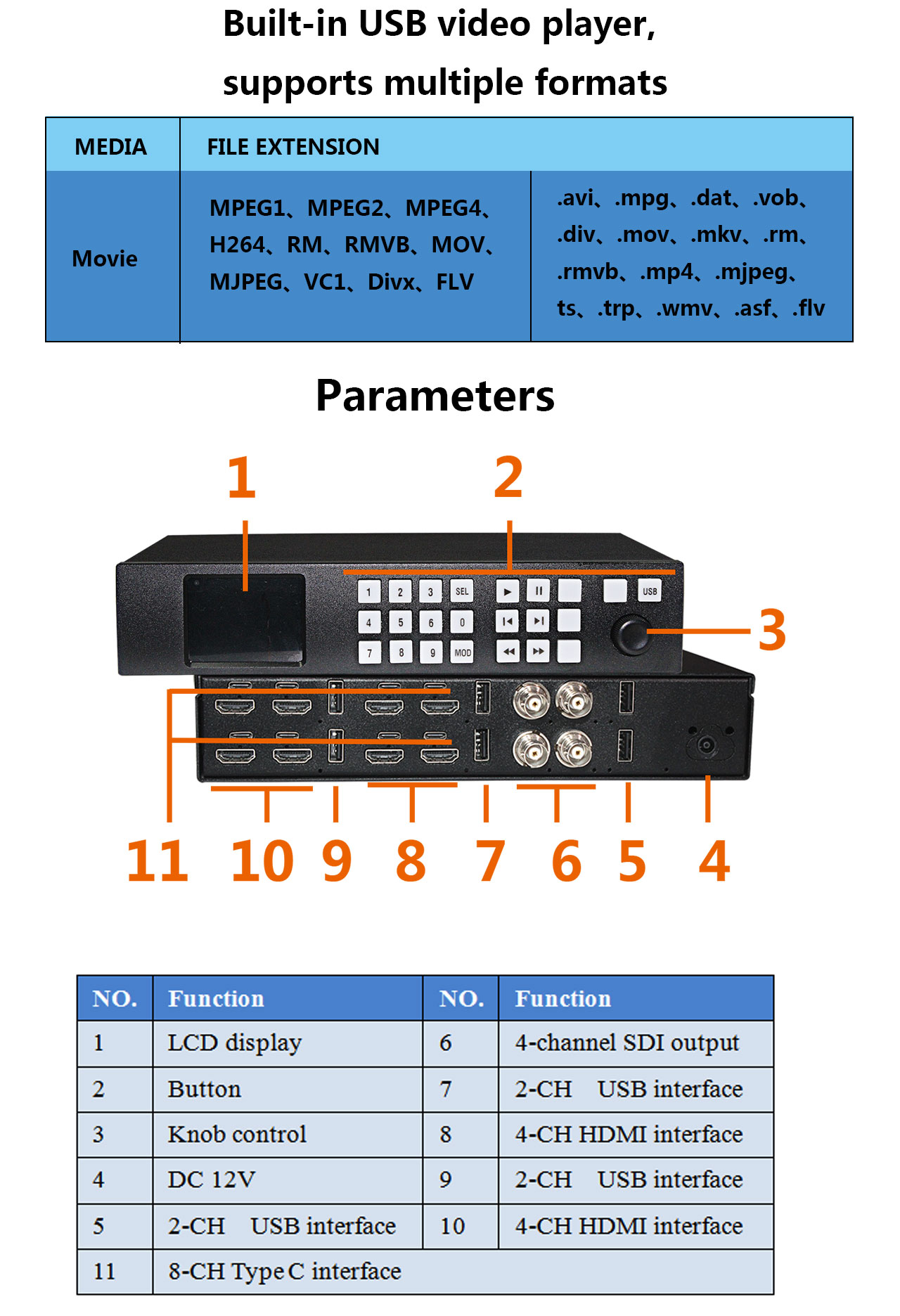

Built-in USB video player, supports multiple formats

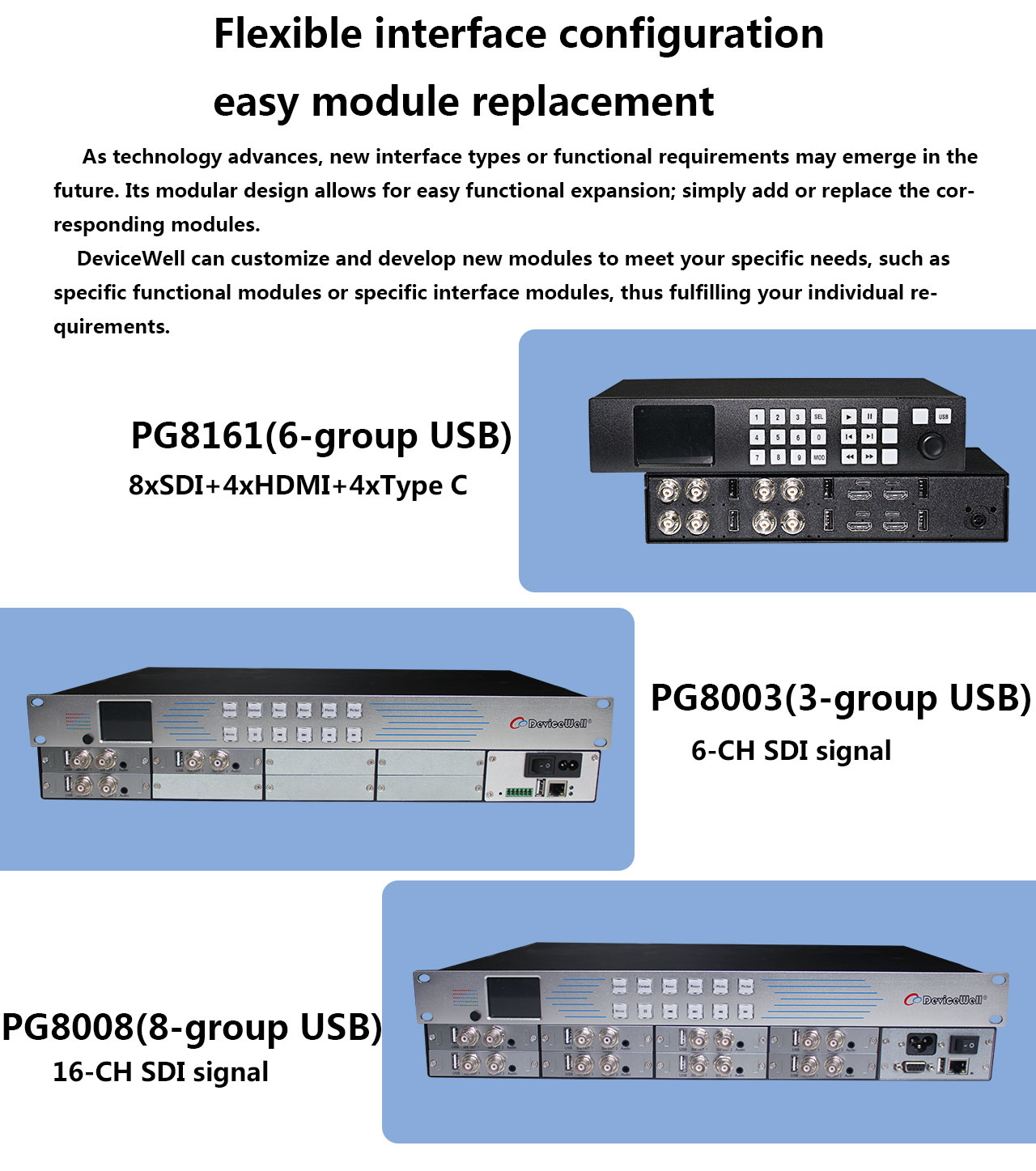

Flexible interface configuration easy module replacement
As technology advances, new interface types or functional requirements may emerge in the future. Its modular design allows for easy functional expansion; simply add or replace the corresponding modules.
DeviceWell can customize and develop new modules to meet your specific needs, such as specific functional modules or specific interface modules, thus fulfilling your individual requirements.
