Support 4K Signal Input 4xHDMI+1xDP Video Switcher-HDS7105P



   Product characteristics

Switcher supports 4 HDMI + 1 DP signal inputs, a total of 5 video signals. The external preview signal can be output simultaneously. The switcher supports HDMI embedded audio + external analog audio. After mixed processing, it can be embedded in the output HDMI signal or output from the analog port. The resolution of all input signals is automatically adapted, and the output signal resolution can be selected according to requirements, which is quite flexible. For the needs of video switching such as radio and television, program production, live production of interviews and lectures, outdoor sports events, and school courseware production, the functions of the switcher can be fully met.



·Support RJ45 remote control
·Support DCB control
·Radio and television standard Tally interface
·Support GPI control
·Support foot pedal, control handle and other inputs
·Support 4K signal input
·Support 4xHDMI+1xDP input
·PGM output: 1xHDMI
·MULTIVIEW output: 1x HDMI
·Supports USB3.0streaming, lossless, non compressed transmission
·1xLINE IN
·1xLINE OUT
·2xMIC IN
·supports audio following and mixing functions
·Support for HDMI audio deblocking
·Support for special effects switching such as MIX/FADE
·Support for CUT hard switching and AUTO special effects switching
·Color bar test screen output can also be generated inside the device
·One-key screen freeze(STILL) function
·Supports one click FTB emergency black field function,
·Support PIP screen window function
·support Luma key, chroma key, key image and superimposed character function
·Supporting the supporting Devicewell TALLY light system
·Built in chassis temperature detection and intelligent fan control system

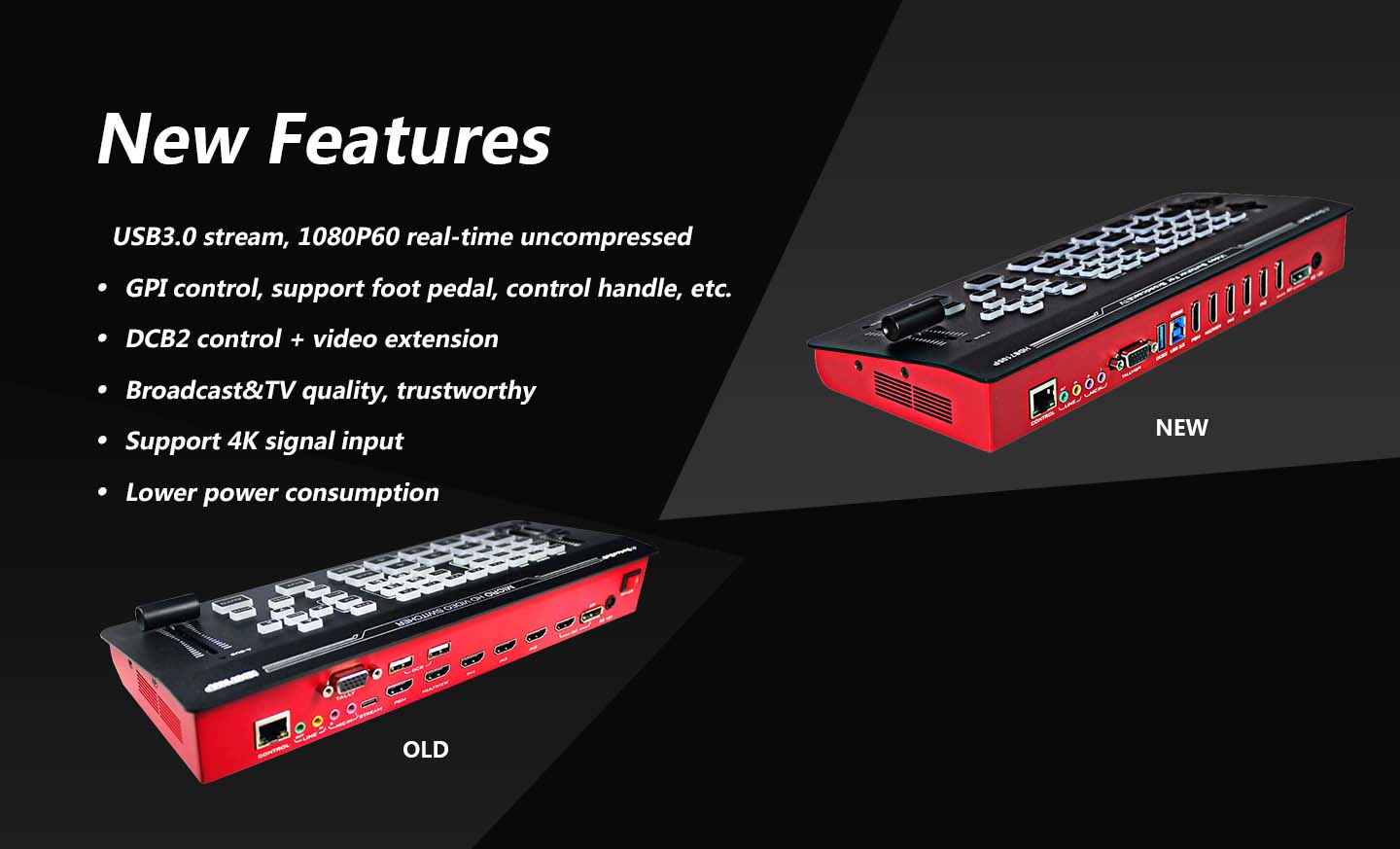

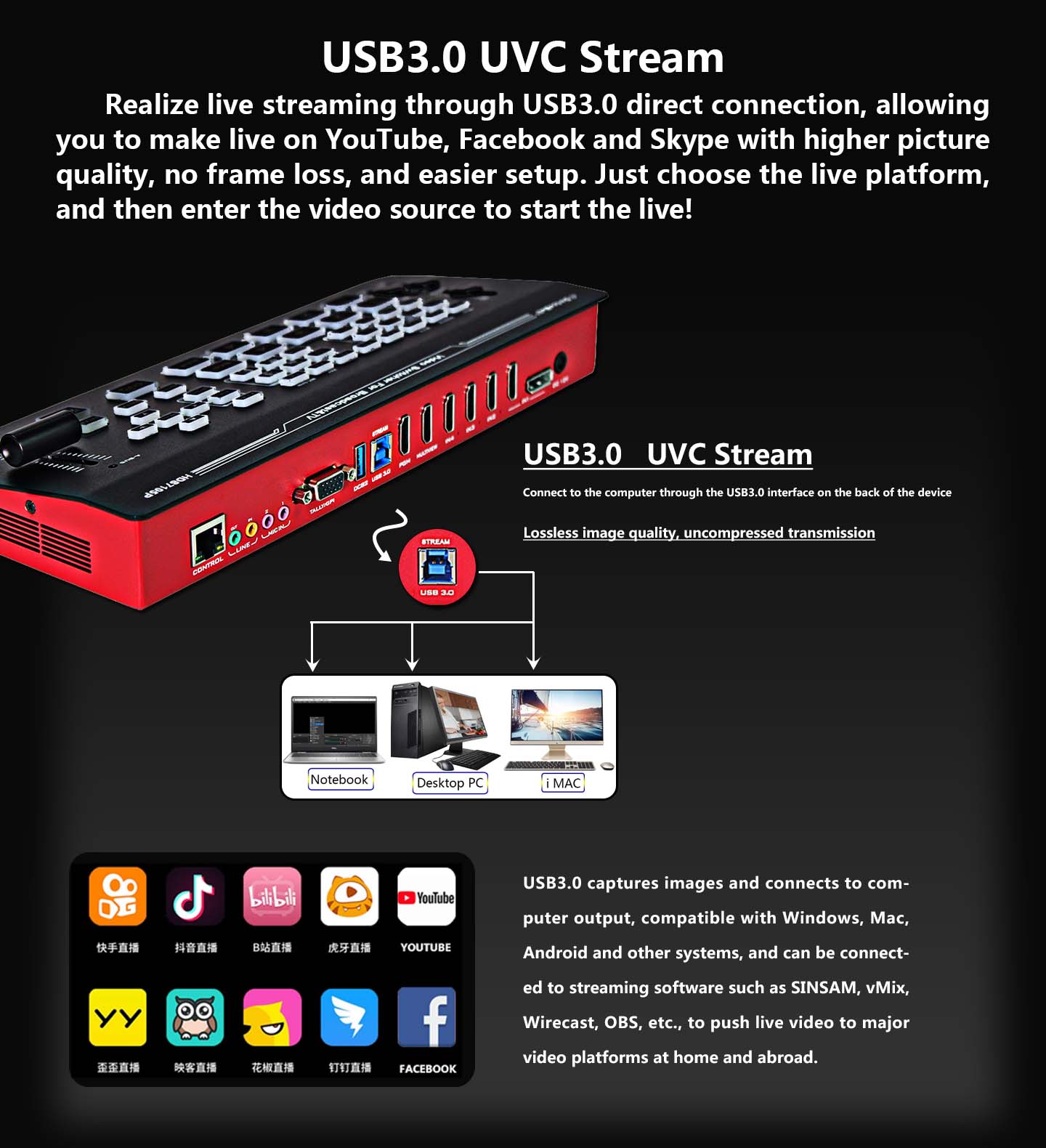

USB3.0 UVC Stream

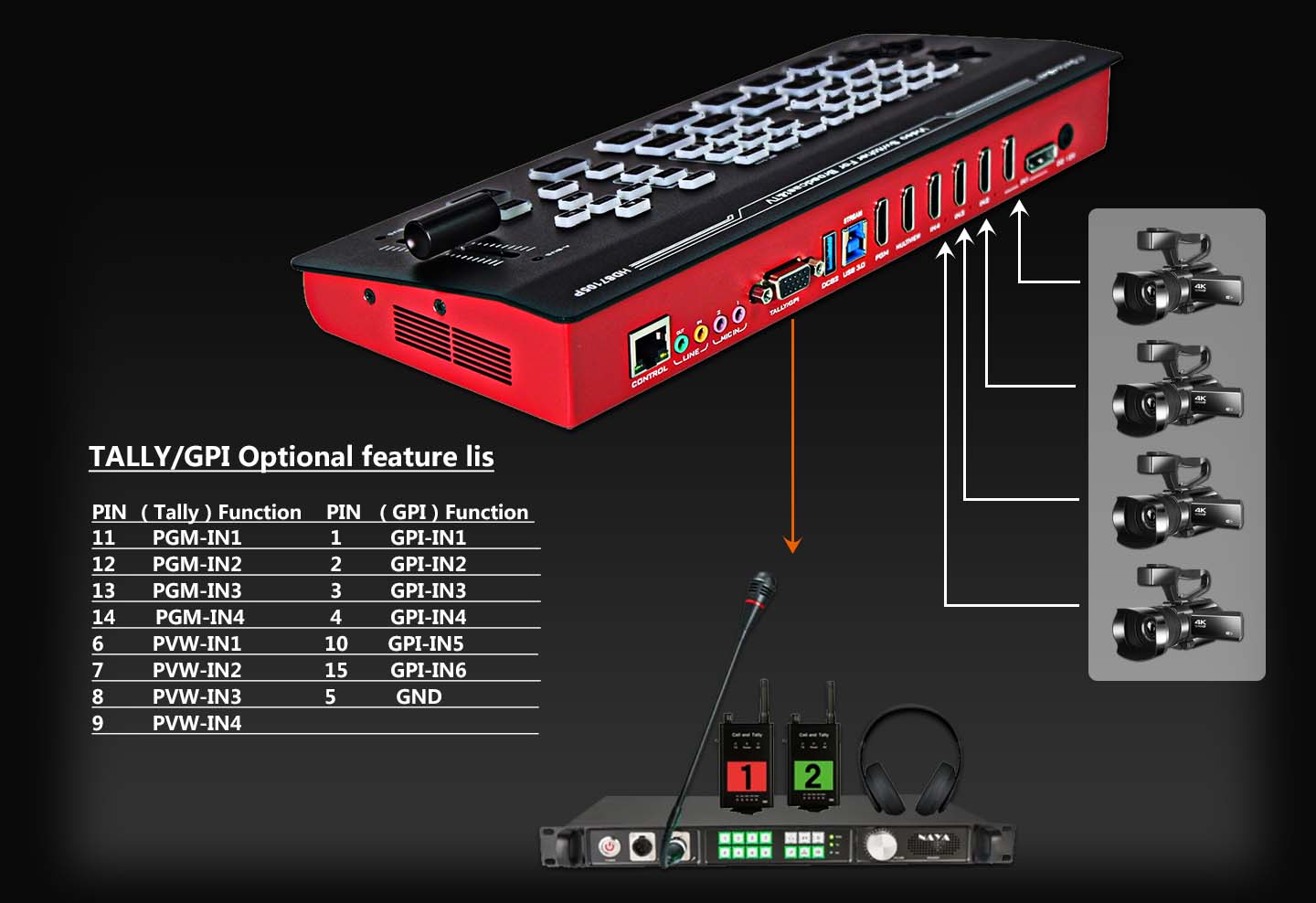

GPI control, foot pedal, control handle, etc.

GPI custom interface, convenient for users to remotely control and customize connected devices.



Docking Director Tally System

Broadcast & TV standard tally interface, HDS7105P is equipped with DB-15 tally interface, docking with the director tally system, so that the long-distance camera shooting can be controlled in real time to ensure that the output picture is accurate.

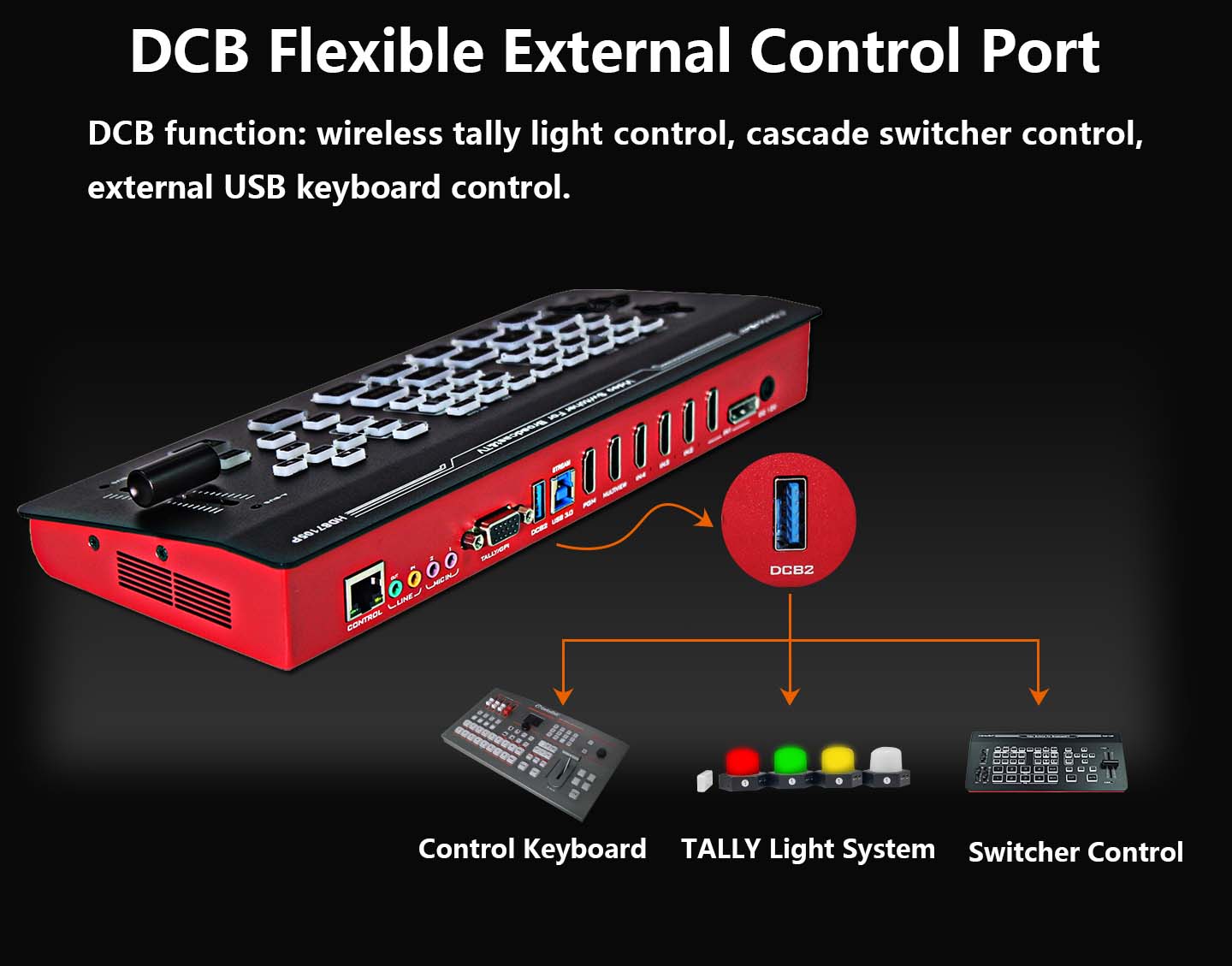

DCB Flexible External Control Port

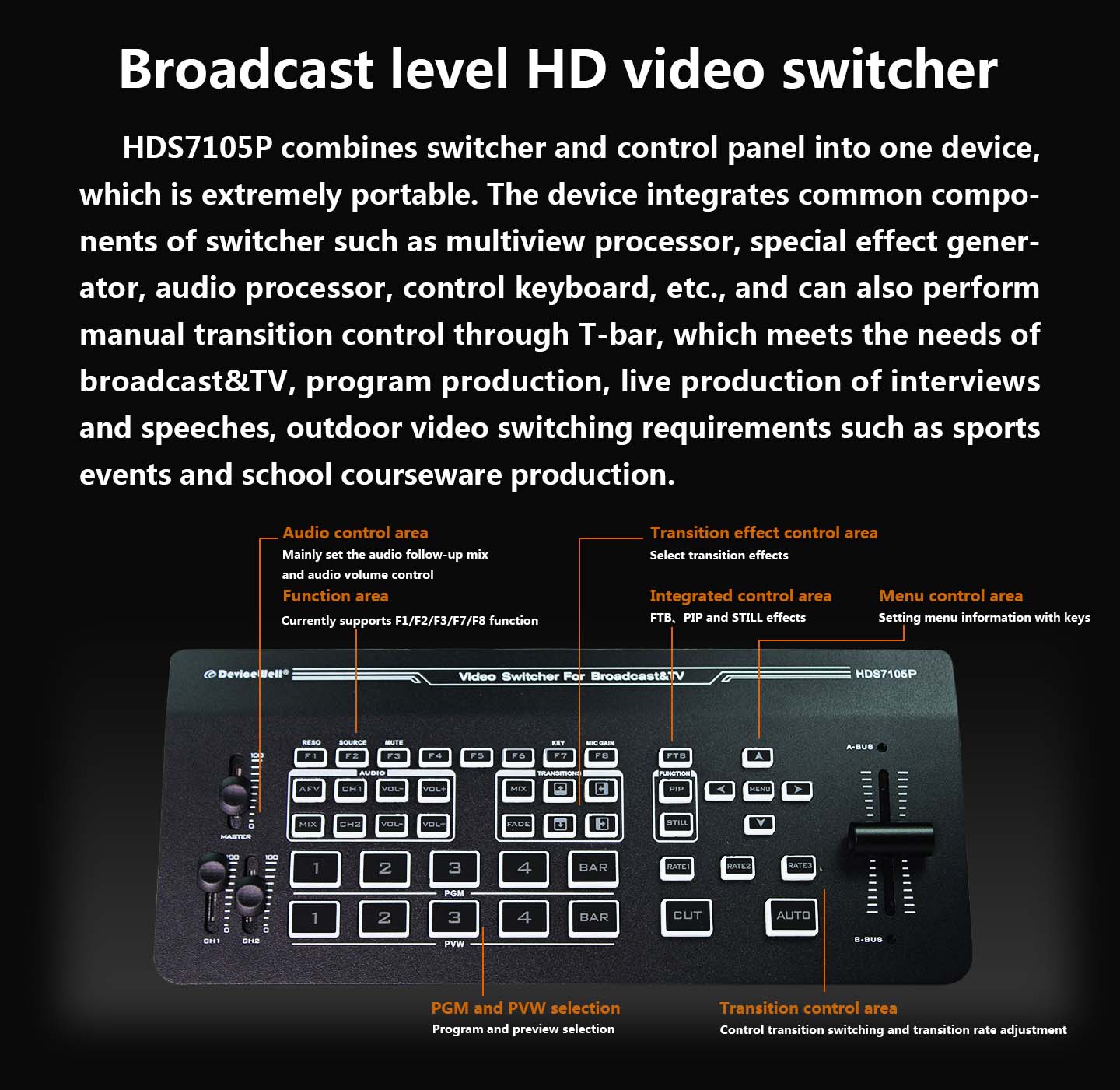

Broadcast level HD video switcher

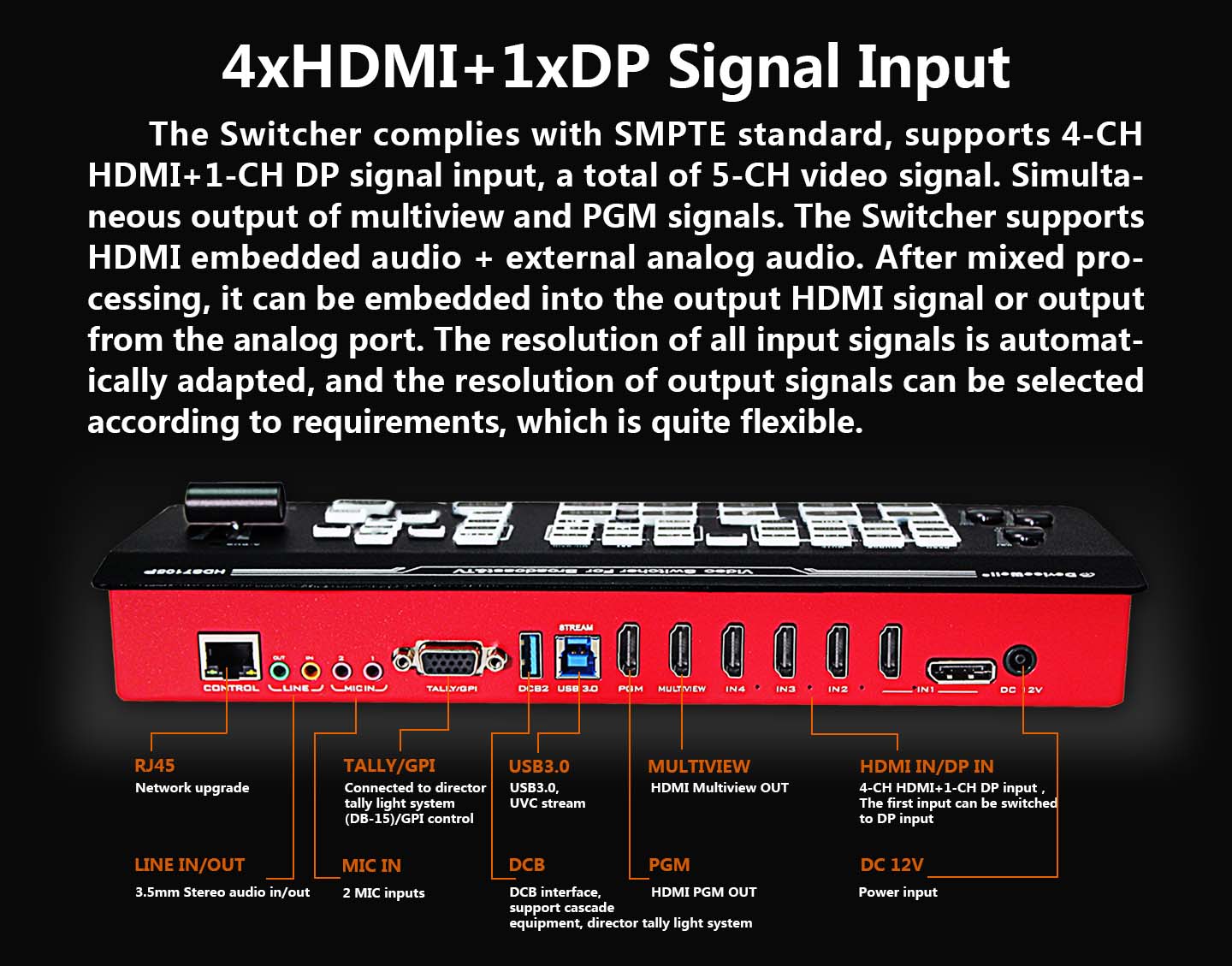

4xHDMI+1xDP Signal Input

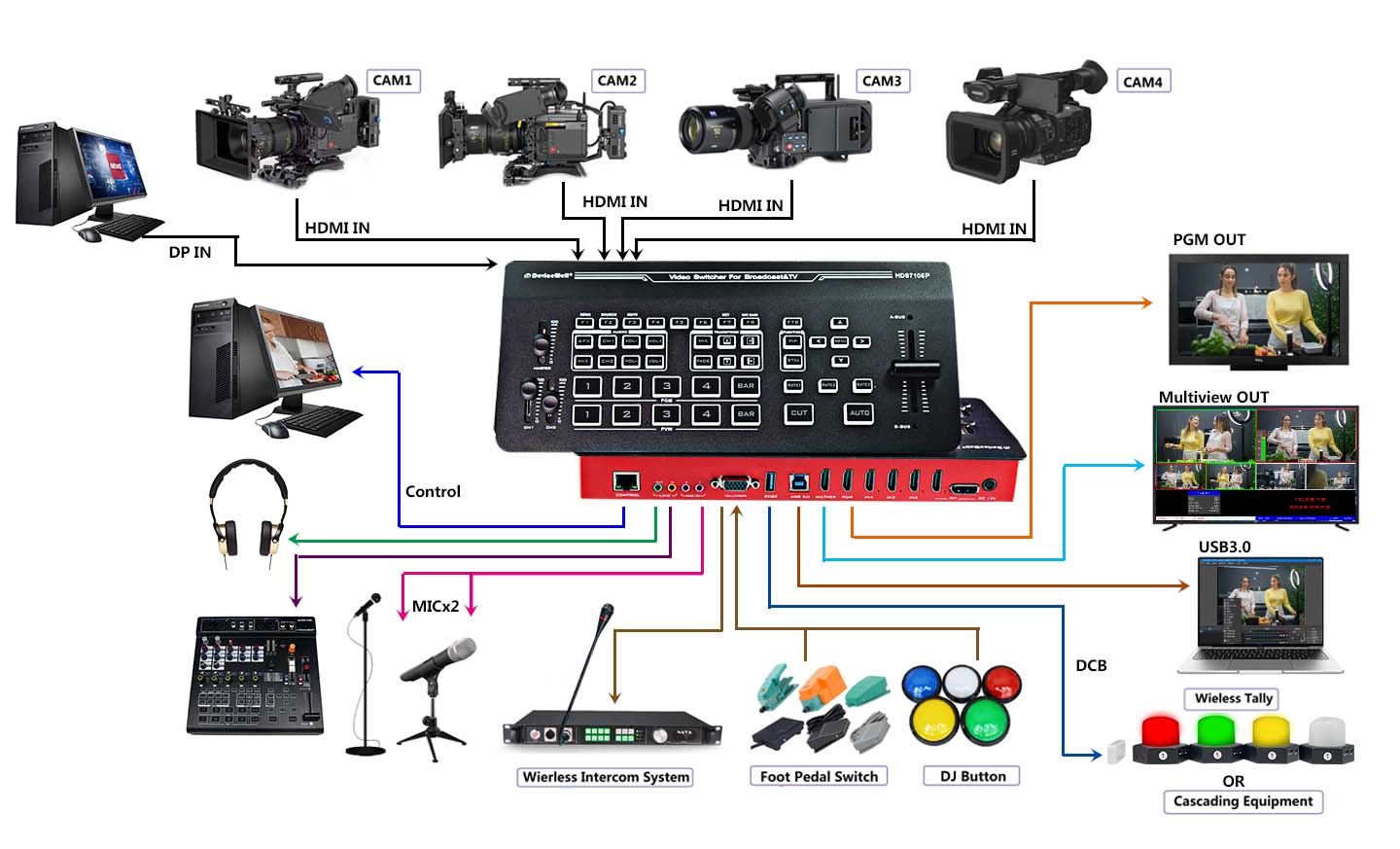

Application Diagram

The HDS7105P switcher supports 4-CH HDMI+1-CH DP signal input, total 5-CH  video signals. The external preview signal can be output synchronously. The switcher supports HDMI embedded audio + external analog audio. After mixing, it can be embedded in the output HDMI signal or output from the analog port. The resolution of all input signals is automatically adapted, and the resolution of output signals can be selected according to requirements, which is quite flexible. Widely used in broadcast&TV, HD digital medical industry, education and teaching, multimedia video conferencing, image transmission, large-scale multimedia high-definition display, outdoor large-screen display, large-scale stage display, sports events, military command and exercise, emergency command and control center, automation control Center and multimedia teaching and other fields.





Support PIP Function

The size and position of the small window in PIP can be adjusted; the thickness and color of the border of the sub-window can be set.



Audio Follow/Mix/Embed Function

The audio mode includes Follow and MiX assignment. In the control panel, CH1 and CH2 represent the source selection of the audio channel. Audio embedding can make the broadcast program achieve better effect.



One-key Screen Freeze Function

Press STILL on the control panel (the green light will be displayed after pressing), the output PGM video animation will enter the freezing phenomenon, and press the button again to unfreeze the screen.



One-key Emergency Blackout

Press the FTB on the control panel (the red light will be displayed after pressing it), turn on the FTB emergency black screen output function, press the button and the FTB red light will go out, and the FTB emergency black screen function will be turned off.



Adjustable Transition Rate

RATE1, RATE2, RATE3 in the key panel control the transition rate meter.(RATE1: 640ms; RATE2: 1280ms; RATE3: 2560ms)

Note: It only works when using AUTO transition



SWITCHER Software Control

SWITCHER Software Control can be updated through the network port to update new programs, and can also remotely control equipment on the computer side. This software control panel has an exquisitely designed software interface and parameter control panel, and supports remote control screen switching, transition effects, audio settings etc.



Downloading the instructions of the HDS7Series Switchers of Devicewel

Serial No.

Material name

Version

modification date

Description/Remarks

1

HDS7105P Specification Download

1.0

May 26, 2023

Initial Issue

2

HDS7 Series Switchboard Specification Download

1.0

May26, 2023



3

HDS7105P Photos Download

1.0

May26, 2023



4

Others









DeviceWell Switcher Document Download
