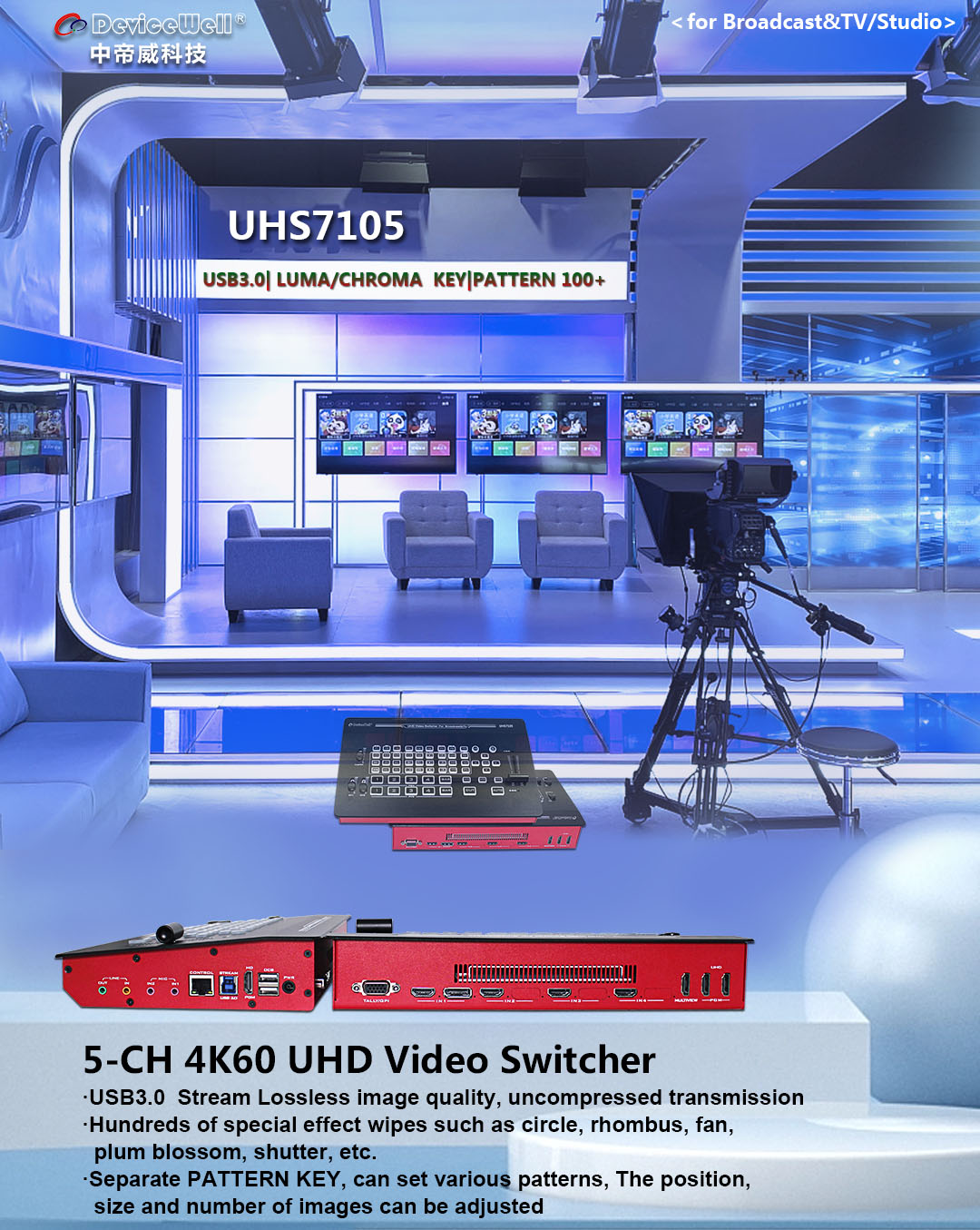

5-CH 4K60 Switcher UHS7105


《Product Introduction》

It is a dedicated video switcher for broadcast & TV, supporting up to 5-CH 4K60 signals. The device integrates XVI decoder, DP decoder, the highest resolution supports 4K60HZ, backward compatible with 1080P/720P high-definition video signal such as 3G SDI, built-in format converter, adaptive front-end different video signal input, built-in special effect generator, audio processor, video streaming processing and other common components of switcher.

The video signal interface supports 4-CH XVI+1-CH DP, total 5-CH video input and 3-CH XVI output.

The audio signal interface supports 2-CH MIC input, 1-CH LINE input, and 1-CH Line output.

Support DCB control system and tally output.

It adopts high-strength aluminum alloy shell, which is easy to carry. It can be applied to broadcast and TV station studios and the needs of switching video effects on location. For professional users, the control keyboard can be expanded through the DCB interface.




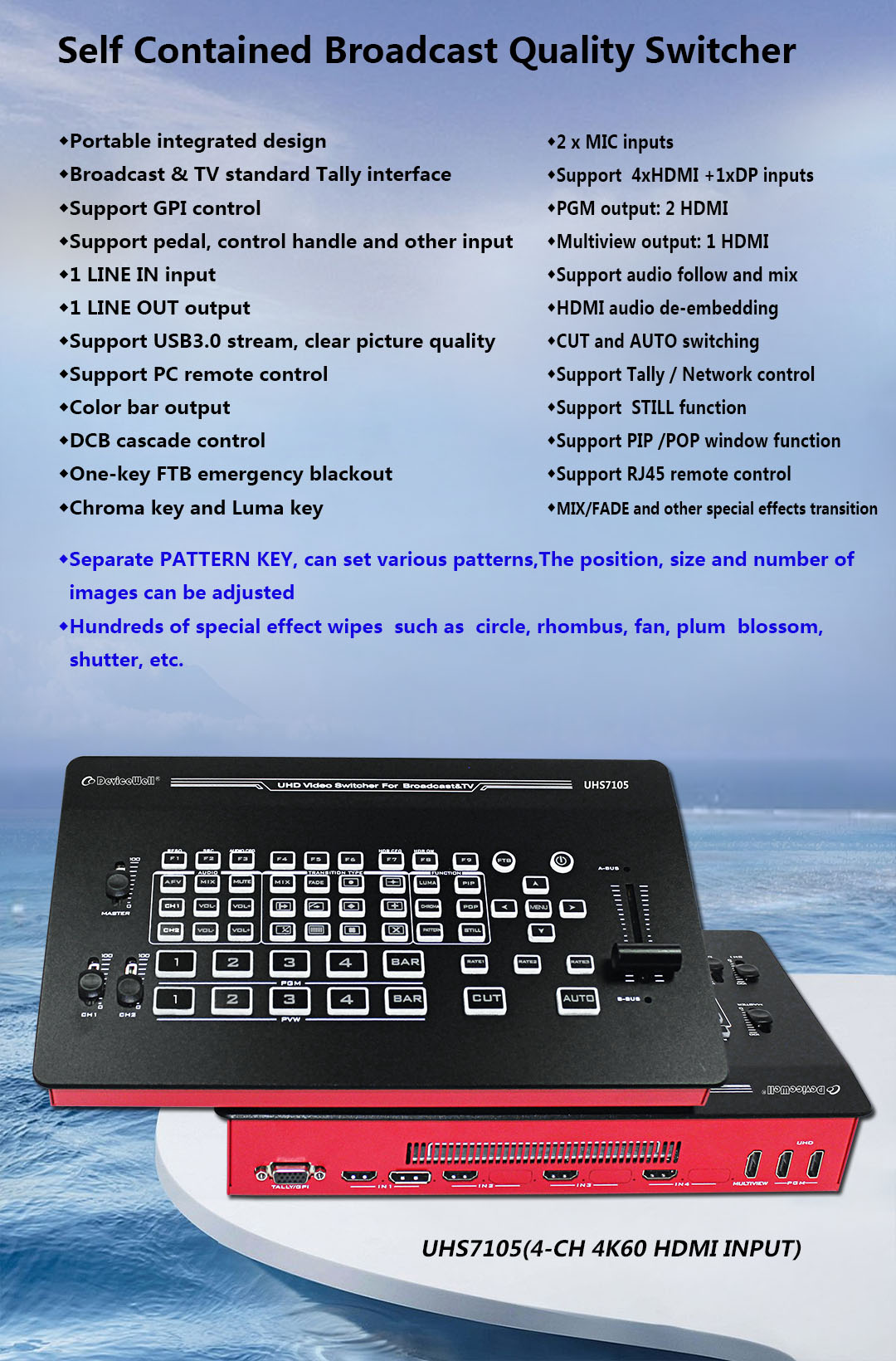

Product Features


  • Portable integrated design
  • Aluminum alloy material, high strength and light weight
  • Hundreds of special effect wipes such as circle, rhombus,fan, plum blossom, shutter, etc.
  • A separate PATTERN KEY, which can set various special-shaped patterns.The position, size and number of images can be adjusted
  • Broadcast & TV standard Tally interface
  • Support RJ45 remote control
  • Support DCB control
  • 2xMIC inputs
  • 1xLINE IN input
  • 1xLINE OUT output
  • 4xXVI+1xDP input
  • MULTIVIEW output:1xXVI
  • PGM output:2xXVI
  • Audio follow and mix function, XVI audio de-embedding
  • MIX / FADE and other special effects transition
  • CUT hard cutting and AUTO special effect switching
  • CUT hard cutting and AUTO special effect switching
  • Color bar output
  • One-key screen freezing function
  • Support PIP/POP function
  • FTB emergency blackout function
  • Support Chroma/Luma Key
  • Support GPI control
  • Support pedal, control handle and other input

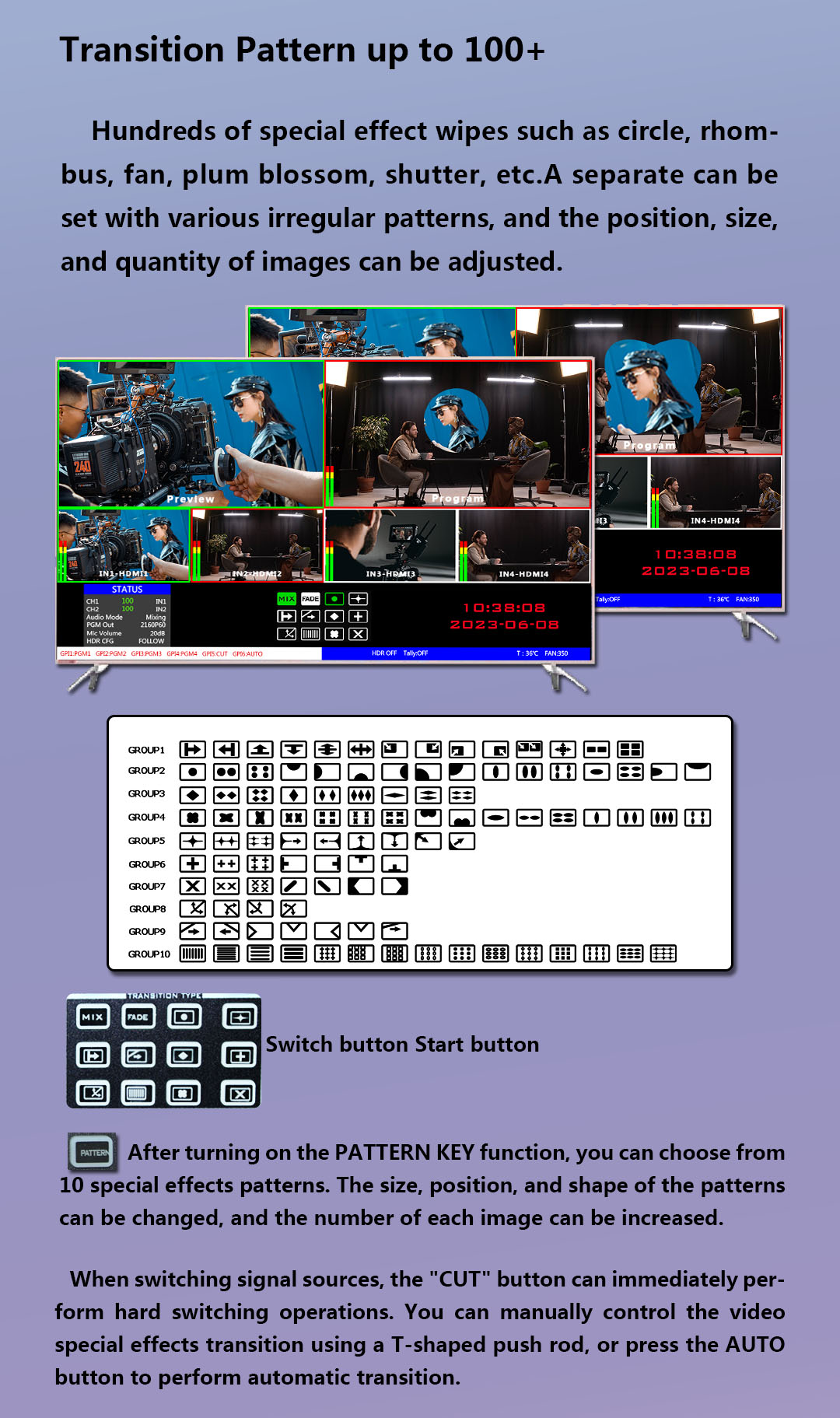

Transition Pattern up to 100+

Hundreds of special effect wipes such as circle, rhombus, fan, plum blossom, shutter, etc.

Please refer to this link for operation details

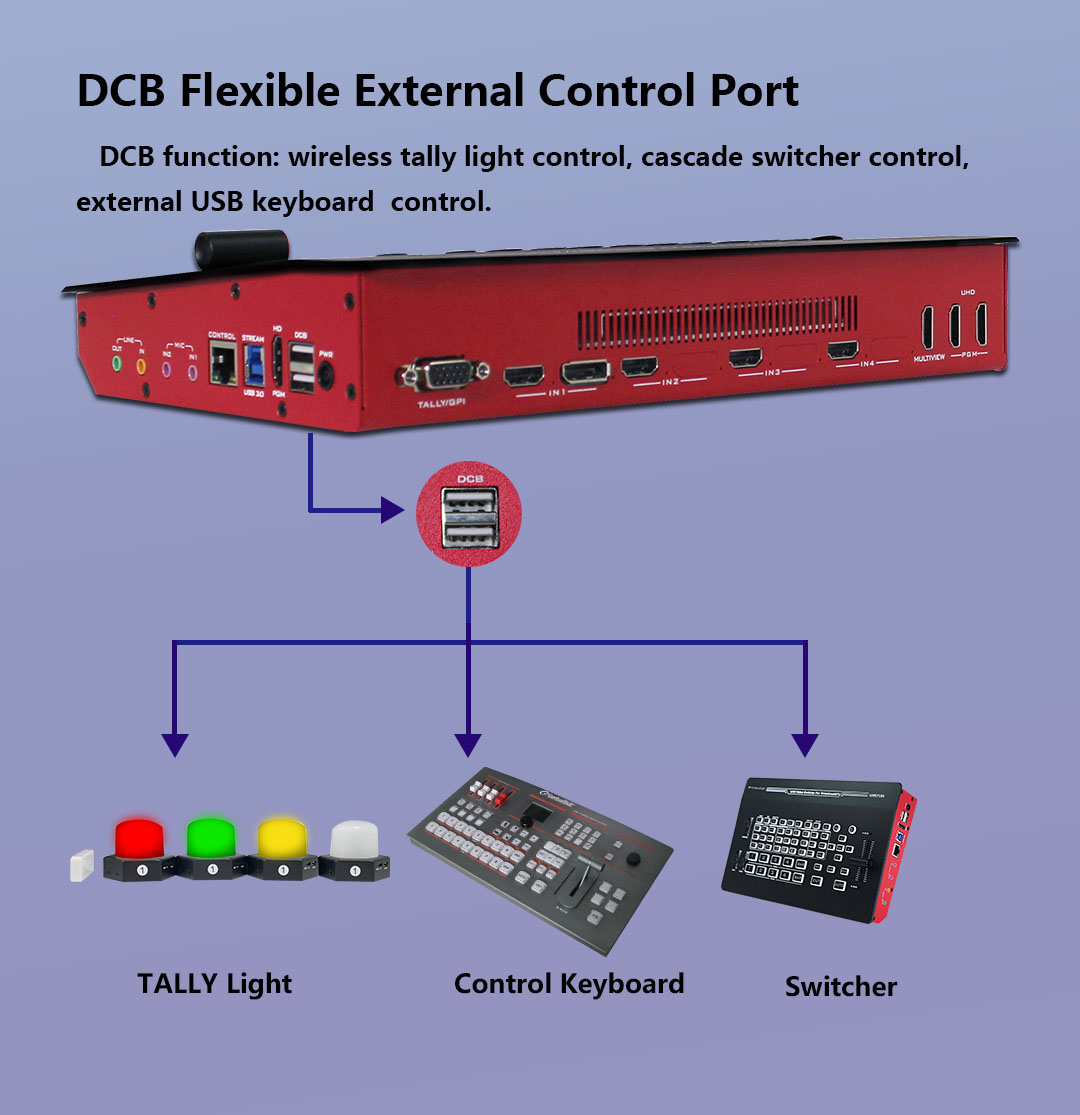

DCB  Flexible External Control Port

The XVI Switcher DCB function: wireless tally light control, cascade switcher control, external USB keyboard control.

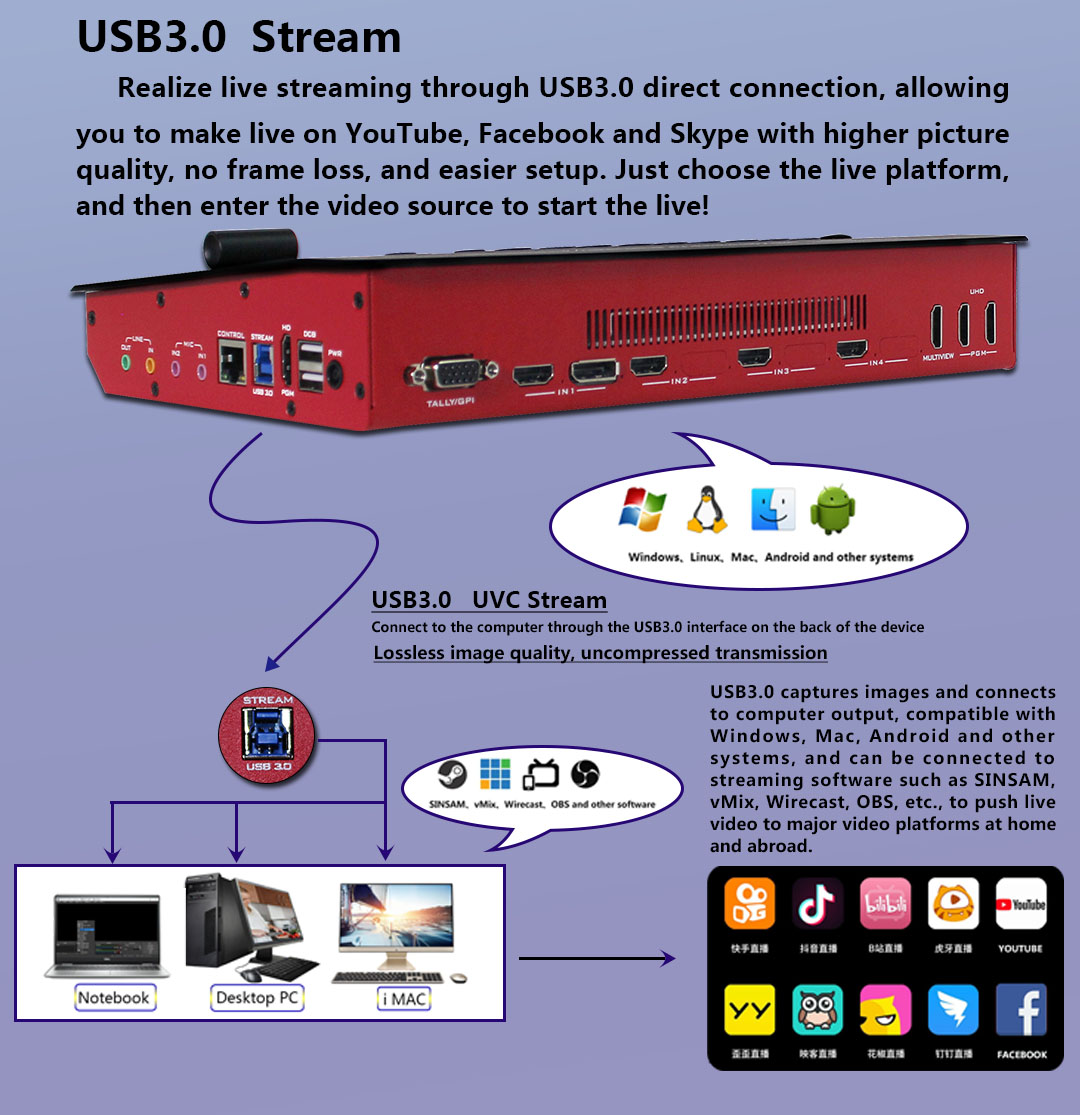

Realize live streaming through USB3.0 direct connection, allowing you to make live on YouTube, Facebook and Skype with higher picture quality, no frame loss, and easier setup. Just choose the live platform, and then enter the video source to start the live!




PC Remote Control

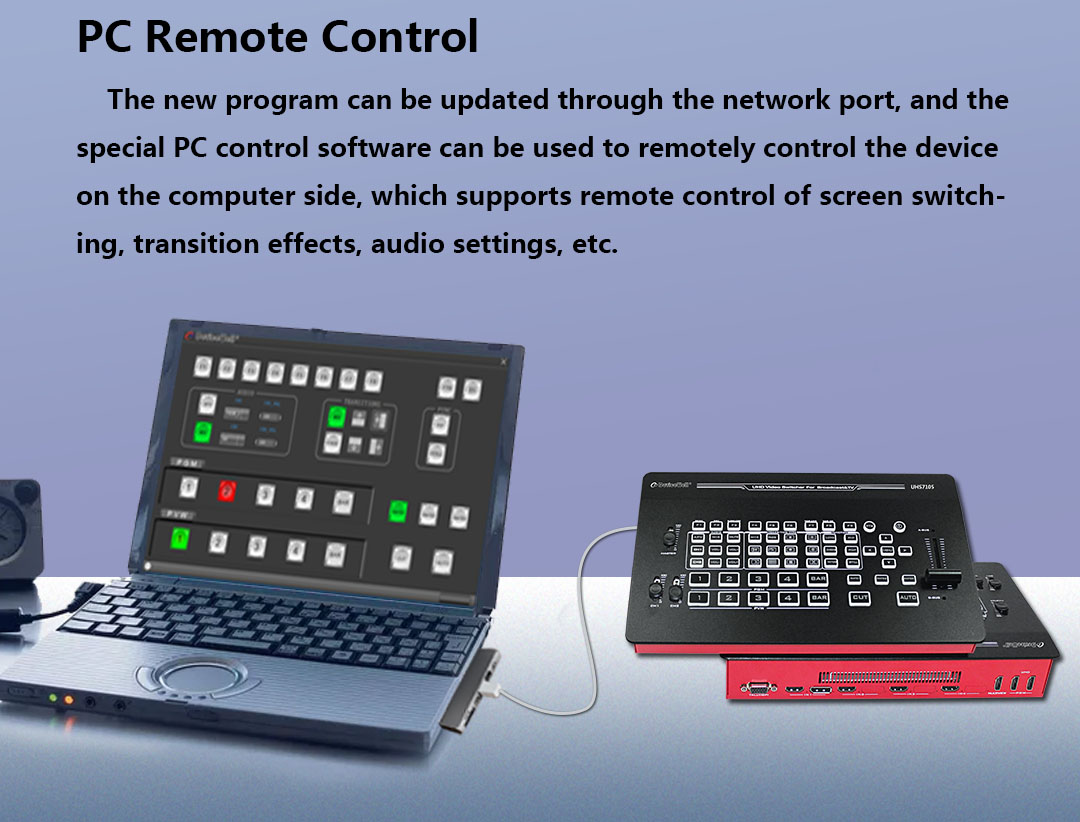

The new XVI switcher can be updated through the network port, and the special PC control software can be used to remotely control the device on the computer side, which supports remote control of screen switching, transition effects, audio settings, etc.



Luma KEY/Chroma KEY

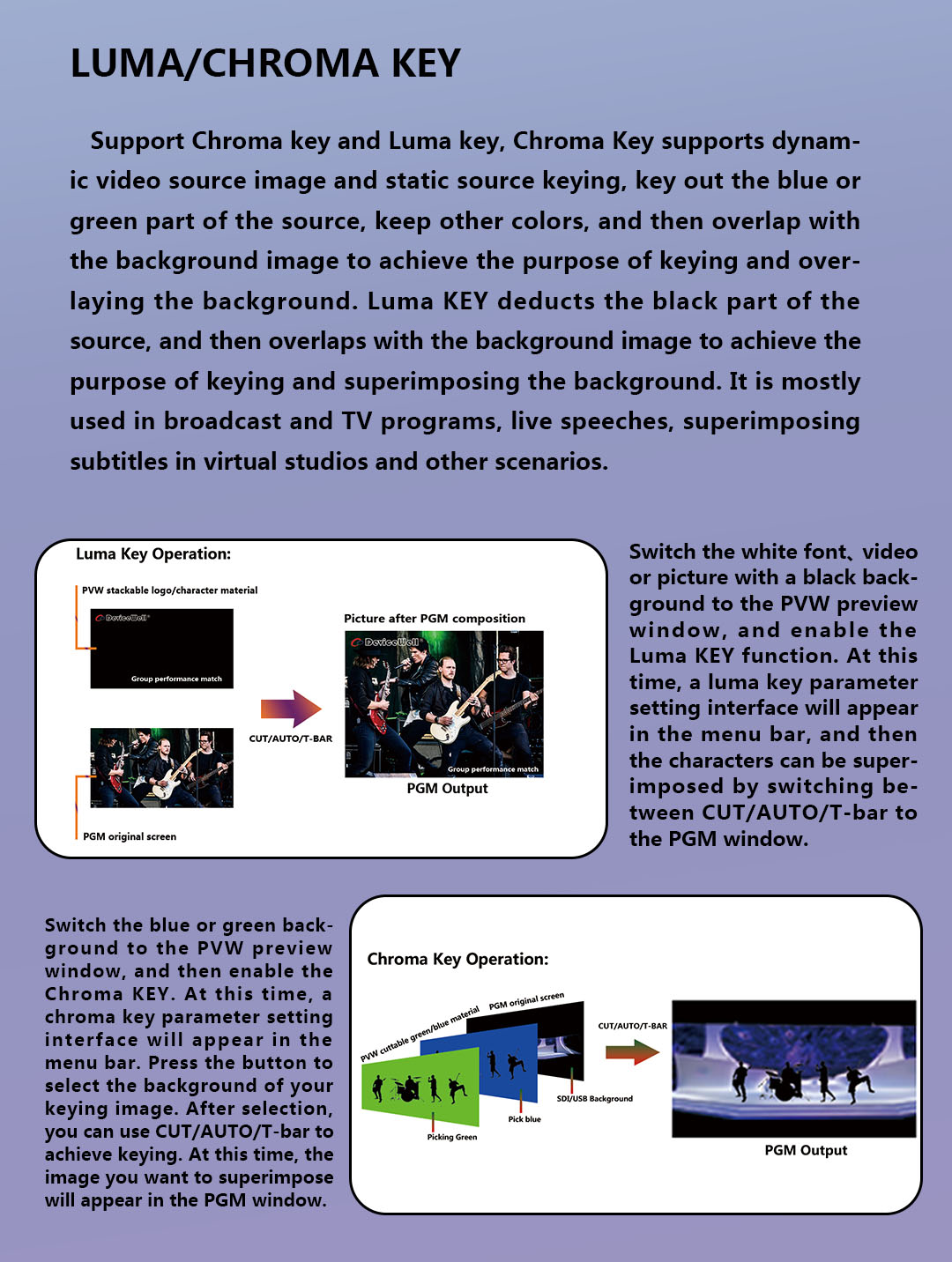

Support Chroma key and Luma key, Chroma Key supports dynamic video source image and static source keying, key out the blue or green part of the source, keep other colors, and then overlap with the background image to achieve the purpose of keying and overlaying the background. Luma KEY deducts the black part of the source, and then overlaps with the background image to achieve the purpose of keying and superimposing the background. It is mostly used in broadcast and TV programs, live speeches, superimposing subtitles in virtual studios and other scenarios.


Docking Director Tally System

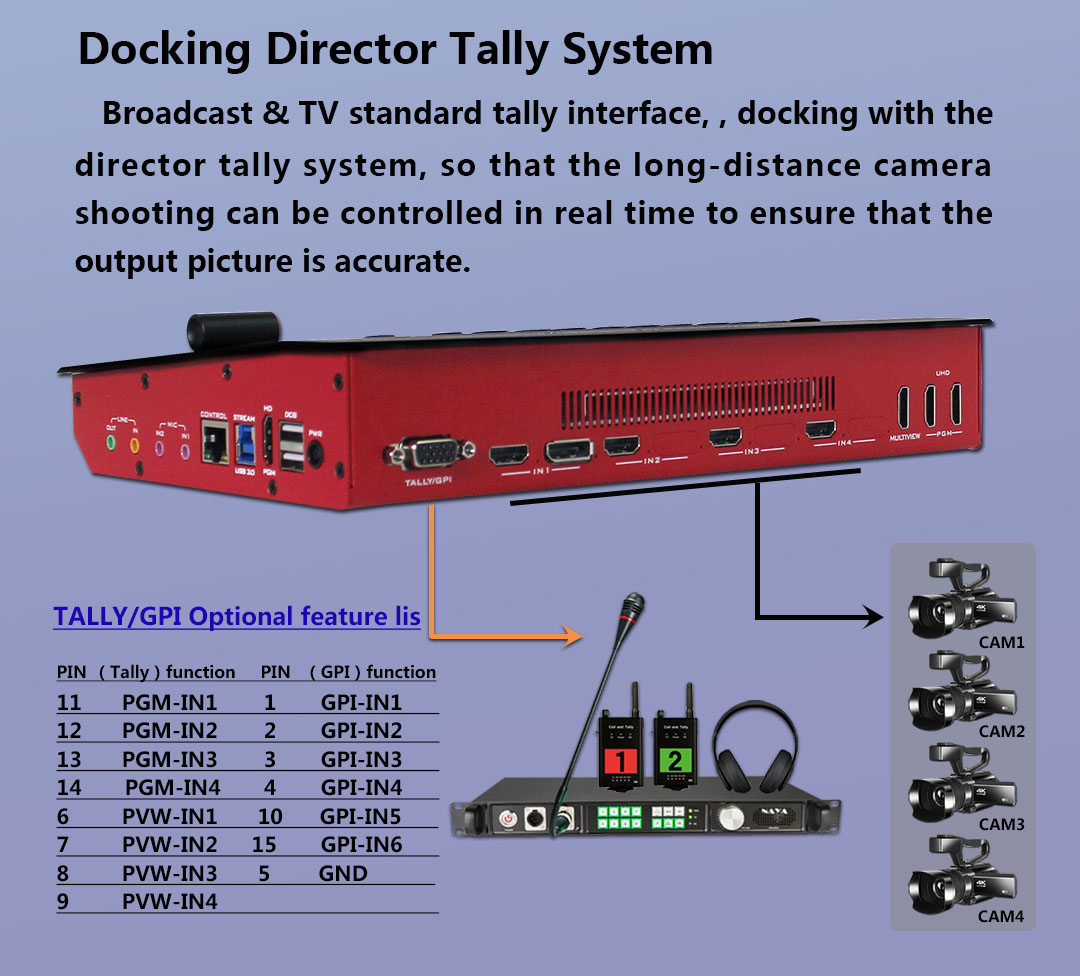

 Broadcast & TV standard tally interface, UHS7105 Switcher is equipped with DB-15 tally interface, docking with the director tally system, so that the long-distance camera shooting can be controlled in real time to ensure that the output picture is accurate.


GPI control, foot pedal, control handle, etc.

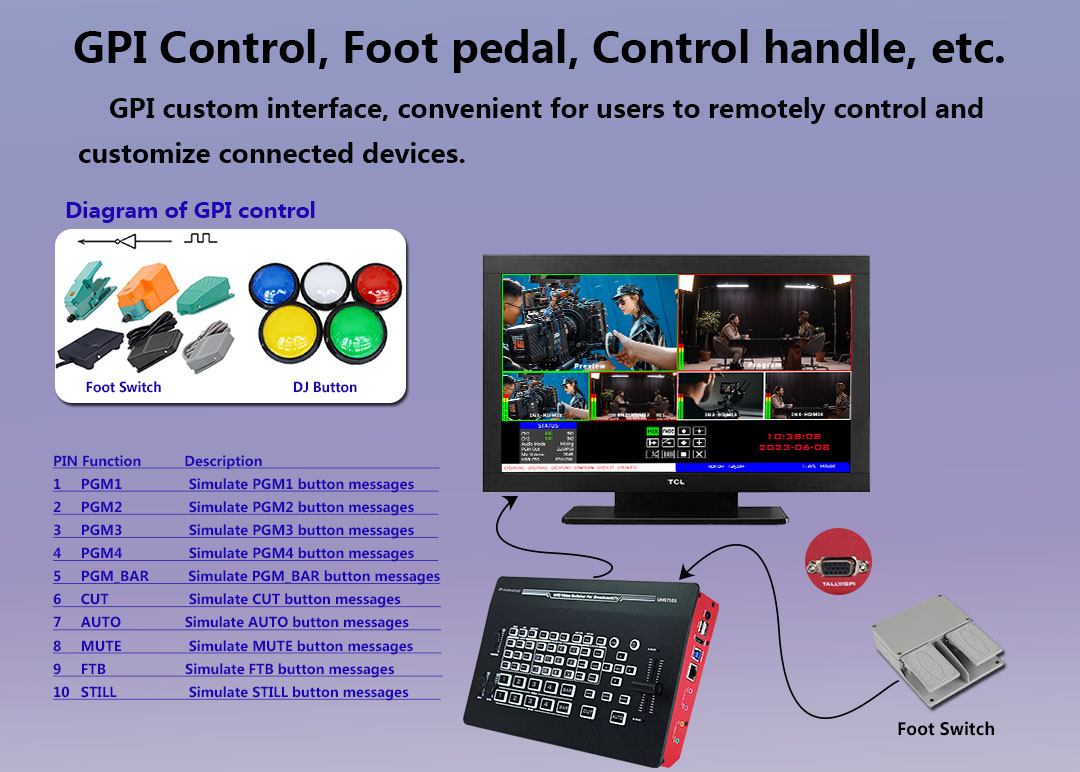

 GPI custom interface, convenient for users to remotely control and customize connected devices.


Broadcast level HD video switcher

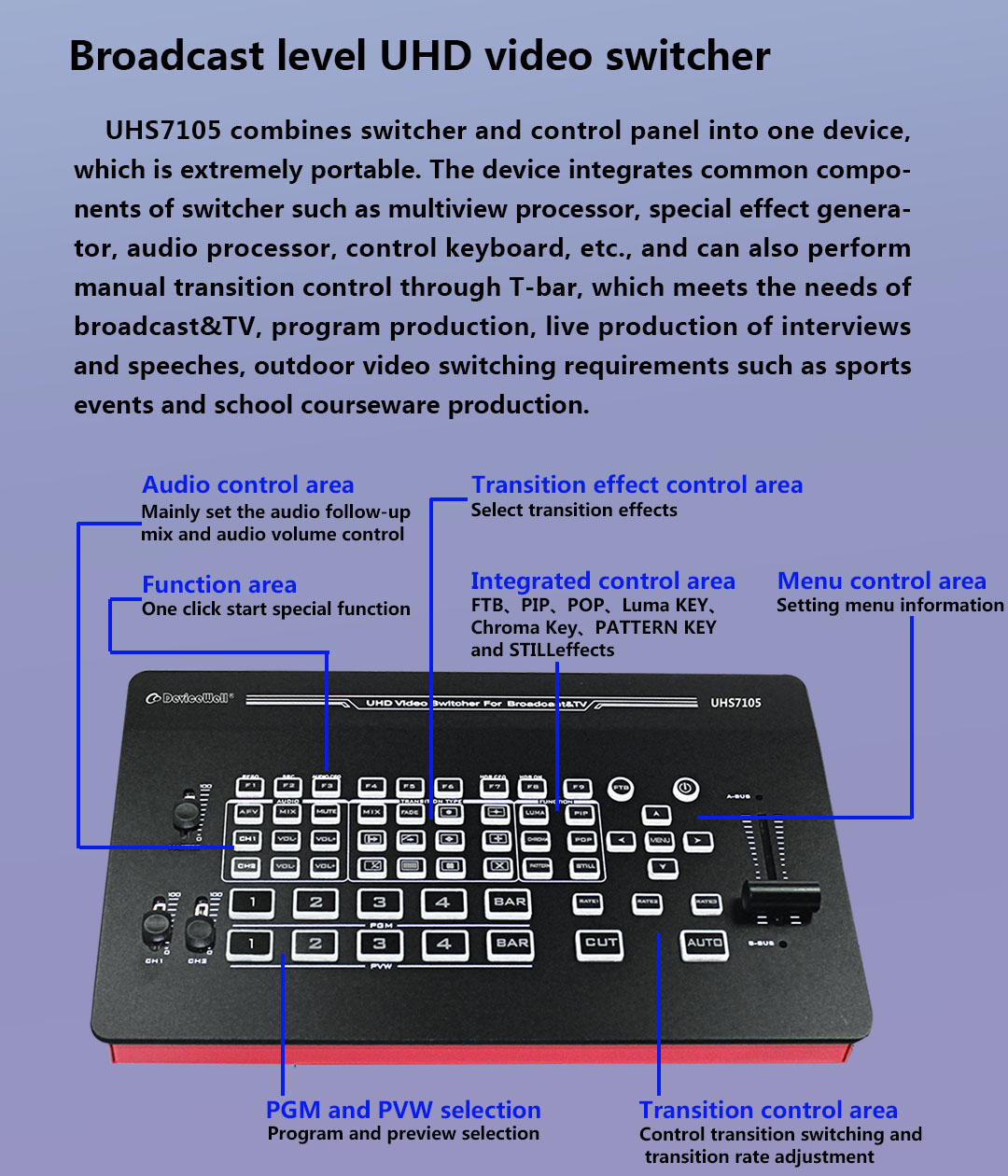

UHS7105 combines switcher and control panel into one device, which is extremely portable. The device integrates common components of switcher such as multiview processor, special effect generator, audio processor, control keyboard, etc., and can also perform manual transition control through T-bar, which meets the needs of broadcast&TV, program production, live production of interviews and speeches, outdoor video switching requirements such as sports events and school courseware production.


5-CH Switcher

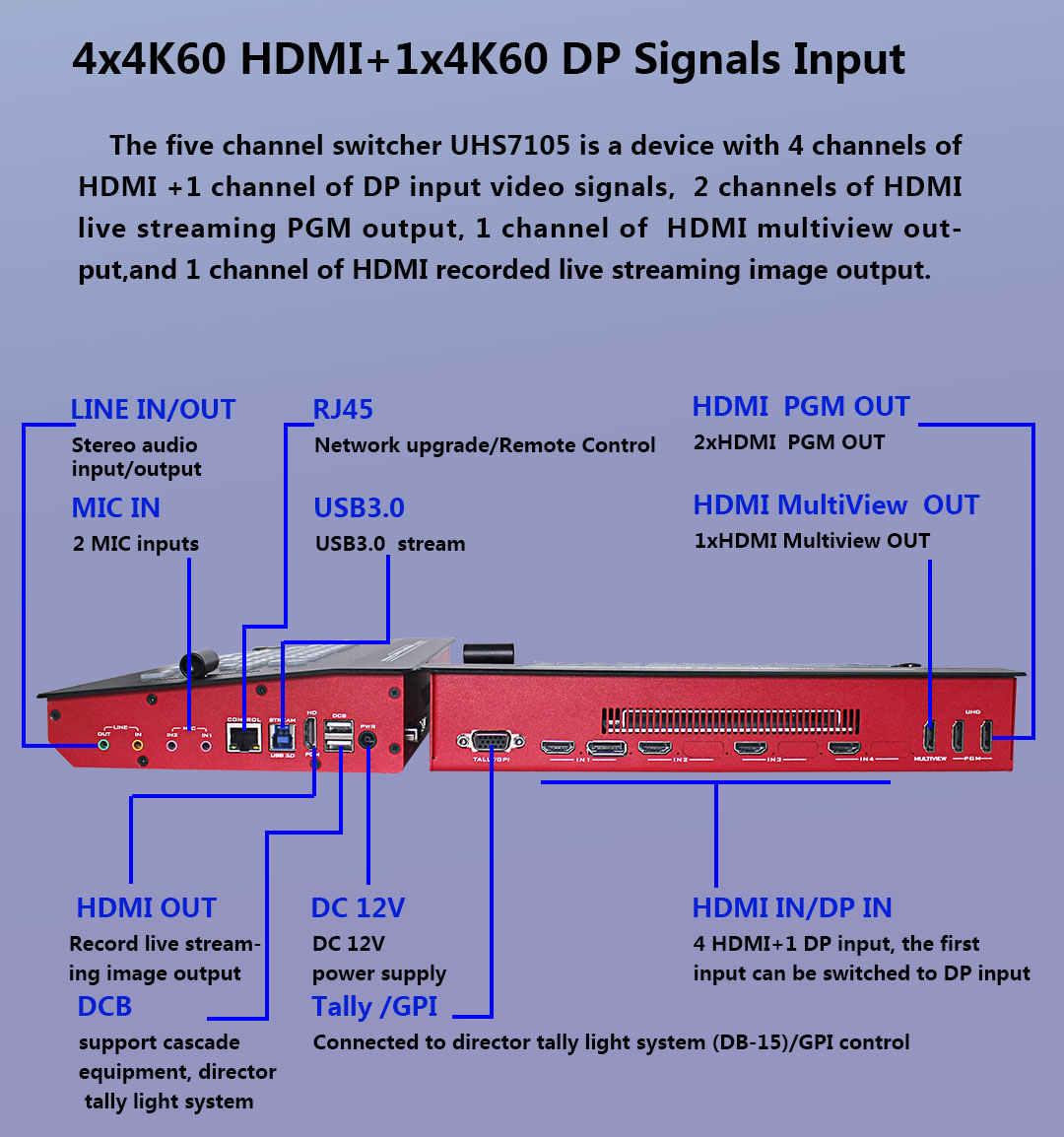

  The five channel switcher UHS7105 is a device with 4 channels of XVI +1 channels of DP input video signals, 2 channels of XVI live streaming PGM output,1 channel of XVI multiview output, and 1 channel of XVI recorded live streaming image output.


Application Diagram

The five channel switcher UHS7105 is a device with 4 channels of XVI +1 channels of DP input video signals, 2 channels of XVI live streaming PGM output,1 channel of XVI multiview output, and 1 channel of XVI recorded live streaming image output.The external preview signal can be output synchronously. The switcher supports XVI embedded audio + external analog audio. After mixing, it can be embedded in the output XVI signal or output from the analog port. The resolution of all input signals is automatically adapted, and the resolution of output signals can be selected according to requirements, which is quite flexible. Widely used in broadcast&TV, HD digital medical industry, education and teaching, multimedia video conferencing, image transmission, large-scale multimedia high-definition display, outdoor large-screen display, large-scale stage display, sports events, military command and exercise, emergency command and control center, automation control Center and multimedia teaching and other fields.

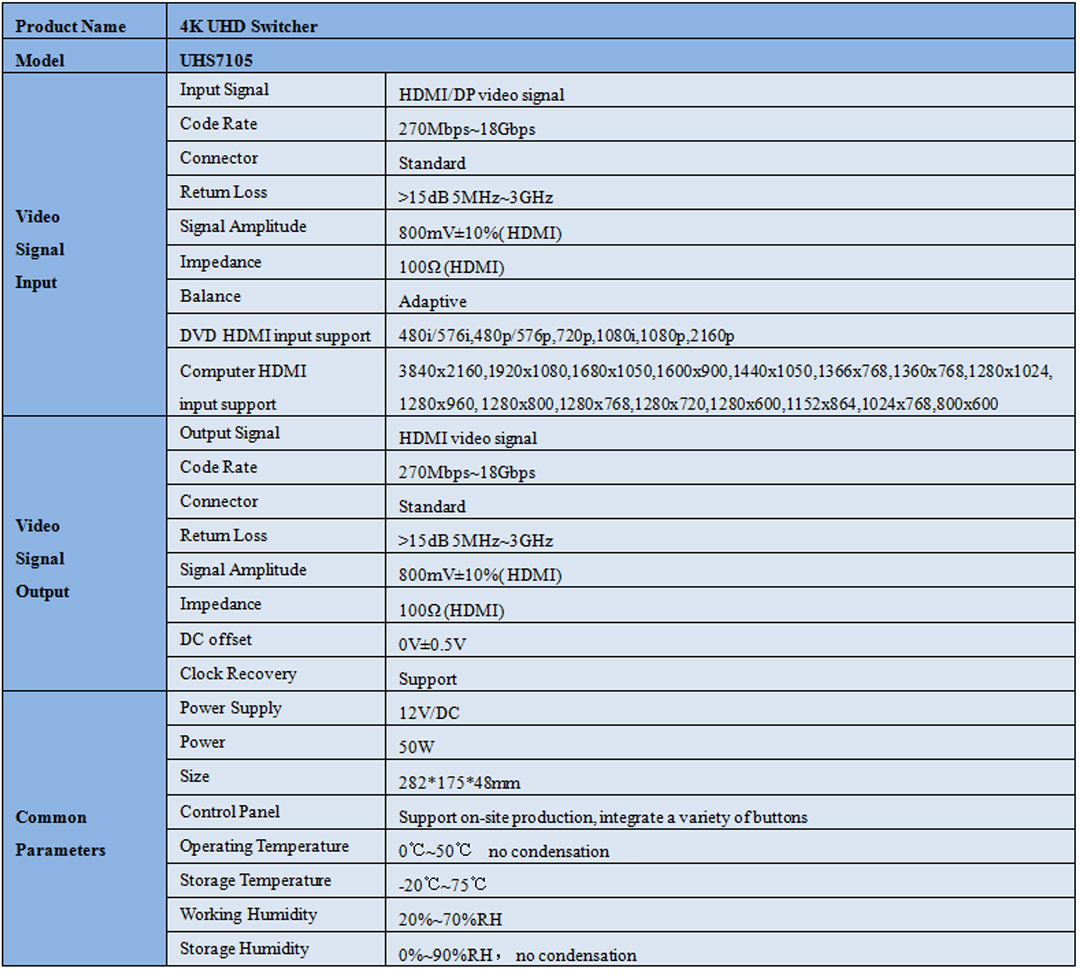

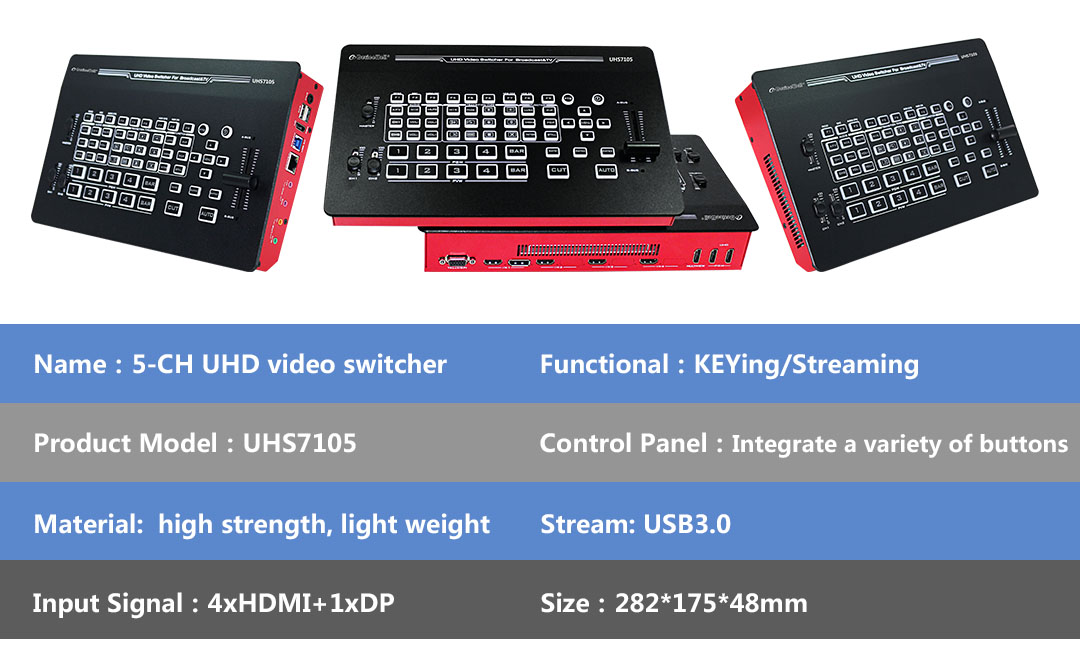

Technical Parameter
