HDS9105 5-channel HD video switcher

便携式切换台

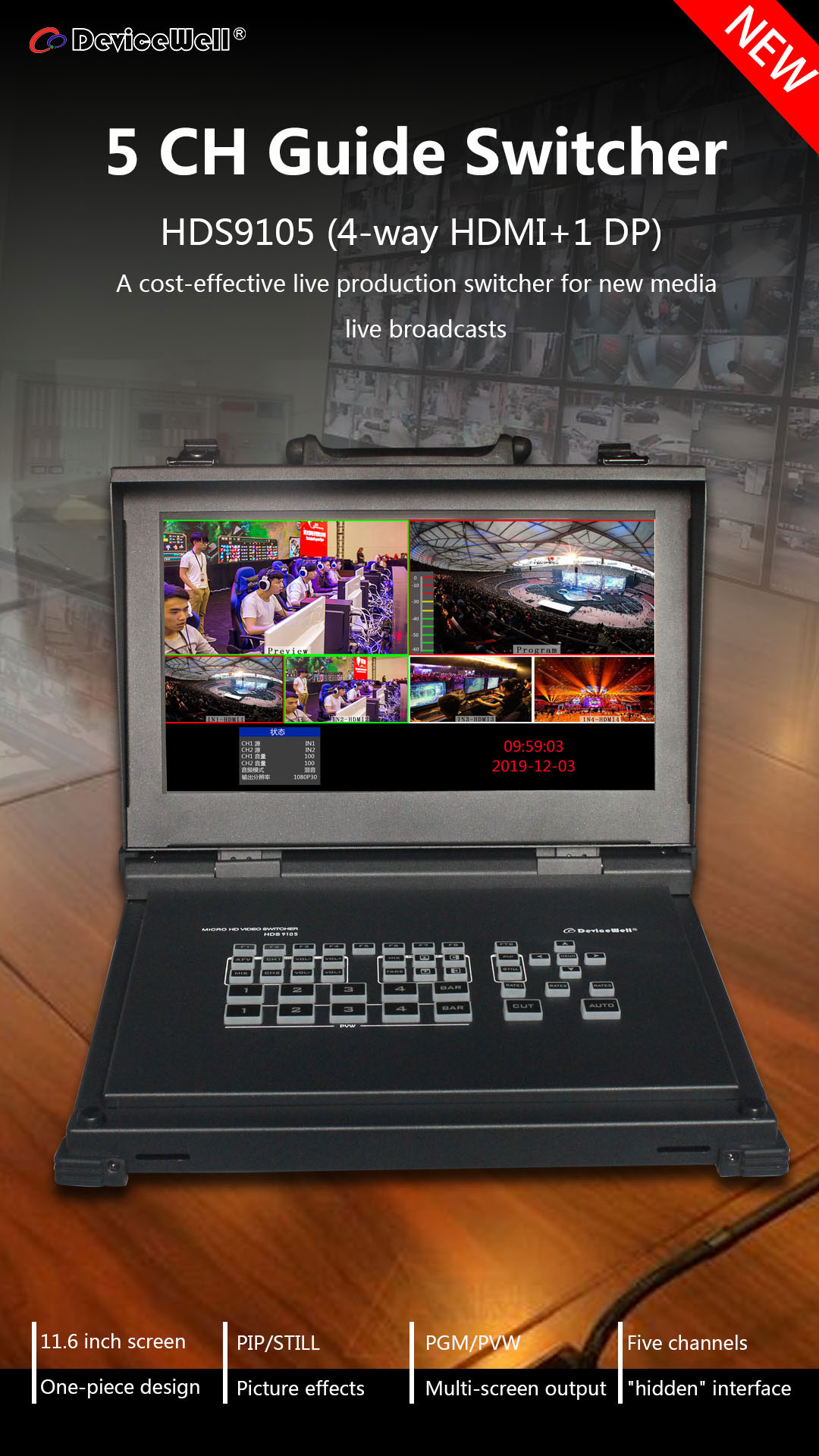

5 CH Guide Switcher



HDS9105 (4-way HDMI+1 DP)



A cost-effective live production switcher for new



media live broadcasts

便携式切换台

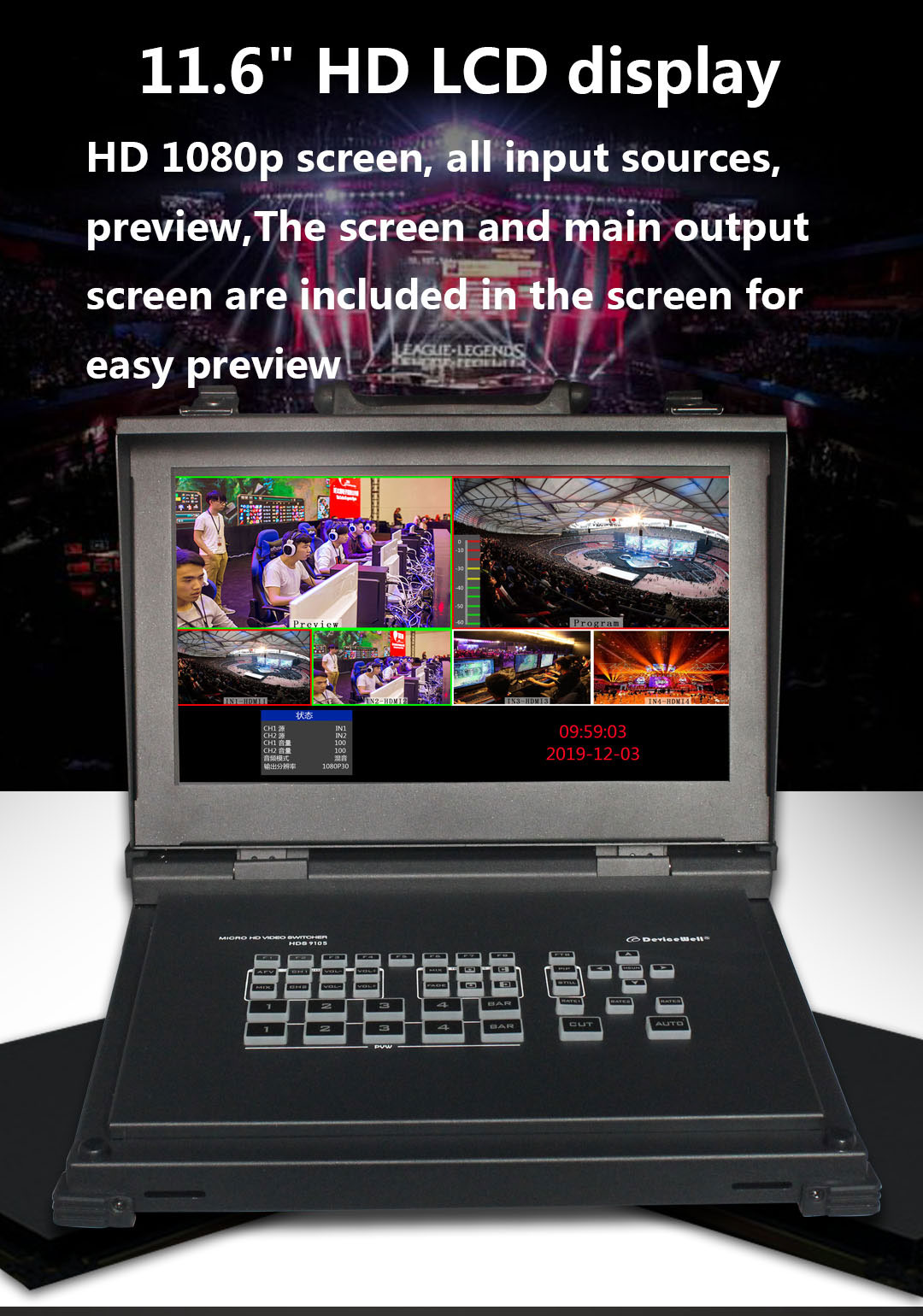

11.6" HD LCD display



HD 1080p screen, all input sources, preview,The screen



and main output screen are included in the screen for easy



preview

便携式切换台

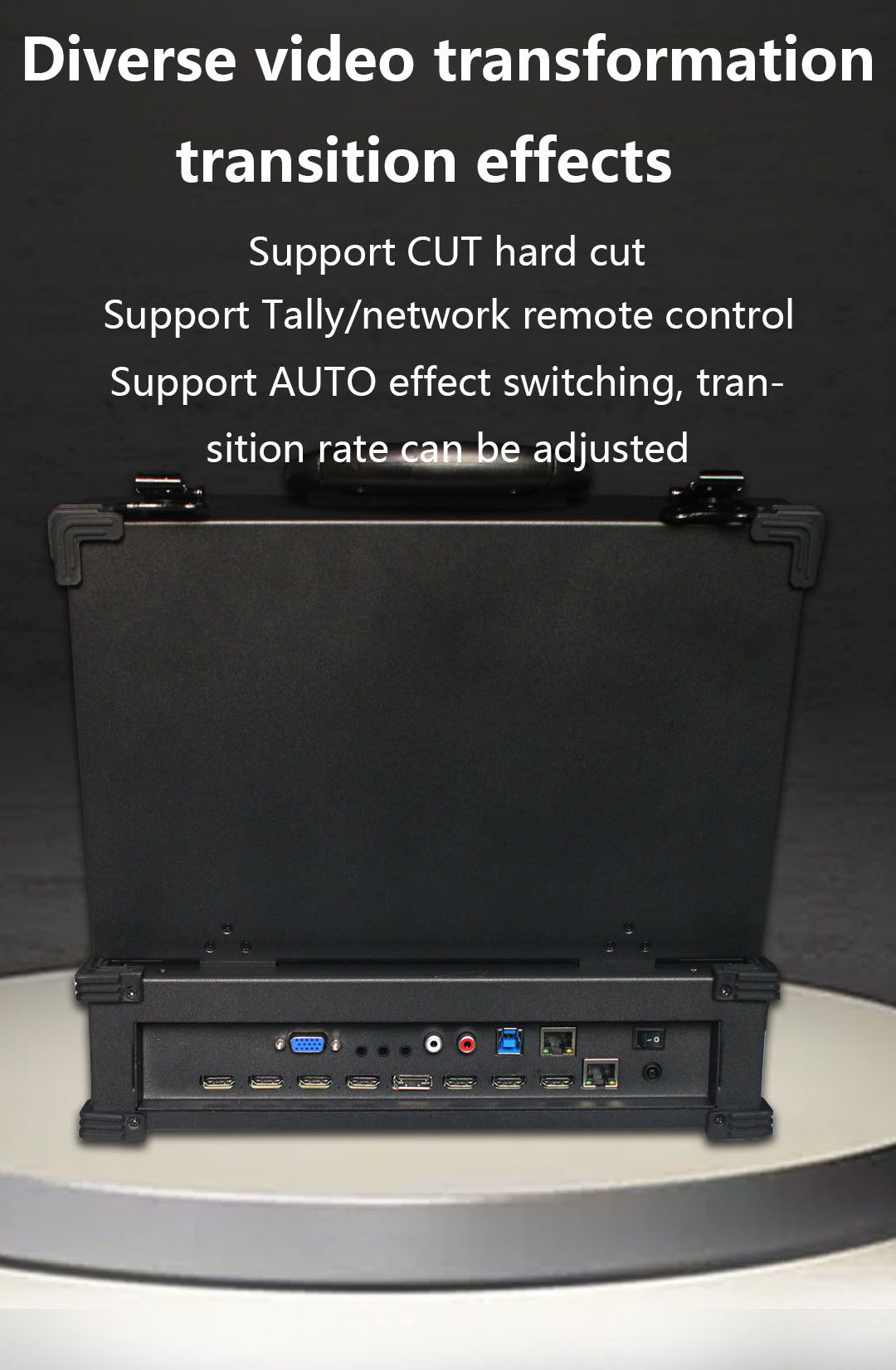

Diverse video transformation transition effects



Support CUT hard cut



Support Tally/network remote control



Support AUTO effect switching, transition rate





can be adjusted

便携式切换台

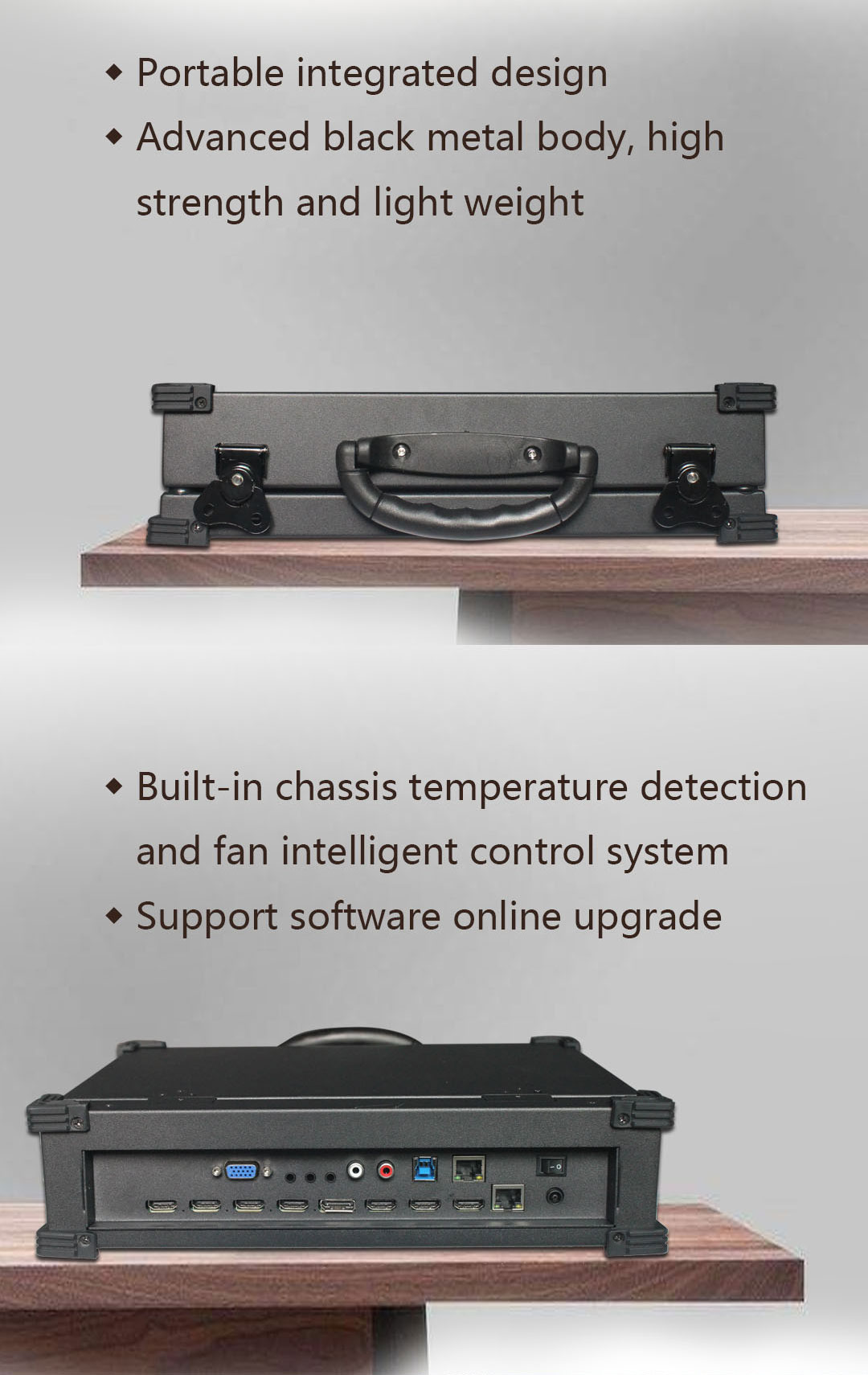

◆ Portable integrated design

◆ Advanced black metal body,

   high strength and light weight

便携式切换台

◆ Built-in chassis temperature detection

   and fan intelligent control system

◆ Support software online upgrade

便携式切换台

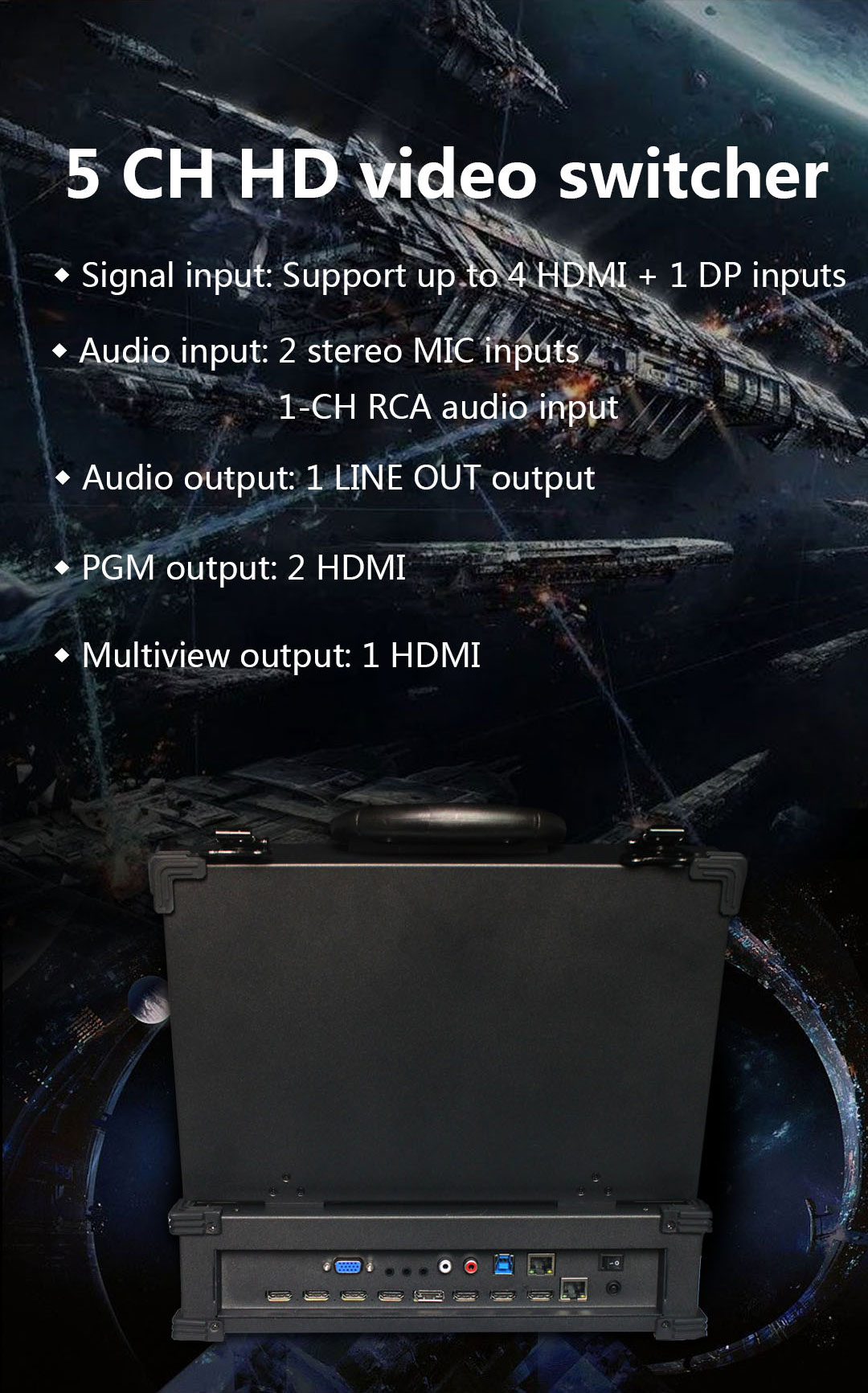

5 CH HD video switcher



◆ Signal input: Support up to 4 HDMI + 1 DP inputs



◆ Audio input: 2 stereo MIC inputs；1-CH RCA audio input



◆ Audio output: 1 LINE OUT output



◆ PGM output: 2 HDMII



◆ Multiview output: 1 HDMI

便携式切换台

便携式切换台

便携式切换台

便携式切换台

便携式切换台

便携式切换台

便携式切换台

Download

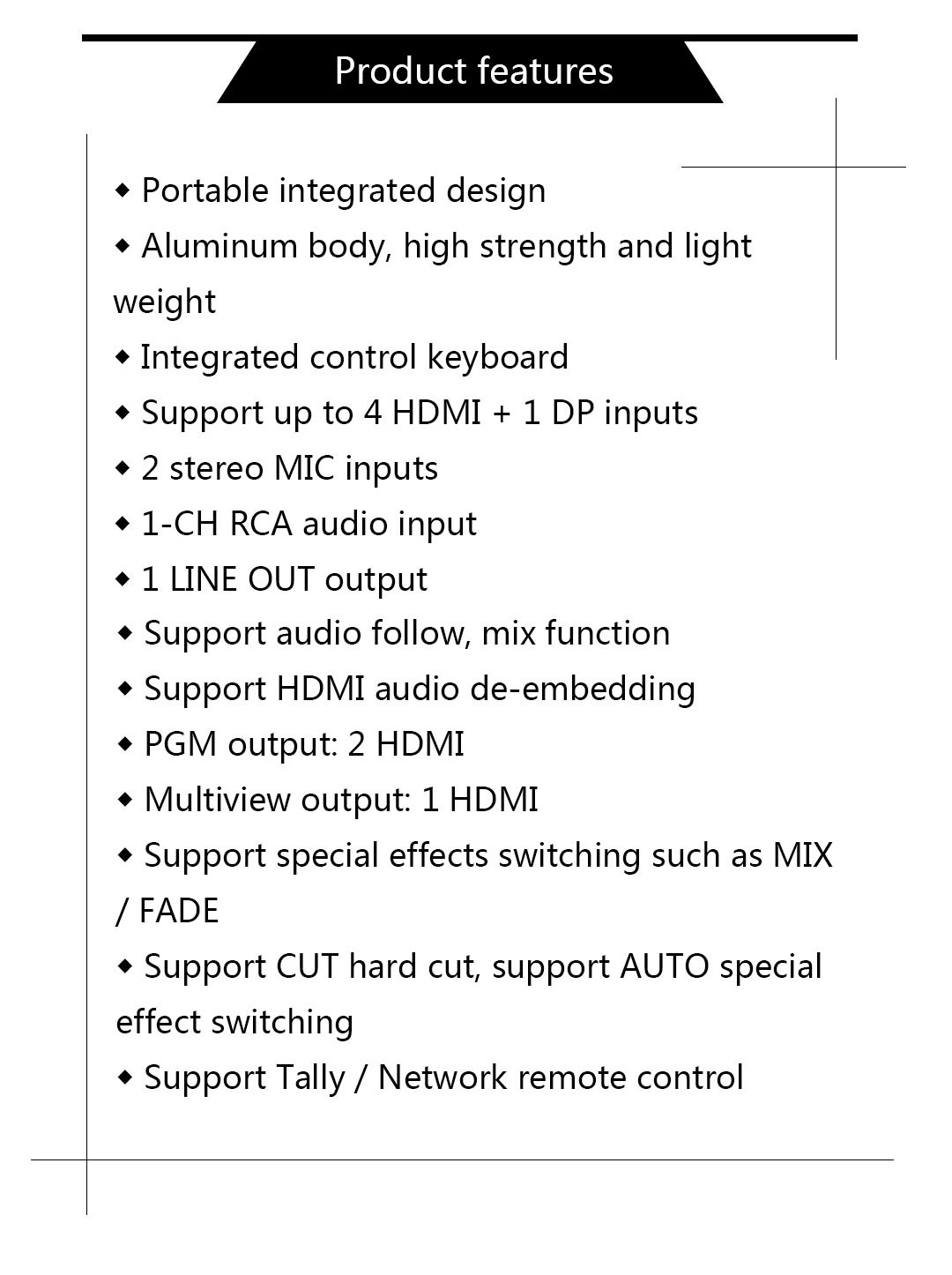

         ◆ Portable integrated design

         ◆ Aluminum body, high strength and light weight

         ◆ Integrated control keyboard

         ◆ Support up to 4 HDMI + 1 DP inputs

         ◆ 2 stereo MIC inputs

         ◆ 1-CH RCA audio input

         ◆ 1 LINE OUT output

         ◆ Support audio follow, mix function

         ◆ Support HDMI audio de-embedding

         ◆ PGM output: 2 HDMI

         ◆ Multiview output: 1 HDMI

         ◆ Support special effects switching such as MIX / FADE

         ◆ Support CUT hard cut, support AUTO special effect switching

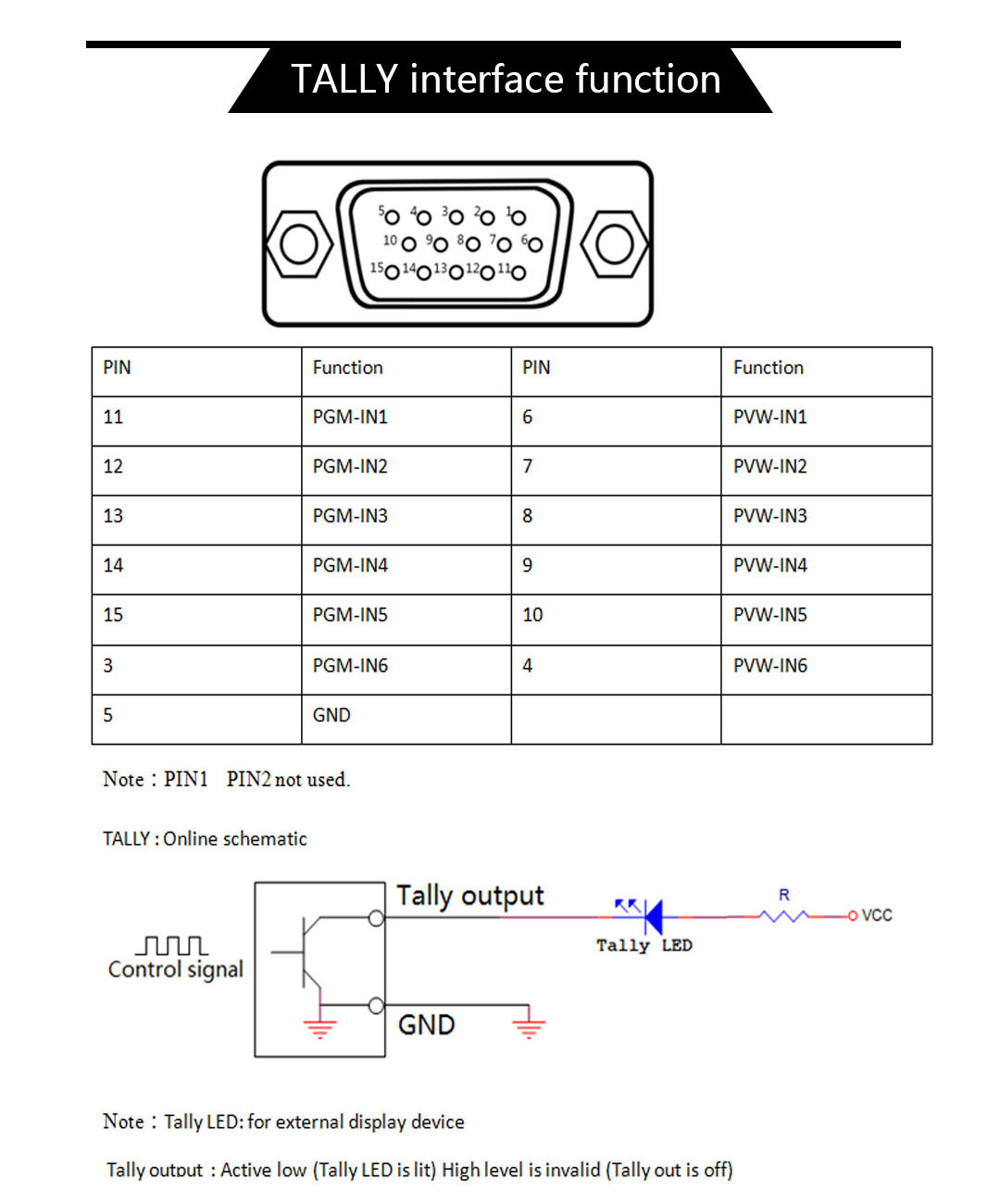

         ◆ Support Tally / Network remote control
