Product Introduction

A dedicated ST2110 and SDI/DVP bidirectional video converter.SDI OVER IP. The device integrates SDI receiving module and ST2110 encoding module, which can convert 3G/HD SDI signals into uncompressed ST2110 IP streams. At the same time, it can also receive ST2110 IP streams, decode and output them to DVP video ports, and DVP supports frequency conversion. The device supports point-to-point IP stream signal transmission, and also supports "multicast" and "broadcast" streams for video distribution and scheduling through network switches. SDI input supports up to 3Gb and is backward compatible with 1.5Gb. DVP output supports up to 1080P 60HZ, and is backward compatible with 1080I and 720P signals. ST2110 has a maximum bit rate of 2.5Gb, is backward compatible with 1Gb, and has a total bandwidth of 5Gb in bidirectional mode. The ST2110 bidirectional video converter can process bidirectional ST 2110 video streams at the same time, and with network switches as relays, it can realize IP video exchange, distribution and forwarding of large-capacity uncompressed videos. Using network relay/wireless relay, long-distance uncompressed video transmission can be achieved. ST2110's low latency, no compression and 100% color reproduction performance can be widely used in broadcasting, real-time conferencing, medical imaging and industrial machine vision.



Features

◆ Support bidirectional ST2110 IP stream processing

◆ IP stream bidirectional bandwidth 5Gb

◆ Uncompressed video encoding, 100% color restoration

◆ Support multicast and broadcast physical layer settings

◆ SDI input supports up to 3Gb and is backward compatible with 1.5Gb

◆ SDI input rate adaptation

◆ DVP output supports up to 1080P 60Hz, and is backward compatible with 720P, etc.

◆ DVP output supports pass-through mode and variable frequency mode (FRC)

◆ DVP output can select seamless output and still frame

◆ Support USB upgrade

◇ Special functions can be customized

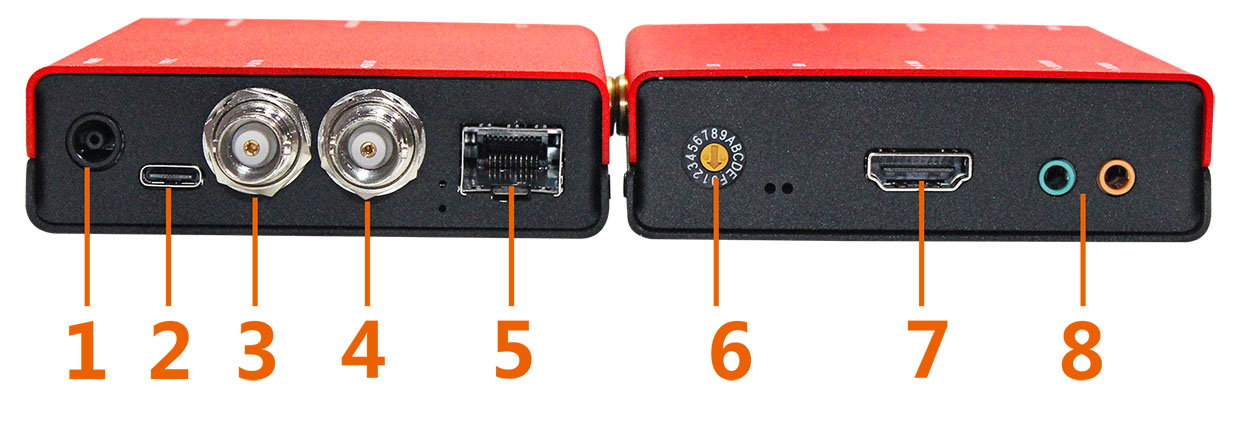

Interface Description



No.	Definition	Description
1	Power supply	DC 5V-12V
2	Type C port	Type C upgrade
3	SDI IN	SDI input
4	SDI out	SDI output
5	SFP port	10Gb
6	DIP	Function settings (see table below)
7	DVP OUT	DVP output
8	Audio port	Reserved

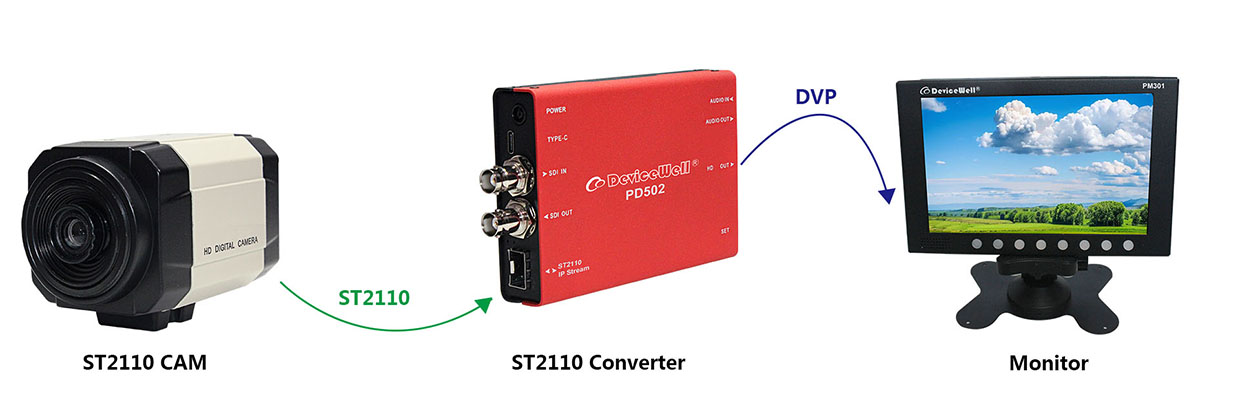

Application 1：ST2110 to SDI PTP application

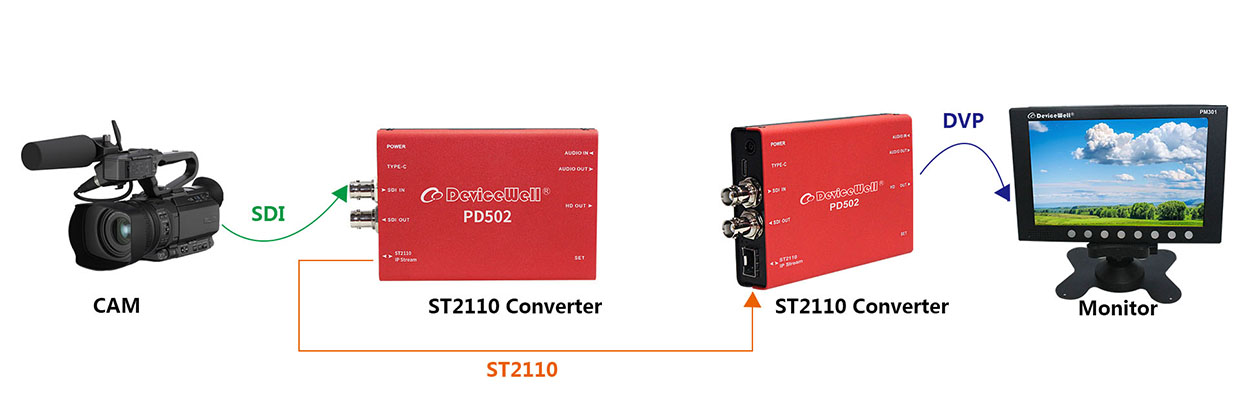

Application 2：SDI to ST2110 PTP application

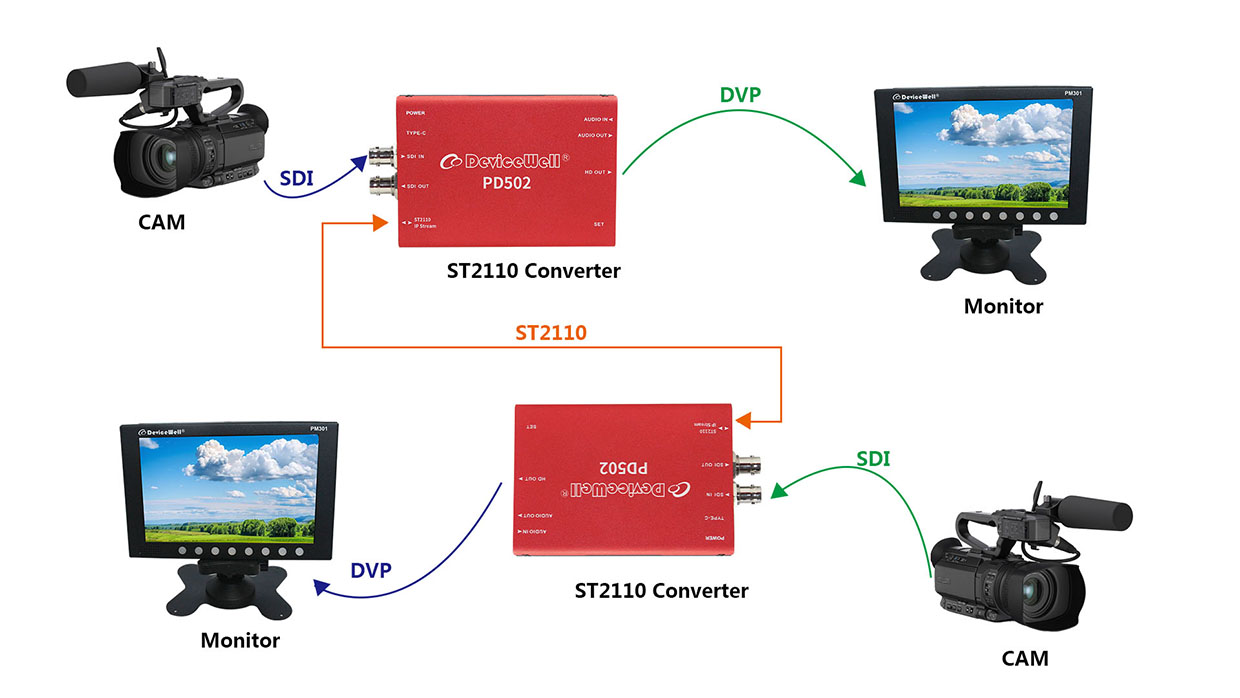

Application 3： SDI/DVP/ST2110  PTP BiDi application

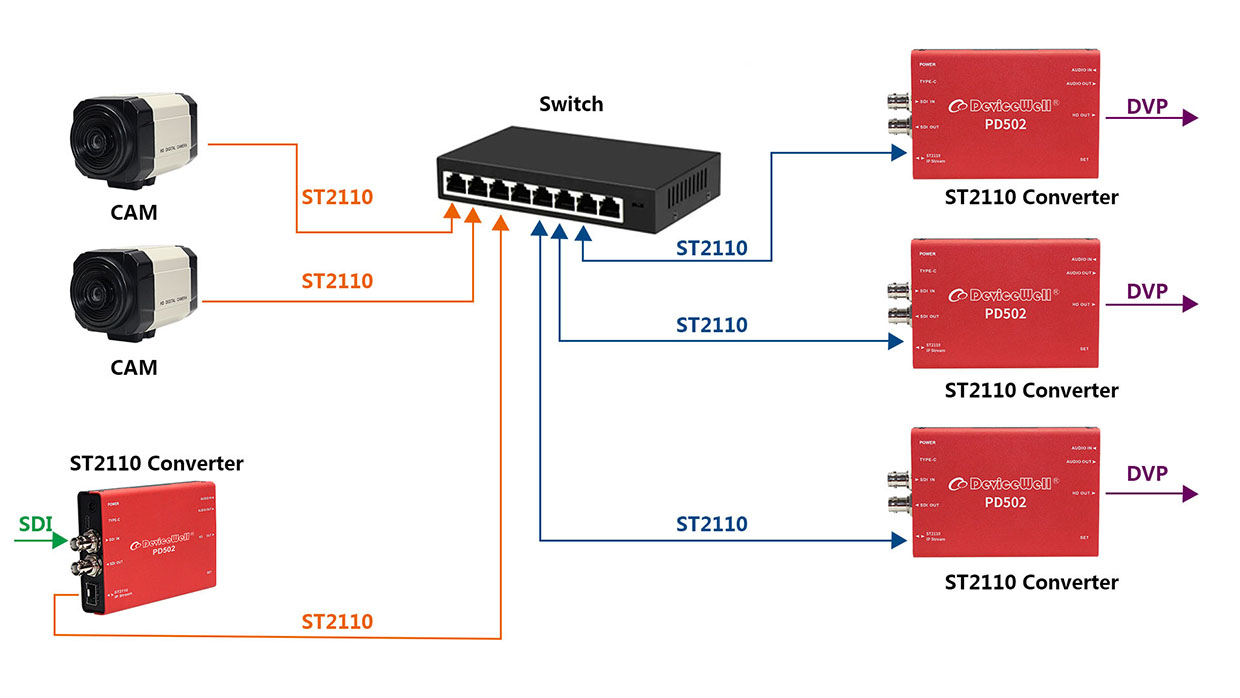

Application 4：Switch network connection application

Application 5：DeviceWell has a variety of SMPTE - 2110 IP video products, including converters, video monitors, image splitters, switchers and cameras. These devices use low-cost 10G Ethernet and support HD signal, The converter models include one-way and Bidi transmission. You can use them on the camera according to your production needs. It is easy to install and solves the complicated problems of traditional wiring!



Downloading the instructions of the PD502 SDI/DVP/ST2110 Bidi Converter of Devicewel

Serial No.	Material name	Version	modification date	Description/Remarks
1	PD502 Specification Download	1.0	May. 20, 2025
2	PD502 Photos Download	1.0	May. 20, 2025
3	Others



DeviceWell ST2110 Document Download
