Product Introduction

A dedicated ST2110 and4K/12G SDI/DVP bidirectional video converter. The device integrates SDI receiving module and ST2110 encoding module, which can convert 12G/3G/HD SDI signals into uncompressed ST2110 IP streams. At the same time, it can also receive ST2110 IP streams, decode and output them to DVP video ports, and DVP supports frequency conversion. The device supports point-to-point IP stream signal transmission, and also supports "multicast" and "broadcast" streams for video distribution and scheduling through network switches. SDI input supports up to 12Gb and is backward compatible with 1.5Gb. DVP output supports up to 2160P 60Hz, and is backward compatible with 1080I and 720P signals. ST2110 has a maximum bit rate of 10Gb, is backward compatible with 2.5Gb, and has a total bandwidth of 20 Gb in bidirectional mode. The ST2110 bidirectional video converter can process bidirectional ST 2110 video streams at the same time, and with network switches as relays, it can realize IP video exchange, distribution and forwarding of large-capacity uncompressed videos. Using network relay/wireless relay, long-distance uncompressed video transmission can be achieved. ST2110's low latency, no compression and 100% color reproduction performance can be widely used in broadcasting, real-time conferencing, medical imaging and industrial machine vision.

Features

◆ Support bidirectional ST2110 IP stream processing

◆ IP stream bidirectional bandwidth 10Gb

◆ Uncompressed video encoding, 100% color restoration

◆ Support multicast and broadcast physical layer settings

◆ SDI input supports up to 12Gb and is backward compatible with 1.5Gb

◆ SDI input rate adaptation

◆ DVP output supports up to 2160P 60Hz, and is backward compatible with 720P, etc.

◆ DVP output supports pass-through mode and variable frequency mode (FRC)

◆ DVP output can select seamless output and still frame

◆ Support USB upgrade

◇ Special functions can be customized

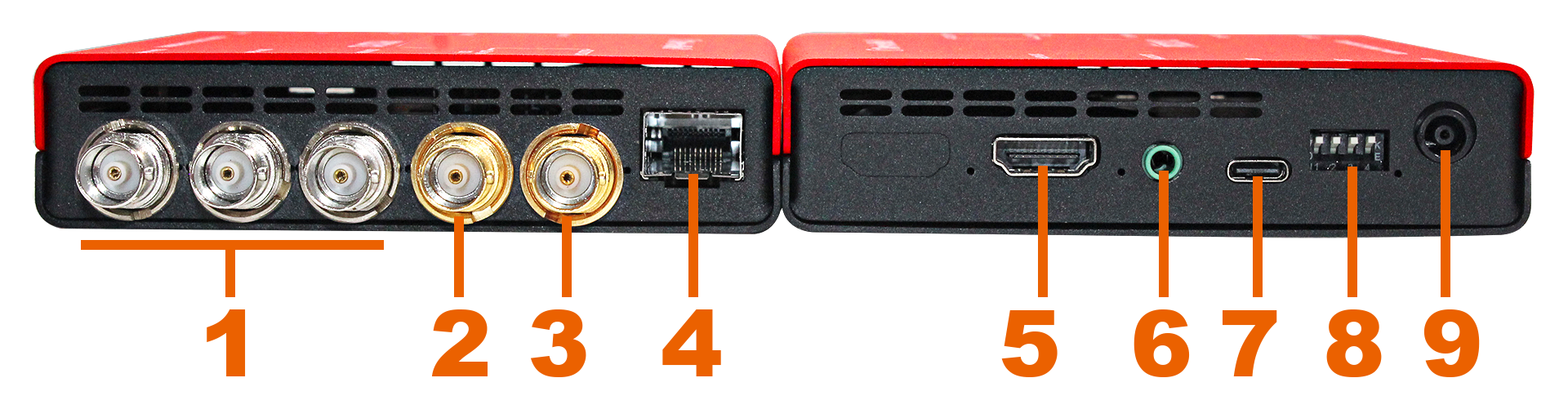

Interface Description

No.	Definition	Description
1	SDI IN	Reserved
2	SDI IN	12G SDI IN
3	SDI OUT	12G SDI LOOP
4	SFP port	10Gb/s
5	DVP OUT	DVP out
6	Audio port	Reserved
7	Type C port	Type C upgrade
8	DIP	Reserved
9	Power supply	DC 5V-12V

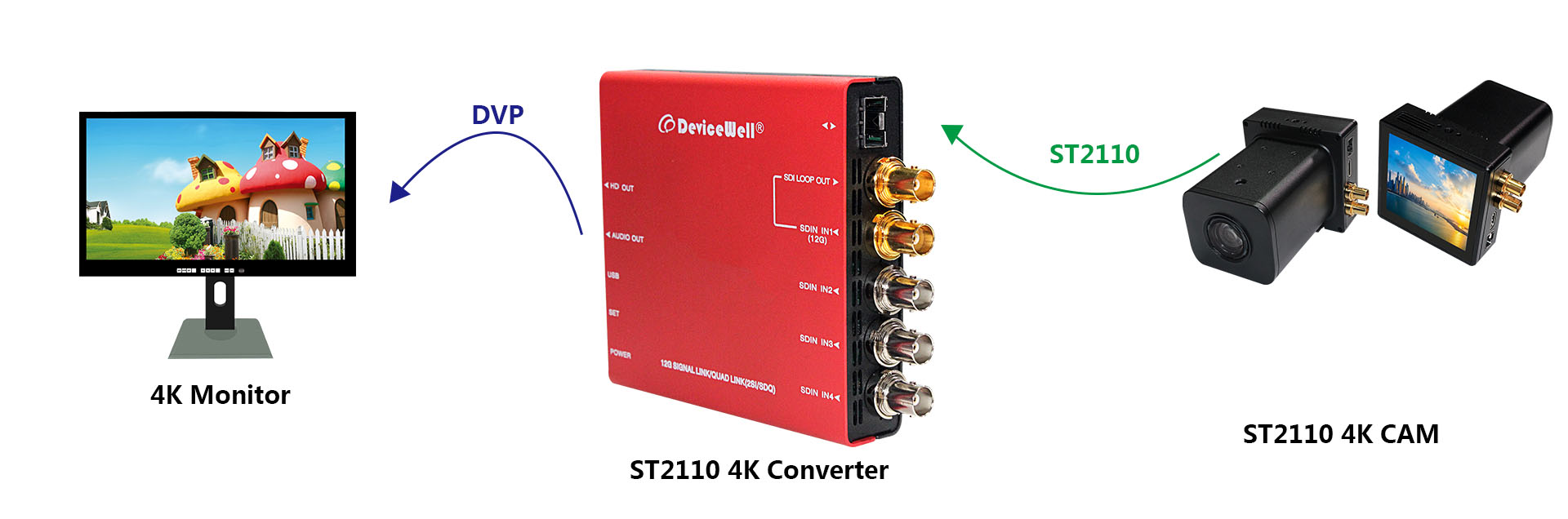

Application 1：ST2110 to DVI PTP application

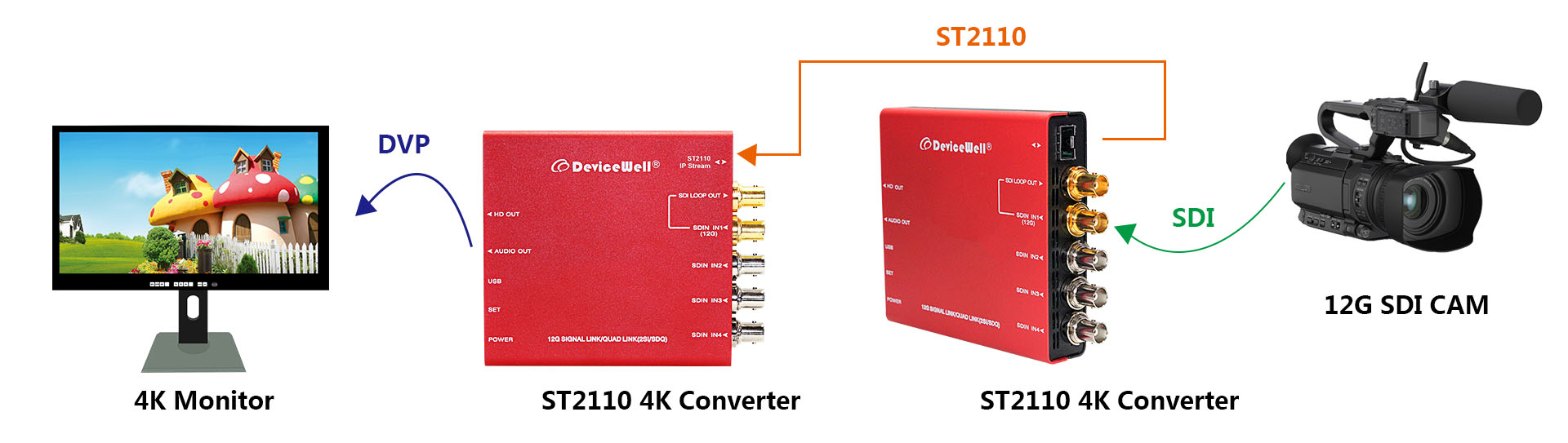

Application 2：SDI to ST2110 PTP application

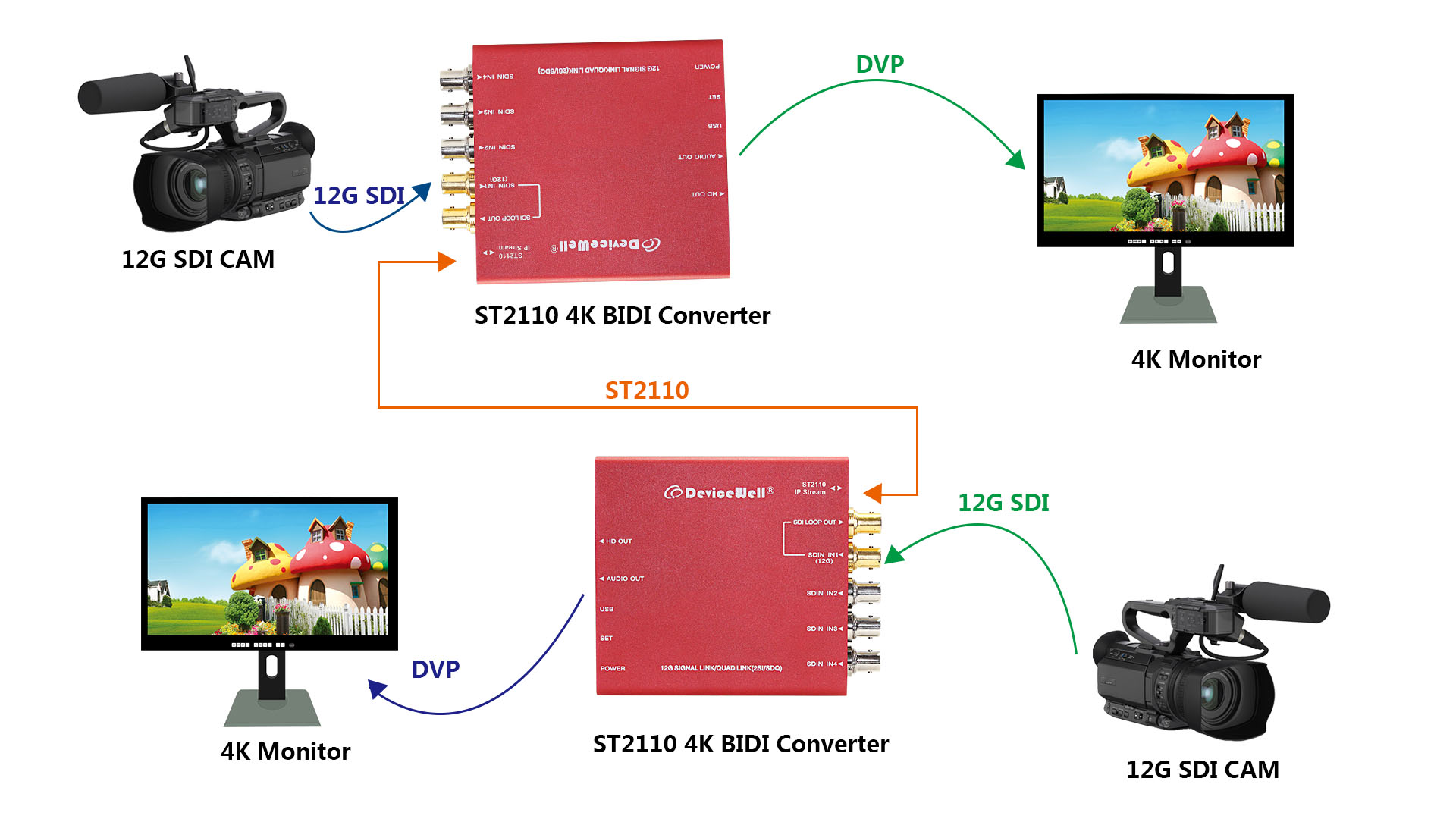

Application 3： SDI/DVP/ST2110  PTP BiDi application

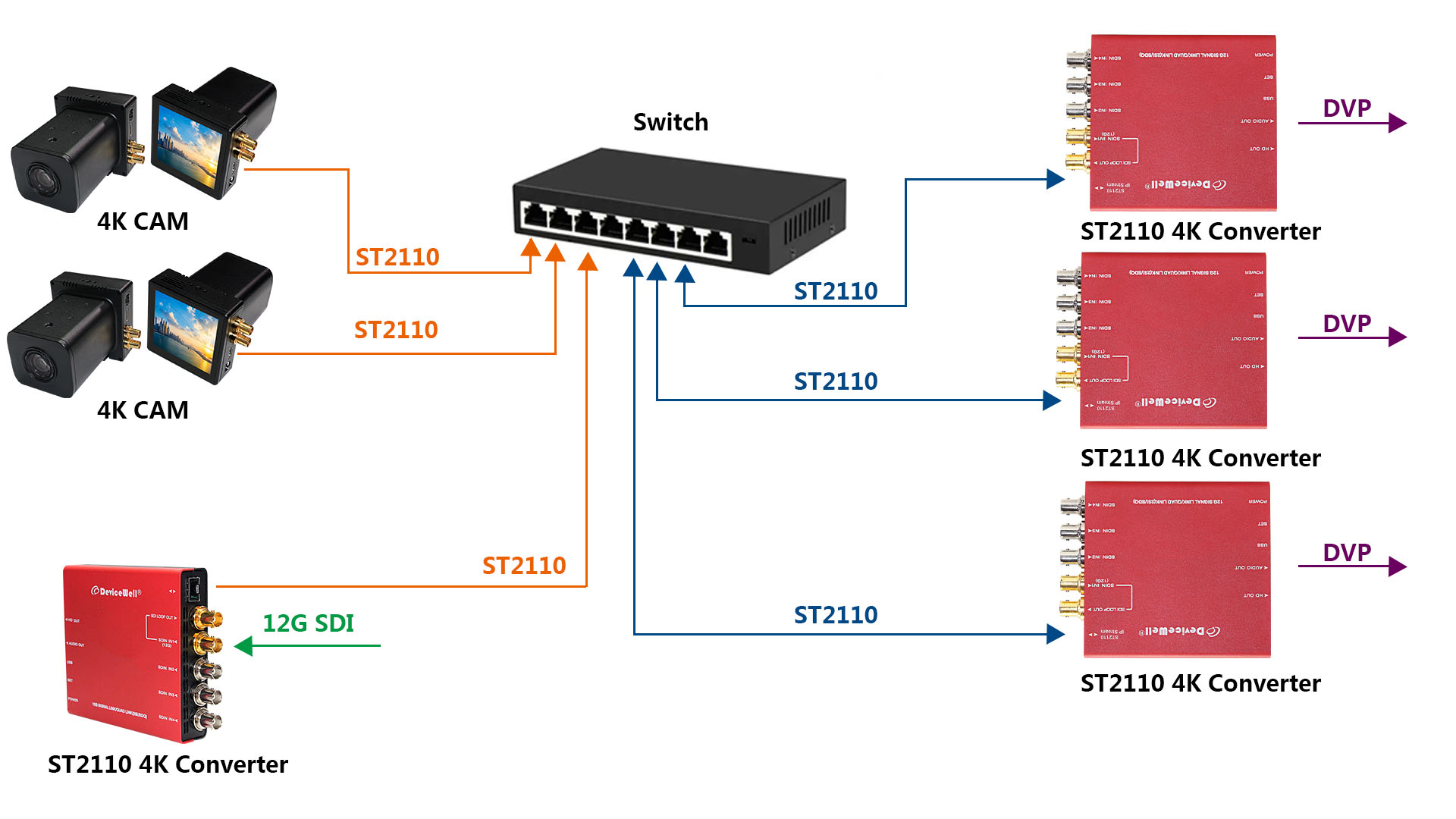

Application 4：Switch network connection application

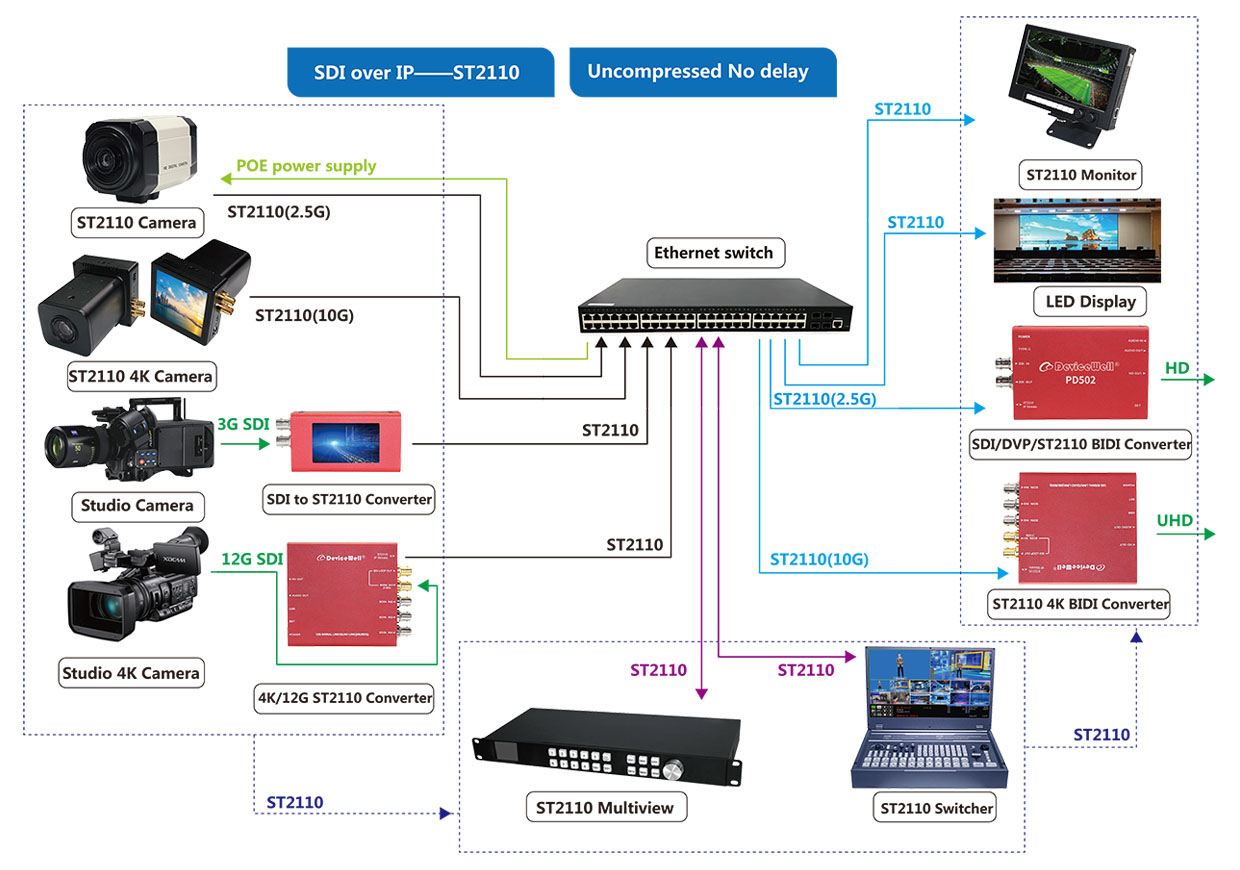

Application 5

DeviceWell has a variety of SMPTE - 2110 IP video products, including converters, video monitors, image splitters, switchers and cameras. These devices use low-cost 10G Ethernet and support HD signal, The converter models include one-way and Bidi transmission. You can use them on the camera according to your production needs. It is easy to install and solves the complicated problems of traditional wiring!



Product Parameters

Product name	ST2110 Converter
Model	PD503
SDI Video Input/Output	Signal	SDI signal
	Connector	BNC complies with IEC169-8 standard
	Bit rate	1.5Gbps~12Gbps
	Signal amplitude	800mV±10%(75Ω)
	Impedance	75Ω
ST2110 Input/Output	Output signal	10Gb
	Port	SFP
	IP video specification	SMPTE-2110-20 Uncompressed video SMPTE-2110-21 Timing SMPTE-2110-30 Audio SMPTE-2110-40 Ancillary Data
DVP Video Output	Output signal	DVP video signal
	Connector	DVP
	Signal amplitude	800mV±10%(100Ω)
	Impedance	100Ω
General parameters	Power supply	DC 5-12V
	Power	<2W
	Size	126X 109 X 25mm
	Control panel	Digital DIP switch
	Weight	0.5Kg
	Operating temperature	0℃~50℃ No condensation
	Storage temperature	-20℃~75℃
	Operating humidity	20%~70%RH
	Storage humidity	0%~90%RH， No condensation
